PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	700 x 680 x 750 mm
Stacking or nesting clearance	Not stackable
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	12 kg
Rated static load	160 kg
Recommended user weight	120 kg
Seating capacity	1 person
Seat foam density	35 kg/m3
Back foam density	28 kg/m3
Foam rebound	40%
Seat front edge load deflection	40%
Metal tube static load target	1,000 kg downward frame test
Floor-slide durability target	20,000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer tub shell	Curved upholstered wood-composite or molded plywood shell with soft facing
Seat cushion	90 mm polyurethane foam pad with removable or fitted fabric cover
Back and arm padding	20 mm polyurethane foam over the molded tub shell
Visible upholstery	Woven fabric or matte faux leather in orange, yellow, beige, wine red and navy blue
Seam construction	Single perimeter seam with 80 mm stitch pitch
Sled base	12 mm diameter chrome-plated steel wire formed into a splayed four-runner sled frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated arm and back support	Continuous wraparound tub shell provides side arm support and a 320 mm low back without adjustable parts.
Fixed relaxed posture	Non-reclining seat set at 430 mm high with an upright lounge angle suited to short meetings and waiting areas.
Stable sled support	Two continuous side wire frames spread floor loads and allow limited repositioning by lifting rather than rolling.
Floor protection	Polymer end glides on the exposed metal runners reduce scratching on tile, polished stone and resilient floors.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office reception and lounge zones	Use in waiting areas, collaboration corners and visitor seating where compact tub chairs provide visual color coordination.
Hospitality and breakout spaces	Suitable for cafes, club lounges and casual meeting points because the sled base supports frequent relocation and the enclosed shell offers compact comfort.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety and structural reference	EN 16139

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Contract seating reference	ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Strength and durability reference	GB/T 10357.3

Standardized tender description text

This product must meet the following technical requirements:
1. Strength and durability reference: GB/T 10357.3;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LCH-TUB-SLED-700

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LCH-TUB-SLED-700

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LCH-TUB-SLED-700Open Export Tool

Quick Actions

Post an RFQ

Product Description

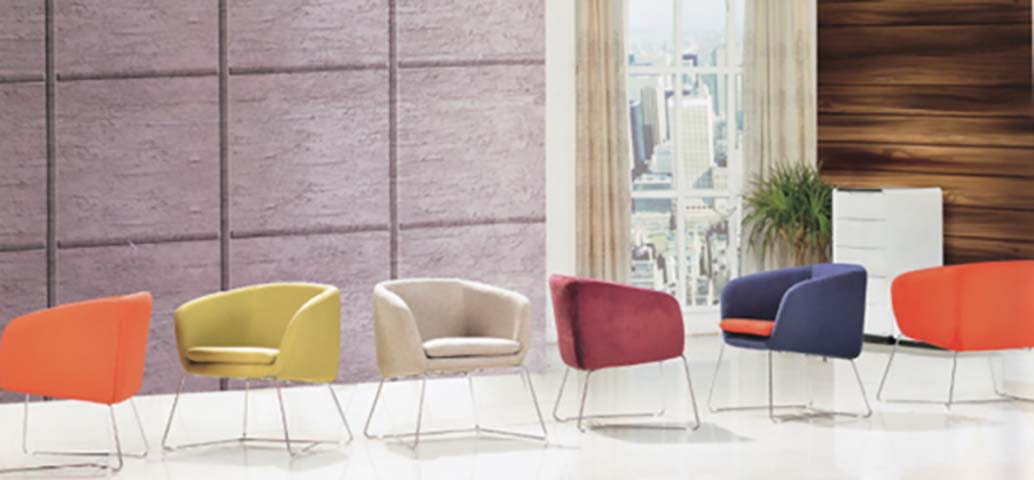

The Upholstered Tub Lounge Chair with Chrome Sled Base is a compact one-person lounge seat with a modern, enclosed profile. Model LCH-TUB-SLED-700 is offered unbranded and measures 700 mm wide, 680 mm deep and 750 mm high. Its continuous tub shell wraps around the sitter to form a curved low back and integrated arms, giving the chair a smooth, streamlined appearance and a clear width of 540 mm between armrests. The polished chrome wire sled base adds a light visual counterpoint to the softly upholstered body, while splayed runners broaden the chair’s footprint. Upholstery is available in woven fabric or matte faux leather in orange, yellow, beige, wine red and navy blue, supporting coordinated color schemes in commercial interiors. The chair is built around a curved upholstered wood-composite or molded plywood shell with a soft facing. The seat uses a 90 mm polyurethane foam pad with a density of 35 kg/m3 and a removable or fitted fabric cover. Back and arm areas have 20 mm polyurethane foam over the molded shell, with back foam density of 28 kg/m3 and foam rebound of 40 percent. Backrest padding is 70 mm thick, and the lumbar support zone is 240 mm high. Upholstery is finished with a single perimeter seam using an 80 mm stitch pitch. The base is made from 12 mm diameter chrome-plated steel wire formed into a splayed four-runner sled frame, with polymer end glides on exposed metal runners. Designed for fixed, relaxed seating rather than reclining, the chair has a 430 mm high seat set at an upright lounge angle. The wraparound shell provides side arm support and a 320 mm low back without adjustable components. It is suited to short meetings, waiting and casual breaks. The sled frame spreads floor loads and allows limited repositioning by lifting, rather than rolling, while the glides help reduce scratching on tile, polished stone and resilient floors. The chair is not stackable, has a net weight of 12 kg, a rated static load of 160 kg and a recommended user weight of 120 kg. Typical settings include office reception areas, lounge zones, collaboration corners, visitor seating, cafés, club lounges and breakout or casual meeting points. For procurement planning, each set ships in two cartons with a packaged gross weight of 23 kg and carton volume of 0.26 cubic meters. Reference carton dimensions are 850 by 420 by 720 mm, assembly time is 40 minutes per set, and the indicative 20GP loading is 135 sets at 85 percent space utilization.

Upholstered Tub Lounge Chair with Chrome Sled Base Specifications
