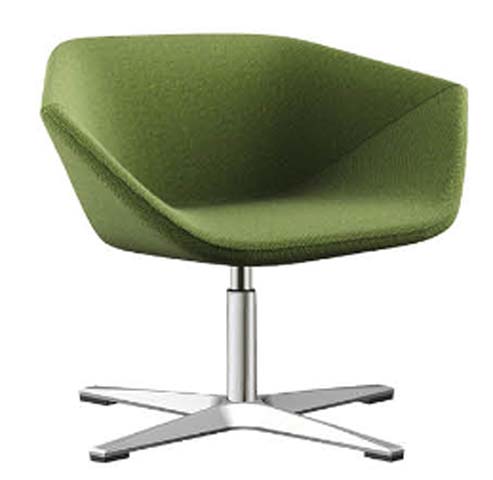

Product supplierSwivel Upholstered Tub Lounge Chair with Four-Star Metal Base, Green woven textile with a tight visible grain over the entire tub shell
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 720 × 680 × 780 mm | |
|---|---|---|
| Overall dimensions | 720 x 680 x 780 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 135 kg | |
|---|---|---|
| Static seat proof load target | 205 kg | |
| Net weight reference | 13.5 kg | |
| Seating capacity | 1 person | |
| Recommended daily-use duration | 4 hours | |
| Swivel rotation | 360 degrees | |
| Back structure lateral support | Continuous four-sided tub shell | |
| Base stability tip resistance | 10-degree lateral tilt test target | |
| Fabric abrasion acceptance target | 50,000 Martindale cycles | |
| Foam indentation hardness | 38 kg/m3 seat foam at 120 N ILD |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Green woven textile with a tight visible grain over the entire tub shell | |
|---|---|---|
| Seat cushion | 90 mm high-resilience polyurethane foam over a structural seat board | |
| Back and arm padding | 55 mm polyurethane foam at 35 kg/m3 laminated around the molded inner shell | |
| Inner load shell | 8 mm molded plywood or glass-fiber-reinforced composite bucket with integral arm curves | |
| Seat support board | 12 mm moisture-resistant plywood or engineered-composite panel fixed beneath the cushion | |
| Pedestal column | 60 mm diameter polished chrome-plated steel tube with 2 mm wall thickness |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| 360-degree swivel | Central pedestal bearing rotates the seat through 360 degrees with no visible height or tilt control. | |
|---|---|---|
| Fixed lounge height | Seat remains at 430 mm front height because no gas-lift actuator or height lever is visible. | |
| Integrated wraparound arms | Continuous shell arms provide 180 mm side support above the seat for relaxed seating. | |
| Tub-back side enclosure | Back and arms form a 700 mm wide enveloping surround for lateral upper-body support. |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive lounge or reception area | Use one chair per visitor in a 1,200 mm seating zone for short waiting and informal conversation. | |
|---|---|---|
| Hotel lobby or guest seating | Group with low tables at 500 mm height to support the 430 mm fixed lounge seat. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
