PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed static desktop load	120 kg total
Single work zone load	30 kg
Pedestal top load	25 kg
Lower shelf load	15 kg
Drawer rated load	10 kg
Pedestal mobility	4 swivel glide feet per cabinet
Recommended occupancy	4 users
Net weight reference	165 kg
Seat pitch between facing users	1100 mm
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	Dark matte laminate panel, 30 mm thick, with black impact-resistant edge banding
Divider screen	Beige upholstered panel over a composite board core, 35 mm thick
Support legs	Tapered black powder-coated steel tubes with brass-colored lower sleeves
Cable rail and screen posts	Black powder-coated round steel rail and vertical support posts
Pedestal carcass	Beige finished board panels with black horizontal recessed pulls and edge trim
Hardware and feet	Black plastic or nylon glides with small metallic support tips

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-user modular layout	Two adjacent desktop bays provide four face-to-face work positions for benching installations
Low privacy screening	Beige upholstered panels separate facing users while retaining sightlines across the office
Central cable management	A black horizontal rail under each screen provides cable retention and a visible cable outlet near each laptop position
Integrated under-desk storage	Each work zone is paired with a shallow upper drawer, lower cabinet door and adjacent open shelf

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaging method	Flat-panel cartons with foam corner protection and labeled hardware packs
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan four-person team workspace	Suits shared office departments requiring paired seating, privacy screens and personal under-desk storage
Managerial or executive staff cluster	Dark laminate, beige upholstery and brass-tipped legs fit premium office interiors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-DS-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-DS-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-DS-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

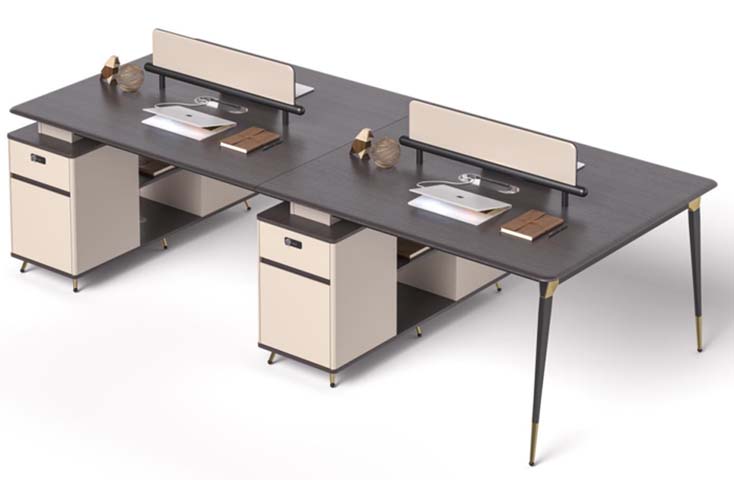

The Four-Person Modular Workstation with Screens and Under-Desk Pedestals presents a structured benching solution for collaborative office environments. Its layout consists of two adjacent desktop bays arranged in a face-to-face configuration, providing four individual work positions within a shared footprint. Beige fabric-covered divider panels run between opposing users, offering low-level privacy while preserving open sightlines and a sense of connection across the workspace. Dark matte laminate work surfaces contrast with the beige upholstered screens, while black powder-coated steel legs, rails, and posts create a consistent visual framework. Tapered legs with brass-colored lower sleeves add a refined accent suited to both contemporary and premium interiors. Construction combines durable board materials with a painted steel support structure. Each work surface uses a 50 mm finished top, specified as a 30 mm dark matte laminate panel finished with black impact-resistant edge banding. The divider screens feature a 35 mm beige upholstered panel over a composite board core. Tapered black powder-coated steel tubes support the arrangement, complemented by black powder-coated round cable rails and vertical screen posts. Under-desk pedestals are constructed from beige finished board with black edge trim and horizontal recessed pulls. Each cabinet rests on four swivel glide feet with black plastic or nylon glides and small metallic support tips. Functionality is centered on shared usability and individual storage. A black horizontal rail beneath each screen retains cables and provides a visible outlet close to each laptop position, supported by an 80 mm cable opening and a cable tray with 120 mm depth. Every work zone is paired with integrated storage comprising a shallow upper drawer, a lower cabinet door, and an adjacent open shelf. The configuration supports a distributed static desktop load of 120 kg in total, with each work zone rated for 30 kg. Pedestal tops support 25 kg, lower shelves 15 kg, and drawers 10 kg. Each main seat offers 680 mm high and 900 mm wide effective knee clearance. This workstation is well suited to open-plan team areas, shared departments, and four-person project clusters that benefit from paired seating, screening, and personal storage. Its material palette also makes it appropriate for managerial or executive staff clusters in polished office settings. Procurement planning should account for modular installation, under-desk pedestal placement, and cable routing requirements. The product is supplied unbranded under model WS-4P-DS-2800 and ships in flat-panel cartons with foam corner protection and labeled hardware packs. Assembly time is referenced at 40 minutes per set; buyers should confirm final carton count and delivery details directly, as packaging records include both a two-carton reference and separate logistics information listing four cartons at 180 kg packaged gross weight and 1 cubic meter per set.
