PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	4 persons
Distributed worktop load	160 kg total
Concentrated worktop load	40 kg per workstation
Pedestal drawer load	15 kg per drawer
Open shelf load	20 kg per shelf
product net weight	145 kg
Hardware cycle rating	50,000 drawer operations
Leg assembly static stability	320 kg total downward load
Worktop surface duration	5-year commercial-use target
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm dark wood-grain melamine-faced board with matching sealed edgeband
Divider panel	Beige soft-touch or fabric-wrapped panel over 25 mm board substrate
Central storage cabinet	Beige melamine-faced panel cabinet with dark top and black recessed drawer pull
Outer support legs	Powder-coated tapered steel legs with brass-colored decorative lower sleeves
Cabinet support feet	Small black-and-brass adjustable or fixed leveling feet
Hardware	Steel drawer slides, connector brackets and black mounting posts

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating arrangement	Four users work face-to-face in two paired bays separated by two low central panels
Cable routing	Laptop and monitor cables route from the worktop toward the black tubular rail and center channel
Storage layout	One lockable-looking upper drawer, lower drawer space and side open cubby occupy the shared central pedestal
Screen privacy	Low divider panels provide seated visual separation while preserving cross-desk communication

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total gross weight	165 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for four employees in sales, administration or project teams where paired seating and central filing are required
Project or procurement workspace	Supports laptops, documents, small books and shared storage while the low panels preserve visual contact

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS4-CT-2800-CAB

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS4-CT-2800-CAB

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS4-CT-2800-CABOpen Export Tool

Quick Actions

Post an RFQ

Product Description

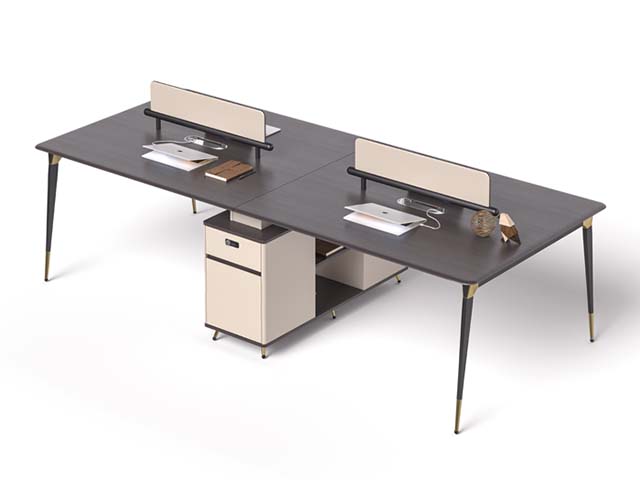

The Four-Person Face-to-Face Office Workstation combines a structured communal layout with a restrained contemporary palette suited to modern office interiors. Model WS4-CT-2800-CAB is arranged for four users in two paired bays, with occupants seated face-to-face across a dark wood-grain worktop. Two low beige central divider panels provide seated visual separation without closing off conversation, helping maintain privacy for screens and documents while preserving easy cross-desk communication. Tapered powder-coated steel legs support the outer work areas, with brass-colored decorative lower sleeves adding a refined accent. The central pedestal introduces a contrasting beige cabinet body, dark top, black recessed drawer pull, and small black-and-brass leveling feet. Construction uses a 25 mm dark wood-grain melamine-faced worktop with matching sealed edgebanding, giving a finished top thickness of 50 mm. Divider panels are formed with a 25 mm board substrate and a beige soft-touch or fabric-wrapped surface. Storage is provided in a melamine-faced central pedestal featuring an upper drawer with a lockable appearance, lower drawer space, and a side open cubby. Steel drawer slides, connector brackets, black mounting posts, and painted steel supports contribute to the workstation’s commercial furniture character. Functional planning includes integrated cable routing from laptop and monitor positions toward a black tubular rail and center channel. The cable opening is 80 mm in diameter, paired with a cable tray depth of 120 mm. Each main seat offers 680 mm high and 900 mm wide effective knee clearance. The layout supports laptops, documents, small books, and shared filing while keeping frequently used items within the central zone. Rated use is for four persons, with a distributed worktop load of 160 kg total, a concentrated load of 40 kg per workstation, 15 kg per drawer, and 20 kg per open shelf. The drawer hardware is rated for 50,000 operations. This workstation is appropriate for open-plan sales, administration, and project-team areas, as well as project or procurement workspaces that need paired seating and central storage. It is unbranded, making it suitable for standardized interiors where a coordinated neutral appearance is preferred. Procurement teams should plan for a 145 kg net product weight, multi-carton delivery, and assembly time of 40 minutes per set. Access, floor protection, desk placement, and cable outlet positions should be checked before installation. Storage needs, screen privacy preferences, and the balance between focused work and team interaction should also guide specification.

Four-Person Face-to-Face Office Workstation with Central Screens and Storage Pedestal Specifications
