Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 2800 x 1400 x 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Total worktop static load capacity | 600 kg | |
|---|---|---|
| Product net weight (complete set) | 210 kg | |
| Recommended maximum user weight per seat position | 120 kg | |
| Worktop surface abrasion resistance (recommended acceptance) | 2000 cycles | |
| Drawer slide operation cycle rating (recommended acceptance) | 50000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Worktop panel | 25mm E1-grade particleboard with matte white melamine finish | |
|---|---|---|
| Support legs | 1.5mm thick powder-coated matte silver steel, angled A-frame design | |
| Desktop privacy dividers | 18mm MDF with warm walnut wood-grain melamine finish | |
| Mobile pedestal carcass | 0.8mm thick cold-rolled steel with matte white powder coating | |
| Pedestal drawer handles | Thin brushed orange-brown metal trim integrated to drawer front | |
| Drawer locks | Keyed cam lock with black plastic escutcheon | |
| Pedestal casters | 30mm diameter black nylon swivel casters, 4 per unit | |
| Divider mounting clips | Orange-brown ABS plastic clips securing divider to worktop | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features

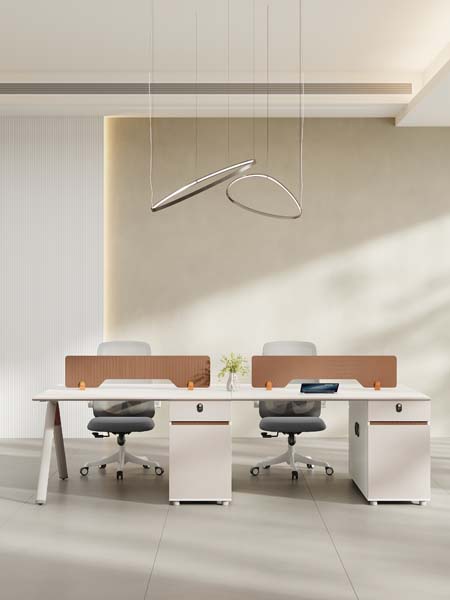

| Face-to-face 4-person seating layout | Supports two pairs of opposing users for collaborative team workspaces | |
|---|---|---|
| Desktop privacy dividers | Blocks direct line of sight between opposite seated users to reduce distraction | |
| Lockable mobile storage pedestals | Includes two rolling pedestals with 2 drawers each, key-locked top drawer for personal document security | |
| Cable management channel access | Recessed gap under divider mounts allows routing of power and data cables along worktop center | |
| Freestanding assembled structure | No permanent floor fixing required, can be repositioned as office layout changes | |
| Smooth drawer extension | Full-extension side-mounted slides allow full access to drawer contents without binding | |
| Leveling adjustment on leg bases | Threaded foot pads compensate for minor unevenness in finished office floors | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Open-plan corporate office areas | Provides dedicated individual work space with partial privacy for team departments | |
|---|---|---|
| Small startup team workspaces | Flexible freestanding layout fits rented office spaces without permanent modification | |
| Government and institution back offices | Neutral color scheme and lockable storage meets administrative office requirements | |
| Training and co-working facilities | Standard dimensions support flexible hot-desking arrangements for rotating users | |
| Recommended paired seating | Mid-back mesh ergonomic office chairs with adjustable height to match 750mm worktop |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable for structural performance acceptance | |
|---|---|---|
| EN 1335-1:2020 | Office chair dimensional reference, for matching compatible seating to workstation | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to mobile pedestal units |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, recommended for structural durability acceptance | |
|---|---|---|
| ANSI/BIFMA X5.1-2017 | Office chair performance reference, for compatible seating selection | |
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to mobile pedestal testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel quality acceptance | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel leg and pedestal acceptance | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required for indoor office air quality |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel quality acceptance; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel leg and pedestal acceptance; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required for indoor office air quality; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
