Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1980 × 850 × 780 mm | |
|---|---|---|
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Sofa net weight range | 55 kg | |
|---|---|---|
| Total static seating load capacity | 450 kg | |
| Recommended seating capacity | 3 adults | |
| Foam density (seat cushion) | 40 kg/m³ | |
| Foam density (backrest) | 28 kg/m³ | |
| Foam rebound rate | 45% | |
| Upholstery abrasion resistance (Martindale) | 50000 cycles | |
| Seam stitch pitch | 8 stitches per 30mm | |
| Suggested warranty period | 3 years | |
| Seat foam indentation load deflection (ILD) | 55 N |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | Beige matte PVC faux leather | |
|---|---|---|
| Seat cushion core | High-density polyurethane foam | |
| Backrest core | Medium-density polyurethane foam | |
| Internal frame | 18mm thick engineered hardwood/plywood frame | |
| Support feet | Brushed finish chrome-plated steel feet | |
| Suspension system | Sinuous steel spring seat support | |
| Back tufting structure | Stitched grid tufting with uniform square panels | |
| Stitching thread | High-tenacity polyester stitching thread | |
| Upholstery | 1.0mm thick matte beige PVC faux leather, stain-resistant non-porous finish | |
| Internal structural frame | 18mm thick E0 grade engineered plywood, 12% maximum moisture content, joined with steel staples and wood glue | |
| Seat suspension system | 3.8mm diameter sinuous steel springs, spaced 100mm apart, secured with 2mm steel clips | |
| Back and seat tufting | Stitched grid tufting, 150mm square panel size, matching beige polyester thread |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Fixed 3-seat layout with integrated padded armrests | |
|---|---|---|
| Surface maintenance | Stain-resistant non-porous upholstery surface | |
| Floor protection | Padded glides fitted to base of each metal foot | |
| Structural stability | Four-point outrigger foot design | |
| Tufting function | Fixed stitched tufting prevents upholstery shift | |
| Assembly requirement | Knock-down delivery with tool-based leg attachment | |
| Tipping resistance | Four-point outrigger foot design, feet positioned 80mm outward from sofa frame perimeter | |
| Tufting retention | Fixed stitched grid tufting, secured through foam and frame backing | |
| Assembly design | Knock-down delivery, legs attach via pre-installed M8 threaded inserts on the sofa base | |
| Cleaning access | 60mm vertical clearance under sofa base, with no floor-mounted enclosure | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 1 | |
|---|---|---|
| Shipping carton dimensions | 2050 x 900 x 650 mm | |
| Gross shipping weight | 65 kg | |
| Packaging volume (CBM) | 1.2 CBM | |
| On-site assembly time | 20 minutes | |
| 40ft HQ container loading quantity | 54 units | |
| Interior packaging materials | EPE foam wrap + corner protectors + polybag | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.

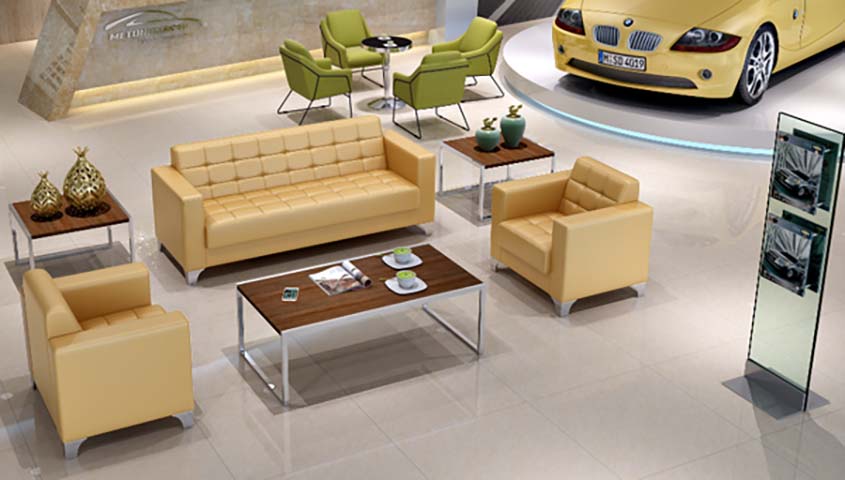

| Auto showroom reception areas | Coordinates with matching single seats and coffee tables to create cohesive visitor waiting spaces in automotive dealerships | |
|---|---|---|
| Corporate office lobbies | Provides formal, durable guest seating for building entrance and waiting zones | |
| Bank and service center waiting areas | Upright seating position supports short-duration waiting for customers during service visits | |
| Hotel public lounge areas | Matches light neutral decor schemes for hotel lobby casual seating zones | |
| Coordinating furniture set | Pairs with matching beige single-seat sofas, walnut-veneer metal-frame coffee tables, and chrome-framed side tables to create complete reception sets | |
| Available color options | 2 standard colors (beige, light olive green) | |
| Automotive 4S store reception areas | Pairs with matching single-seat armchairs and wood-veneer coffee tables to create cohesive visitor waiting zones aligned to premium dealership design standards | |
| Corporate office lobby waiting zones | Provides durable formal guest seating for building entrance and visitor check-in areas |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Applicable seating safety standard | EN 16139:2013 Furniture - Strength, durability and safety for non-domestic seating | |
|---|---|---|
| Applicable upholstery fire standard | EN 1021:2014 Upholstered furniture - Ignitability assessment - Part 1: Smouldering cigarette | |
| Non-domestic seating safety standard | EN 16139:2013 Furniture - Strength, durability and safety for non-domestic seating | |
| Upholstery ignitability standard | EN 1021:2014 Upholstered furniture - Ignitability assessment - Part 1: Smouldering cigarette | |
| Formaldehyde emission standard | EN 13986:2004 Wood-based panels for use in construction - Characteristics, evaluation of conformity and marking |
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Applicable seating performance standard | ANSI/BIFMA X2021Lounge and Public Seating | |
|---|---|---|
| Lounge seating performance standard | ANSI/BIFMA X2021Lounge and Public Seating |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Applicable safety standard | GB/T 3324General technical requirements for wooden furniture | |
|---|---|---|
| Applicable upholstery standard | GB/T 16799Furniture use artificial leather | |
| Applicable harmful substance limit | GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | |
| Wood furniture safety standard | GB/T 3324General technical requirements for wooden furniture | |
| Artificial leather upholstery standard | GB/T 16799Furniture-use artificial leather | |
| Harmful substance emission standard | GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood-based furniture |
This product must meet the following technical requirements: 1. Applicable safety standard: GB/T 3324General technical requirements for wooden furniture; 2. Applicable upholstery standard: GB/T 16799Furniture use artificial leather; 3. Applicable harmful substance limit: GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture; 4. Wood furniture safety standard: GB/T 3324General technical requirements for wooden furniture; 5. Artificial leather upholstery standard: GB/T 16799Furniture-use artificial leather; 6. Harmful substance emission standard: GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood-based furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
