Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1900 x 800 x 780 mm | |
|---|---|---|
| Seat height from floor | 450 mm | |
| Single seat width | 600 mm | |
| Seat depth from front edge to backrest | 550 mm | |
| Armrest height from floor | 620 mm | |
| Backrest height from seat surface | 380 mm | |
| Armrest width | 120 mm | |
| Leg height from floor | 100 mm | |
| Seat cushion thickness | 120 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Net weight per sofa | 55 kg | |
|---|---|---|
| Total static load capacity | 360 kg | |
| Seat foam density | 40 kg/m³ | |
| Backrest foam density | 30 kg/m³ | |
| Fabric abrasion resistance | 50000 double rubs | |
| Recommended seated users | 3 people | |
| Foam rebound rate | 55% | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
Core acceptance fields · Panels / hardware / frame / upholstery
| Upholstery material | Beige smooth faux leather (PU leather) | |
|---|---|---|
| Seat cushion core | High-density polyurethane foam, wrapped with soft polyester fiber | |
| Backrest core | Medium-density polyurethane foam with grid tufting channels | |
| Inner load-bearing frame | Kiln-dried solid hardwood + 12mm plywood reinforcement | |
| Support legs | Chrome-plated polished steel splayed legs, 1.5mm wall thickness | |
| Structural hardware | Zinc-plated steel bolts, corner blocks at frame joints | |
| Seat support base | 4mm thick sinuous spring support with polyester webbing | |
| Seam finish | Double-stitched seams at all panel edges, 8mm stitch pitch | |
| Floor contact pads | Non-marking nylon glides pre-installed on leg bases | |
| Frame moisture content | 12% | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | 3 fixed equally divided seat positions, no recline or adjustment functions | |
|---|---|---|
| Backrest design | Grid box-tufted fixed backrest, segmented into 18 padded square panels | |
| Armrest structure | Wide padded block armrests integrated with the outer frame, no moving parts | |
| Installation design | Knock-down assembly, legs attach to pre-installed threaded inserts on frame base | |
| Floor protection | Non-marking plastic glides pre-installed on leg bottoms | |
| Cleaning performance | Stain-resistant faux leather surface, wipeable with neutral detergent | |
| Stability design | Widely splayed front and rear legs, 20mm adjustable glide tolerance for uneven floors | |
| Assembly design | Knock-down construction, legs attach to pre-installed threaded inserts on frame base | |
| Floor adaptability | Glides with 20mm adjustable height tolerance for uneven tiled or wood flooring | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 1 piece per sofa | |
|---|---|---|
| Packed carton dimensions | 1950 x 850 x 650 mm | |
| Packed gross weight | 62 kg | |
| Packed volume per unit | 1.08 CBM | |
| Assembly time on site | 20 minutes | |
| 20ft GP container loading quantity | 24 units | |
| 40ft HQ container loading quantity | 60 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm |
Recommended spaces / users / usage modes

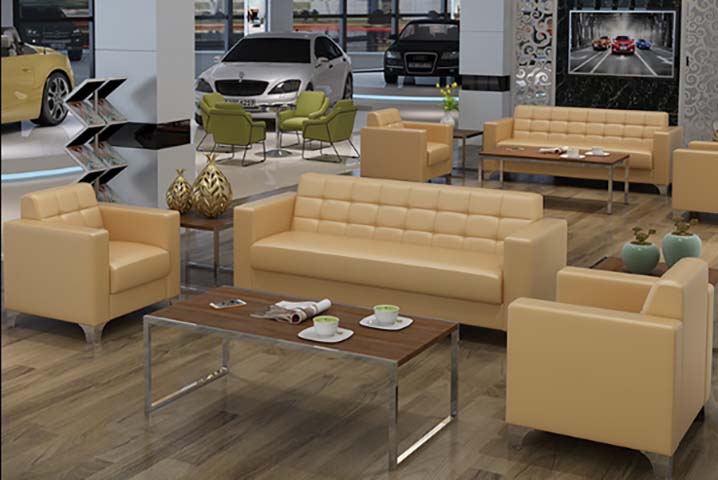

| Automotive showroom reception areas | Neutral beige finish coordinates with premium vehicle display environments, durable surface resists frequent visitor use | |
|---|---|---|
| Corporate office lobbies and waiting zones | Formal modern design suits professional visitor seating, high-capacity 3-person layout supports guest queuing | |
| Bank and public service waiting areas | Wipeable faux leather surface allows quick cleaning between visitors, robust frame supports long-term high-traffic use | |
| Hotel lounge and business center seating | Low-profile streamlined design aligns with contemporary hospitality interiors, matching single-seat units create cohesive seating groups | |
| Small business meeting break areas | Compact 1900mm width fits standard small lounge zones, comfortable padding supports extended casual meetings | |
| Bank and public service hall waiting areas | Stain-resistant faux leather surface allows quick sanitization between visitors, robust frame supports long-term high-traffic use without cushion deformation | |
| Hotel business lounge and lobby seating | Low-profile contemporary design aligns with modern hospitality interiors, modular configuration with matching armchairs and coffee tables creates cohesive seating clusters | |
| Medium enterprise informal meeting break areas | 1900mm overall width fits standard 2000mm wall sections, padded deep seat supports casual 30+ minute discussions |
EU Market Access Requirements* EN Standards
| BS EN 12520 | 2015 Furniture - Strength, durability and safety - Requirements for domestic seating: adopted as baseline reference for commercial reception seating structural performance | |
|---|---|---|
| BS EN 1021-1 | 2019 Furniture - Assessment of the ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette: recommended upholstery fire safety standard for public reception areas |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | applies to frame strength, dimensional stability and structural safety for indoor commercial use | |
|---|---|---|
| GB 20400-2006 Leather and fur - Limit of harmful matter | applies to PU faux leather upholstery hazardous substance limits for public indoor spaces | |
| GB/T 19942-2019 Furniture - Test for durability of seating | applies to cyclic load durability testing for high-traffic commercial seating |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: applies to frame strength, dimensional stability and structural safety for indoor commercial use; 2. GB 20400-2006 Leather and fur - Limit of harmful matter: applies to PU faux leather upholstery hazardous substance limits for public indoor spaces; 3. GB/T 19942-2019 Furniture - Test for durability of seating: applies to cyclic load durability testing for high-traffic commercial seating; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
