PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2000 × 850 × 780 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	58 kg
Rated total seated load	300 kg
Single-seat static load	130 kg
Recommended users	3 persons
Seat foam density	35 kg/m3
Back cushion foam density	28 kg/m3
Foam rebound	40%
Upholstery abrasion acceptance	50000 Martindale cycles
Metal frame static acceptance load	450 kg
Warranty period	36 months

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Dark gray fabric or leather-grain upholstery over padded back, arms, and seat deck
Seat cushion construction	130 mm medium-firm foam core with upholstered cover and concealed support board
Back cushion construction	Two loose 140 mm padded cushions with soft foam or fiber-filled core
Internal load frame	Steel-tube seat frame with welded or bolted cross rails beneath three seat bays
Base and legs	Black powder-coated square steel tube forming twin sled supports with vertical posts
Floor contact parts	Four polymer glide pads at exposed rail ends to protect hard flooring

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Three-seat linear lounge configuration with independent visual seat bays for reception use
Back support	Two loose padded back cushions rest against the fixed upholstered back and can be repositioned for cleaning
Base support	Twin open sled frames distribute load through front and rear vertical posts without hidden storage
Floor placement	Freestanding non-reclining sofa with gliding feet and no wall fixing, suitable for open lounge layouts

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Assembly time	30 minutes
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Commercial reception area	Suitable for executive offices, visitor lounges, and hotel reception zones where three adults can face a central coffee table
Coordinated seating layout	Pairs with matching single-seat lounge chairs and a low rectangular table to form a four-person meeting or waiting configuration

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Upholstered furniture safety recommendation	EN 1022:2018 stability test for domestic seating, applicable to the freestanding three-seat sofa
Seating durability recommendation	EN 1728:2012 seat and back strength/durability test method for commercial furniture verification
Furniture dimensional acceptance	EN 1335:2020 office furniture seating dimensions may be used as ergonomic comparison where office reception use is specified

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Lounge seating durability recommendation	Recommended references: ANSI/BIFMA E2022
Seating stability recommendation	ANSI/BIFMA X2023lounge seating stability requirements, applicable to front, rear, and side loading checks

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Furniture safety recommendation	Recommended references: GB/T 3324
Upholstered furniture flammability recommendation	GB 17927anti-flammability requirements for upholstered furniture, applicable to fabric and filling components
Formaldehyde emission recommendation	GB 18580formaldehyde emission control for wood-based panels, applicable if panel substrates are used

Standardized tender description text

This product must meet the following technical requirements:
1. Furniture safety recommendation: Recommended references: GB/T 3324;
2. Upholstered furniture flammability recommendation: GB 17927anti-flammability requirements for upholstered furniture, applicable to fabric and filling components;
3. Formaldehyde emission recommendation: GB 18580formaldehyde emission control for wood-based panels, applicable if panel substrates are used;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LOS-3S-DG-SLED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LOS-3S-DG-SLED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LOS-3S-DG-SLEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

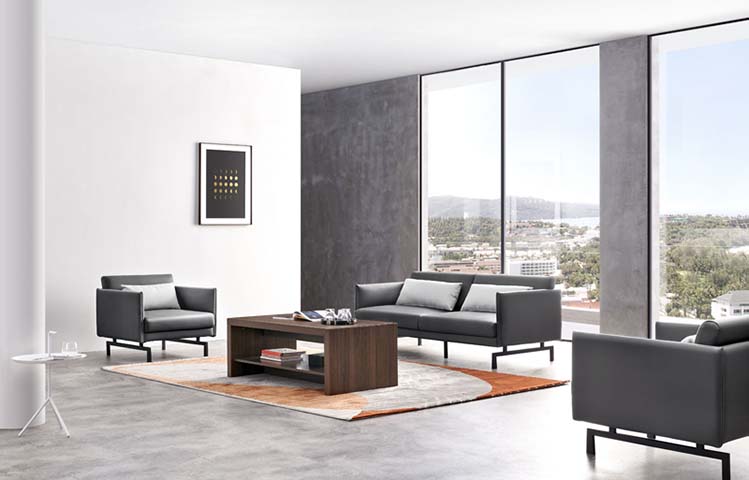

The Dark Gray Upholstered Three-Seat Reception Sofa with Metal Sled Base presents a clean modern lounge form suited to professional waiting and relaxation settings. Its linear three-seat layout uses independent visual seat bays beneath a fixed upholstered back, while padded rectangular arms give the piece a structured, welcoming silhouette. Two loose padded back cushions rest against the backrest, introducing a softer residential-style contrast to the precise metal base. The twin open sled supports are formed from black powder-coated square steel tube, with front and rear vertical posts creating a light visual profile and straightforward sightlines beneath the seat. Dark gray fabric or leather-grain upholstery covers the back, arms, and seat deck, making the sofa compatible with neutral executive interiors as well as darker contemporary lounge schemes. Construction centers on a steel-tube seat frame with welded or bolted cross rails beneath the three seat bays. The seat cushions pair an upholstered cover with a concealed support board and a medium-firm foam core, while the back cushions use a soft foam or fiber-filled core. Cushion thickness is generous, with an 180 mm seat cushion and a 160 mm back cushion; leg height and floor clearance are 160 mm. The sofa weighs 58 kg and is rated for three users, with a total seated load of 300 kg and a single-seat static load of 130 kg. Four polymer glide pads at the exposed rail ends help protect hard flooring, and the freestanding, non-reclining design requires no wall fixing. Functionally, the sofa is intended for open lounge layouts where occupants can face a central coffee table. The loose back cushions can be repositioned for cleaning, and the open sled base leaves no concealed storage, simplifying the visual layout and floor maintenance. The model is suitable for executive offices, visitor lounges, hotel reception zones, and other commercial reception areas. It can also be used in refined residential spaces that call for durable three-seat lounge seating. For coordinated projects, it pairs with matching single-seat lounge chairs and a low rectangular table to create a four-person meeting or waiting configuration. A wood-grain coffee table may be shown alongside the sofa but is supplied separately, so buyers should confirm table and accessory requirements rather than assuming inclusion. Procurement planning should account for the unbranded product identity, model LOS-3S-DG-SLED, and delivery in two cartons. Packaging and handling are significant: the packaged gross weight is 110 kg per item and the reference packaging volume is 1.8 cubic meters. The supplied assembly references list both a 30-minute assembly time and a 40-minute per-set reference assembly time, so project scheduling should allow for on-site joining and final placement. Purchasers should also verify the upholstery option, confirm delivery access, and plan for appropriate handling in commercial installations.

Dark Gray Upholstered Three-Seat Reception Sofa with Metal Sled Base Specifications
