Automatic mm / inch conversion · Core engineering specifications
| Three-seater sofa overall dimensions | 2200 x 900 x 850 mm | |
|---|---|---|
| Single armchair overall dimensions | 950 x 850 x 850 mm | |
| Seat height from floor | 450 mm | |
| Seat depth for three-seater sofa | 580 mm | |
| Seat depth for single armchair | 560 mm | |
| Backrest height from seat surface | 400 mm | |
| Armrest height from floor | 620 mm | |
| Leg height from floor | 150 mm | |
| Side panel thickness | 30 mm | |
| Clearance under sofa for cleaning | 120 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Single seat static load capacity | 150 kg | |
|---|---|---|
| Three-seater sofa unit weight | 75 kg | |
| Single armchair unit weight | 32 kg | |
| Recommended maximum occupancy for full set | 5 people | |
| Foam indentation load deflection | 40 kg/m³ | |
| Seam tensile strength | 180 N | |
| Surface upholstery abrasion resistance | 50000 rub cycles | |
| Seat foam density | 45 kg/m³ | |
| Back foam density | 35 kg/m³ | |
| Foam rebound rate | 60% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and back upholstery | Smooth light beige top-grain leather or commercial-grade PU leather, stitched with fine matching thread | |
|---|---|---|
| Outer side panels | Dark brown wood-veneer or matte PU wrapped rigid panel, finished with clean edge trim | |
| Armrest pads | Same light beige upholstery as seat/back, padded with soft foam over rigid arm frame | |
| Support legs | 1.5mm thick matte black powder-coated carbon steel, tapered angled design | |
| Internal seat frame | 25mm thick kiln-dried hardwood frame with corner bracing | |
| Cushion padding | 40mm thick high-resilience polyurethane foam topped with 10mm soft fiber wrap | |
| Back padding | 30mm thick medium-density polyurethane foam with fiber topping | |
| Joinery hardware | Zinc-plated steel screws and corner brackets, rust-resistant coating | |
| Seat cushion padding | 100mm thick high-resilience polyurethane foam topped with 20mm soft polyester fiber wrap | |
| Internal back support webbing | 50mm wide elastic webbing spaced 80mm apart, fastened to frame with steel staples | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Fixed cushion construction | Seat and back cushions are secured to the frame to prevent shifting during regular use, no removable cushion covers | |
|---|---|---|
| Tapered leg stability | Four angled metal legs per unit distribute weight evenly to prevent tipping when users sit on armrest edges | |
| Under-unit clearance | 120mm open space beneath the frame allows easy cleaning and unobstructed air circulation around the rug below | |
| Integrated lumbar support | Back cushions are stitched with contour shaping to provide built-in lumbar support without separate adjustable cushions | |
| Armrest load support | Padded armrests support up to 90kg static load for users leaning or assisting with standing, with reinforced internal bracing | |
| Modular arrangement flexibility | All three units are freestanding, allowing placement in L-shaped, opposing, or linear layouts to suit different reception room sizes | |
| Under-unit cleaning access | 120mm open space beneath the frame allows standard vacuum cleaner nozzles to access floor under all units for routine maintenance | |
| Freestanding modular arrangement | All three units are non-connected freestanding pieces, allowing placement in L-shaped, opposing, or linear layouts to suit 30sqm reception room sizes | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Total shipping units per full set | 3 units | |
|---|---|---|
| Three-seater sofa carton dimensions | 2250 x 950 x 600 mm | |
| Single armchair carton dimensions | 1000 x 900 x 600 mm per unit | |
| Total gross weight per full set | 128 kg | |
| Total shipping volume per full set | 2.36 CBM | |
| Assembly time per full set | 60 minutes | |
| 40ft HQ container loading capacity | 42 sets | |
| Required assembly tools | Standard Phillips screwdriver and Allen key | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Executive office reception areas | Fits formal executive office waiting spaces, with professional two-tone styling that matches dark wood and neutral office interiors | |
|---|---|---|
| Corporate lounge and breakout zones | Provides comfortable seating for informal employee breaks or small client meetings in open office environments | |
| High-end hotel lobby waiting zones | Durable contract-grade construction suits high-traffic public lobby areas with consistent professional appearance | |
| Boardroom side seating | Can be placed along boardroom walls for additional guest seating during long meetings or overflow attendance | |
| Private study and home office spaces | Scaled appropriately for premium home office setups requiring durable, formal seating for household guests | |
| Recommended pairing | Coordinates with light grey low-pile area rugs and dark wood storage cabinets to create a cohesive modern commercial interior | |
| Premium private office guest spaces | Scaled appropriately for 15sqm senior manager private offices requiring durable, formal seating for 3 visiting guests | |
| Recommended Matching Desk Size | 2.4 m executive desk |
European market access and chemical requirements
| EN 13761:2012 | Furniture - Seating for office waiting areas, applicable for structural stability, strength and durability testing of lounge seating | |
|---|---|---|
| EN 1021-1:2014 | Furniture - Assessment of the ignitability of upholstered furniture, Part 1: Ignition source smouldering cigarette, required for public area fire safety compliance | |
| EN 1021-2:2014 | Furniture - Assessment of the ignitability of upholstered furniture, Part 2: Ignition source match flame equivalent, required for public area fire safety |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2020 | Standard for Lounge Seating, applicable for static load, fatigue, stability and durability testing for commercial office use | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture Sustainability Standard, applicable for evaluating material content, emissions and end-of-life recyclability for green procurement |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for side panel and frame structural performance, dimensional tolerance and finish quality checks | |
|---|---|---|
| GB 20400-2006 | Limit of harmful substances in leather and fur, applicable for testing formaldehyde and heavy metal content in leather upholstery components | |
| GB/T 19001-2016 | Quality management system guideline for furniture manufacturing, for supplier production process qualification during procurement | |
| GB/T 27904-2011 | Furniture - Mechanical performance tests for seating furniture, applicable for static load and fatigue testing of sofa frames |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for side panel and frame structural performance, dimensional tolerance and finish quality checks; 2. GB 20400-2006: Limit of harmful substances in leather and fur, applicable for testing formaldehyde and heavy metal content in leather upholstery components; 3. GB/T 19001-2016: Quality management system guideline for furniture manufacturing, for supplier production process qualification during procurement; 4. GB/T 27904-2011: Furniture - Mechanical performance tests for seating furniture, applicable for static load and fatigue testing of sofa frames; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

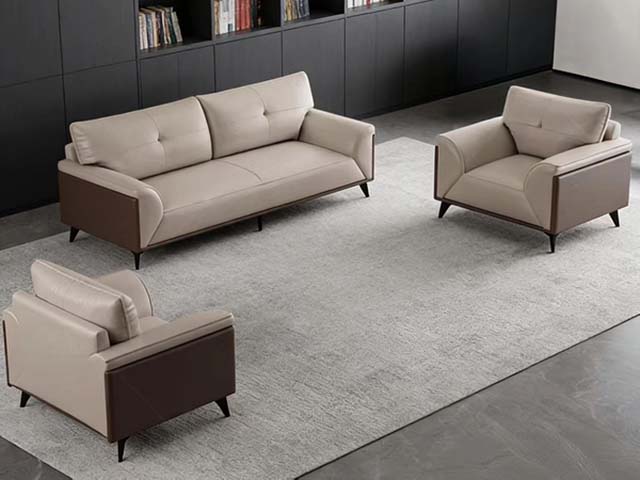

Open Export ToolModern 3-Piece Office Lounge Seating Set, Artificial Leather.
