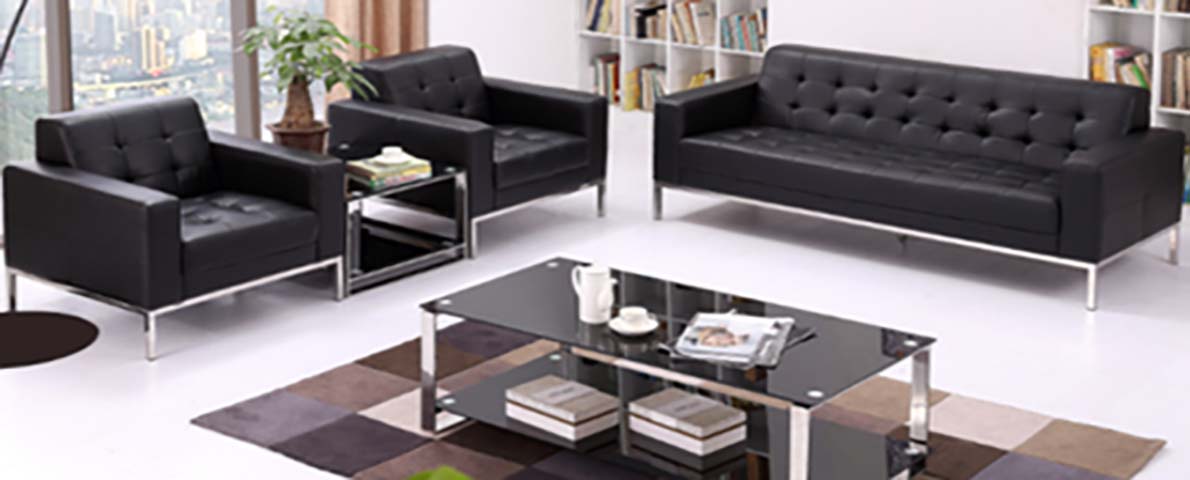

Black Faux Leather Tufted Office Sofa Set (3-Seater + 2 Single Armchairs) - Dimensions

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

3-seater sofa overall dimensions	2000 x 850 x 750 mm
Single armchair overall dimensions	900 x 850 x 750 mm
Seat height from floor	420 mm
Seat depth per position	550 mm
Backrest height above seat	360 mm
Armrest height from floor	620 mm
Metal frame leg section size	30 x 30 mm
Upholstery tuft grid spacing	200 mm
Seat cushion thickness	120 mm
Armrest width	120 mm
Leg ground clearance	120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

3-seater sofa net weight	75 kg
Per-seat static load capacity	150 kg
Recommended total users for full set	5
Seat cushion foam density	40 kg/m³
Back cushion foam density	30 kg/m³
Upholstery abrasion resistance	50000 Martindale cycles
Frame static load rating per unit	450 kg
Frame static load rating per 3-seater unit	480 kg
Cushion indentation load deflection (ILD)	38
Seam tensile strength	120 N

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back upholstery	Black PU faux leather, 1.2mm thickness
Seat cushion core	High-density polyurethane foam, 80mm thickness
Back cushion core	Medium-density polyurethane foam, 60mm thickness
Structural inner frame	15mm thick plywood panel
External support frame	Polished chrome-plated square steel tube, 1.2mm wall thickness
Tuft fasteners	Metal button tufts, recessed 10mm into upholstery
Frame foot caps	2mm thick non-slip plastic glides
Stitching specification	8mm stitch pitch, bonded polyester thread
Seat support base	80mm wide elastic webbing, 50mm spacing
Armrest inner core	12mm thick plywood substrate wrapped in 20mm foam padding
Chrome surface finish	0.08mm thick chrome plating over steel tube
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat design	Fixed non-removable seat cushions, integrated with frame
Back support	Tufted fixed backrest with integrated lumbar curvature
Armrest design	Upholstered wide square armrests integrated with seat frame
Floor protection	Plastic glides on all leg bases, no rolling casters
Configuration flexibility	Modular independent units, can be arranged in linear, L-shape or separate placement
Cleaning suitability	Smooth non-porous upholstery surface, supports wipe-down cleaning
Frame stability	Continuous perimeter steel frame connects all support legs
Foam retention	Tufted construction secures foam layers to prevent shifting or bunching after 8 years of regular commercial use
Recline Angle / Lock Reference	125° with 3 suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Total shipping units per set	4 pcs
3-seater sofa carton dimensions	2050 x 900 x 650 mm
Single armchair carton dimensions	950 x 900 x 650 mm
Total gross weight per set	170 kg
Total shipping volume per set	2.3 CBM
On-site assembly time	40 minutes
20ft GP container loading quantity	18 sets
40ft HQ container loading quantity	45 sets
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Corporate office reception areas	Formal professional black leather appearance suitable for visitor waiting rooms, meeting lobbies and executive reception zones
Small meeting and breakout spaces	Compact single and three-seat units can be arranged around a coffee table for casual small group discussions
Public service waiting areas	Durable wipe-clean upholstery and steel frame withstand high daily foot traffic in government offices, bank lobbies and service centers
Executive private offices	Matching set can be paired with an executive desk to create a separate guest seating area in manager or director offices
Recommended matching product	Black glass chrome-frame coffee table as shown in reference scene
Not recommended for use	Long-duration 8+ hour daily individual work seating
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU EN Standards

European market access and chemical requirements

Applicable seating stability standard	EN 15373:2007 Furniture - Strength, durability and safety - Non-domestic seating
Applicable upholstery fire standard	EN 1021:2014 Upholstered furniture - Assessment of ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette
Applicable chrome finish standard	EN 12540:2000 Corrosion protection of metals - Electrodeposited coatings of nickel plus chromium

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.

STANDARD S3

China GB Standards

Standards applicable to China-market projects

Applicable safety standard	GB/T 3324 General technical requirements for wooden furniture
Applicable upholstery standard	GB/T 16799 Polyurethane synthetic leather for furniture
Applicable hardware standard	GB/T 3325 Hardware for furniture
Applicable environmental standard	GB 18584 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture

Standard Tender Description

This product must meet the following technical requirements:
1. Applicable safety standard: GB/T 3324 General technical requirements for wooden furniture;
2. Applicable upholstery standard: GB/T 16799 Polyurethane synthetic leather for furniture;
3. Applicable hardware standard: GB/T 3325 Hardware for furniture;
4. Applicable environmental standard: GB 18584 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
