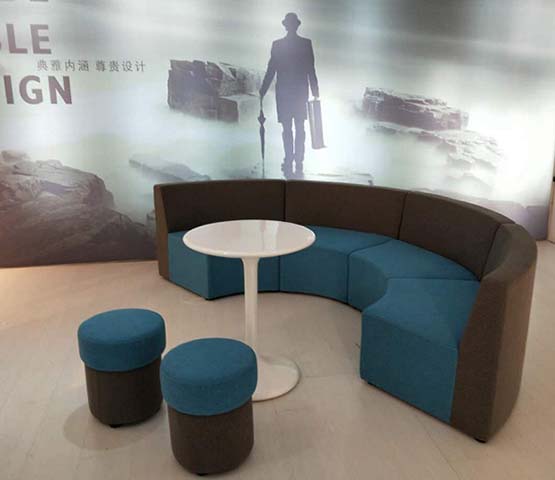

Product supplierModular Curved Lounge Seating Set with Round Side Table and Ottomans, Teal woven polyester fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 2200 × 750 mm | |
|---|---|---|
| Overall set footprint | 2800 x 2200 x 750 mm | |
| Sofa seat height | 420 mm | |
| Sofa total back height | 750 mm | |
| Single curved sofa segment width | 700 mm | |
| Sofa seat depth | 600 mm | |
| Sofa backrest thickness | 120 mm | |
| Round side table diameter | 700 mm | |
| Side table column diameter | 80 mm | |
| Side table base diameter | 600 mm | |
| Single round ottoman diameter | 380 mm | |
| Ottoman total height | 420 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set net weight (all components) | 185 kg | |
|---|---|---|
| Single sofa seat static load capacity | 150 kg | |
| Fabric abrasion resistance (Martindale) | 50000 cycles | |
| Foam density (seat cushions) | 40 kg/m³ | |
| Foam density (backrests) | 30 kg/m³ | |
| Maximum seated user capacity | 6 | |
| Fabric Martindale abrasion resistance | 50000 cycles | |
| Seat cushion foam density | 40 kg/m³ | |
| Backrest foam density | 30 kg/m³ | |
| Maximum total seated user capacity | 6 |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Sofa seat upholstery | Teal woven polyester fabric | |
|---|---|---|
| Sofa back and outer panel upholstery | Dark brown woven polyester fabric | |
| Ottoman upholstery | Two-tone teal seat top and dark brown side panels | |
| Internal seat and back framing | 18 mm thick composite engineered wood panel | |
| Seat cushion core | High resilience polyurethane foam | |
| Backrest cushion core | Medium density polyurethane foam | |
| Side table top | 12 mm thick matte white solid surface material | |
| Side table support structure | Powder-coated white steel | |
| Foot glides (all upholstered components) | 25 mm diameter hard plastic non-marking glides | |
| Sofa seat cushion upholstery | Teal woven polyester fabric, 350g/m² | |
| Sofa backrest and outer panel upholstery | Dark brown woven polyester fabric, 350g/m² | |
| Internal upholstered component framing | 18 mm thick composite engineered wood panel, glued and stapled construction |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular sofa configuration | 4 independent wedge-shaped segments connect via underside metal brackets to form a continuous 180-degree curved seating arc | |
|---|---|---|
| Ottoman use flexibility | Two lightweight round ottomans can be pulled out for additional guest seating, pushed under the table edge for storage when not in use, or used as footrests for seated sofa users | |
| Back support design | Fully upholstered fixed-height backrest runs the full length of the curved sofa, providing continuous lumbar and upper back support for all seated positions | |
| Floor protection | All upholstered components and table base are fitted with non-marking glides to prevent scratching or scuffing hard floor surfaces including tile, polished concrete and vinyl | |
| Upholstery maintenance | Tight woven commercial fabric can be spot cleaned with mild detergent to remove spills and stains, suitable for high-traffic areas without specialized cleaning equipment | |
| Freestanding installation | All components require no wall fixing or permanent floor anchoring, can be repositioned to adjust lounge layout as space needs change | |
| Modular sofa reconfiguration | 4 independent wedge segments connect via underside zinc-plated steel brackets to form a continuous 180-degree semicircular seating arc; segments can be disconnected and rearranged into linear or alternate curved layouts with standard hex key tools | |
| Ottoman multi-use design | Two free-standing lightweight round ottomans can be pulled outward for additional guest seating, positioned as footrests for sofa users, or pushed partially under the table edge to reduce footprint when not in use; no permanent connection to other set components | |
| Floor surface protection | All upholstered components and the table base are fitted with press-fit non-marking plastic glides to prevent scratching or scuffing tile, polished concrete, vinyl and wood floor surfaces; glides can be replaced with standard tools if worn | |
| Table stable support | Circular weighted steel table base distributes load evenly to prevent tipping when weight is applied to table edges; central single-column design provides unobstructed legroom for all seated users | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total shipping carton count | 7 | |
|---|---|---|
| Largest shipping carton dimension (sofa segment) | 750 x 650 x 780 mm | |
| Table shipping carton dimension | 750 x 750 x 120 mm | |
| Ottoman shipping carton dimension (per unit) | 420 x 420 x 450 mm | |
| Total shipping gross weight | 210 kg | |
| Total shipment volume (CBM) | 2.4 | |
| On-site assembly time | 45 minutes | |
| 40ft HQ container loading quantity | 42 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office waiting and reception areas | Provides semi-enclosed group seating for guest waiting spaces, allowing small groups to converse face-to-face across the central table | |
|---|---|---|
| Co-working and breakout spaces | Suitable for informal team discussions, quick coffee breaks or impromptu small meetings between colleagues | |
| Public institutional spaces | Durable commercial-grade construction supports high daily traffic in libraries, hospital waiting zones, bank lobbies and public service centers | |
| Hotel and hospitality lounge areas | Curved form creates an inviting intimate seating nook in hotel lobbies, cafe lounges or airport VIP waiting areas | |
| Education campus common areas | Appropriate for student union lounges, dormitory common rooms and campus collaboration zones, supporting both individual work and small group socializing | |
| Office reception and waiting areas | Creates a semi-enclosed group seating zone for guest waiting spaces, allowing face-to-face conversation across the central table; compact curved footprint fits entry lobbies without blocking primary circulation paths | |
| Co-working facility breakout spaces | Suitable for informal team discussions, coffee breaks and impromptu 6person meetings; flexible ottomans provide adjustable extra seating for ad-hoc group sizes | |
| Public service lobbies | Durable commercial-grade construction supports high daily foot traffic in bank branches, hospital waiting zones and government service centers; two-tone upholstery conceals light wear and minor stains in heavy use environments |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Seating stability recommendation | EN 12520:2015 | |
|---|---|---|
| Furniture surface durability recommendation | EN 14434:2019 | |
| Upholstered furniture flammability recommendation | EN 1021:2014 | |
| Non-domestic seating stability recommendation | EN 12520:2015 | |
| Upholstered furniture ignition resistance recommendation | EN 1021:2014 | |
| Furniture hardware durability recommendation | EN 15372:2016 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Upholstered furniture flammability recommendation | Recommended references: GB 20286 | |
|---|---|---|
| Formaldehyde emission recommendation | Recommended references: GB 18580 | |
| Furniture structural safety recommendation | GB/T 3324 | |
| Upholstered furniture durability recommendation | GB/T 16799 |
Standardized tender description text
This product must meet the following technical requirements: 1. Upholstered furniture flammability recommendation: Recommended references: GB 20286; 2. Formaldehyde emission recommendation: Recommended references: GB 18580; 3. Furniture structural safety recommendation: GB/T 3324; 4. Upholstered furniture durability recommendation: GB/T 16799; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
