PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 1200 × 420 mm
Single cube ottoman module dimensions	600 x 600 x 420 mm
Single backrest cushion dimensions	750 x 100 x 280 mm
Seat surface height from floor	420 mm
Backrest top height from floor	700 mm
Bottom glide height	10 mm
Seat foam core thickness	100 mm
Upholstery material thickness	1.2 mm
Internal frame member thickness	18 mm
Corner radius of seat modules	20 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	45 kg
Per-seat static load capacity	150 kg
Seat foam density	38 kg/m³
Foam rebound rate	45%
Upholstery surface abrasion resistance	50000 cycles
Design occupancy	3 users
Floor glide static load per glide	75 kg
Seam stitch pitch	8 stitches per inch
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat module outer upholstery	Glossy coated green fabric/PU leather
Backrest upholstery	Glossy coated orange fabric/PU leather
Seat cushion core	High-density polyurethane foam
Internal support frame	Plywood/medium-density fiberboard internal frame
Floor protection glides	Black hard plastic non-marking glides
Upholstery bonding layer	Polyester batting underlay
Backrest mounting hardware	Concealed metal fixing brackets
Corner reinforcement	Hardwood corner blocking inside frame
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular free-standing configuration	Independent square modules can be arranged into L-shape, linear or separate seating layouts
Single fixed backrest support	Backrest cushion provides lumbar support for the central seating position only, remaining modules function as armless ottomans/benches
Multi-purpose seating surface	Flat, firm ottoman tops function as casual seating, temporary side table or footrest for lounge areas
Non-marking floor protection	Small plastic glides at each base corner lift the upholstered body 10mm off the floor, preventing fabric damage and floor scuffing
Low-maintenance surface	Smooth, non-porous glossy upholstery can be wiped clean with standard surface disinfectants
Freestanding stability	Square, weighted base design prevents tipping when users sit on module edges
Optional connector compatibility	Hidden connection points under modules can accept standard modular furniture clips to prevent module shifting during use
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping packages	3
Single carton reference dimensions	630 x 630 x 450 mm
Total shipping gross weight	50 kg
Total shipping volume (CBM)	0.54 cbm
On-site assembly time	10 minutes
20ft GP container loading quantity	120 sets
40ft HQ container loading quantity	300 sets
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office breakout and lounge areas	Casual low-profile seating suitable for informal meetings, employee break rooms and collaborative waiting zones
Public reception and waiting spaces	Wipeable durable upholstery supports high traffic use in clinics, libraries, school common areas and retail lobbies
Children's activity and play spaces	Rounded soft edges and low seating height reduce fall injury risk for young users
Event and exhibition temporary seating	Lightweight modular units can be quickly reconfigured to suit different event layouts and audience sizes
Residential casual living spaces	Compact L-shape fits small apartment living rooms, playrooms or home office lounge areas
Commercial co-working spaces	Flexible arrangement supports both individual focused rest and small group discussion in shared work environments

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Seating furniture strength recommendation	EN 12520:2015
Upholstered furniture fire safety recommendation	EN 1021:2014
Formaldehyde emission recommendation	EN 717:2004

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

General technical furniture safety recommendation	GB 28007
Formaldehyde emission recommendation	GB 18584
Upholstered furniture fire safety recommendation	GB 20286
Furniture mechanical stability recommendation	GB/T 10357.2

Standardized tender description text

This product must meet the following technical requirements:
1. General technical furniture safety recommendation: GB 28007;
2. Formaldehyde emission recommendation: GB 18584;
3. Upholstered furniture fire safety recommendation: GB 20286;
4. Furniture mechanical stability recommendation: GB/T 10357.2;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MOD-L-OTT-3S1B-GO

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MOD-L-OTT-3S1B-GO

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MOD-L-OTT-3S1B-GOOpen Export Tool

Quick Actions

Post an RFQ

Product Description

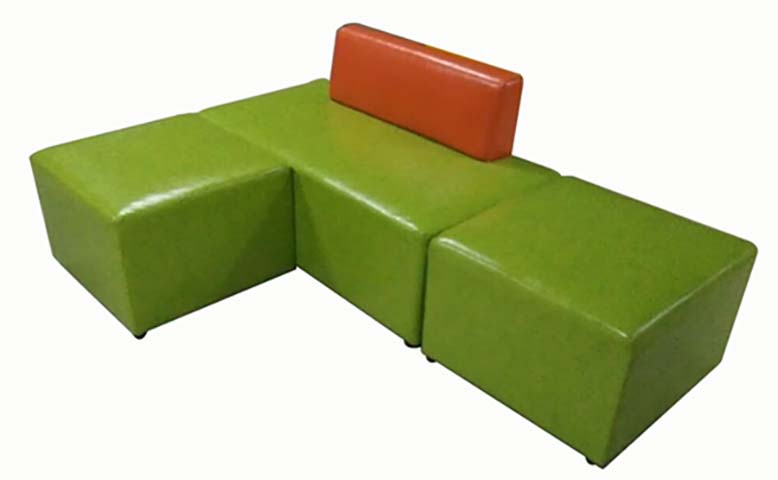

This modular L-shaped upholstered lounge ottoman set presents a streamlined, contemporary soft seating solution defined by its flexible, block-based form. The set comprises three uniform square seat modules paired with one contrasting backrest, finished in glossy coated green for seat surfaces and glossy coated orange for the single backrest to create a bright, approachable visual accent. All seat modules feature softly rounded corners to eliminate sharp edge risks, and can be arranged into the signature L-shape, extended linear layouts, or split into separate standalone seating units to match evolving space needs, with optional hidden connection points compatible with standard modular furniture clips to prevent shifting during use. The single backrest mounts to the central seat module via concealed metal brackets to deliver targeted lumbar support for that position, while the remaining two modules function as armless, flat-topped bench or ottoman surfaces.
Construction centers on a structural internal wood frame reinforced with hardwood corner blocking to prevent joint failure, topped with a layer of polyester batting and high-density, high-resilience polyurethane foam to create a firm, supportive seating surface. The seat foam is formulated to resist permanent deformation under regular use, paired with reinforced stitching at a consistent density to prevent seam separation. Each module sits on black hard plastic non-marking glides that lift the upholstered base off the floor to prevent scuffing on hard tile, wood, and vinyl surfaces, while the smooth, non-porous glossy upholstery wipes clean easily with standard surface disinfectants to support frequent turnover in shared spaces. The flat, uniform seat surfaces serve multiple functions, acting as casual perches, temporary side surfaces for light items, or footrests as needed. The weighted square base delivers stable, tip-resistant performance even when users sit on module edges, with a commercial-grade per-seat static load rating suitable for average adult users, and abrasion-resistant upholstery built to withstand high-traffic daily use.
This set is well suited for a broad range of commercial and residential spaces, including office breakout zones, public reception and waiting areas, children’s activity spaces, temporary event and exhibition seating, co-working shared lounges, and small apartment casual living areas. For procurement teams, key considerations include confirming exact upholstery material grade, wood core specifications, fire ratings, and hardware details with the supplier prior to purchase, as these details require formal bill of materials verification. The set ships as three individual packages, with the backrest packed within the central module carton, requiring no tools for on-site setup beyond positioning modules and securing the backrest, with fast assembly for rapid space furnishing. Bulk container loading quantities support large-scale furnishing projects across multi-site or high-capacity venues.

Modular L-Shaped Upholstered Lounge Ottoman Set with Single Backrest Specifications
