Automatic mm / inch conversion · Core engineering specifications

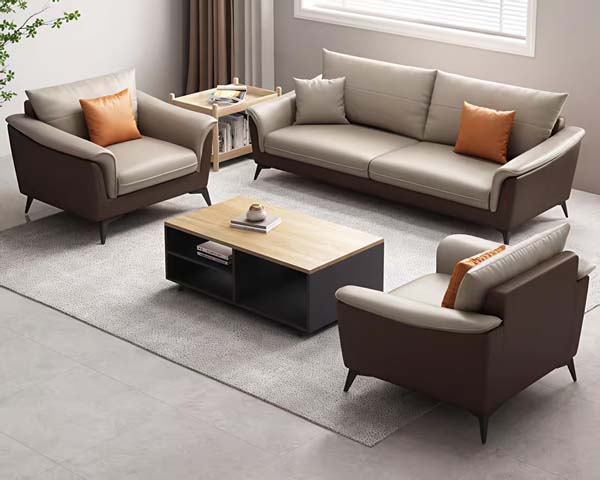

| Overall 3-seater sofa dimensions | 2200 x 850 x 900 mm | |
|---|---|---|
| Single armchair dimensions | 850 x 850 x 900 mm | |
| Seat height from floor | 450 mm | |
| Seat depth (usable) | 600 mm | |
| Seat cushion thickness | 120 mm | |
| Backrest height above seat | 450 mm | |
| Armrest height above floor | 620 mm | |
| Coffee table dimensions | 1200 x 600 x 450 mm | |
| Side end table dimensions | 600 x 600 x 550 mm | |
| Metal leg height | 150 mm | |
| Open storage shelf height (coffee table) | 180 mm | |
| Accent throw pillow dimensions | 450 x 450 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Total set weight (all pieces) | 180 kg | |
|---|---|---|
| Seat static load capacity per seat | 150 kg | |
| Seating capacity (full set) | 5 persons | |
| Upholstery abrasion resistance (Martindale) | 50000 cycles | |
| Foam compression set rating | 40 % | |
| Seat cushion foam density | 45 kg/m³ | |
| Back cushion foam density | 30 kg/m³ | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and inner back upholstery | Light beige faux leather, 1.2mm thickness, matte finish | |
|---|---|---|
| Outer arm and outer back upholstery | Dark brown faux leather, 1.2mm thickness, matte finish | |
| Seat cushion core | High-density polyurethane foam, wrapped with 20mm soft polyester batting | |
| Back cushion core | Medium-density polyurethane foam with fiber fill topper | |
| Support frame | Kiln-dried hardwood + 18mm thick plywood internal frame, corner-block reinforced | |
| Legs | 25mm diameter black powder-coated angled steel legs, with floor-protecting plastic glides | |
| Coffee table top | Light oak wood veneer over 25mm thick particleboard core, sealed matte finish | |
| Coffee table body | 18mm thick black matte laminated engineered wood, with divided open lower storage shelves | |
| Side end table | Solid pine frame with light oak finish top, lower open slatted shelf for storage | |
| Accent pillows | Polyester fiber fill, removable covers, 2 light beige + 2 terracotta orange finishes | |
| Seam construction | Reinforced stitched seams with 8 stitches per 30mm pitch, matching light thread for beige panels | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | Fixed arrangement of two single armchairs and one three-seater sofa, arranged around a central coffee table for face-to-face guest interaction | |
|---|---|---|
| Cushion design | Fixed seat and back cushions attached to frame to prevent shifting during regular use, with loose removable accent throw pillows for styling | |
| Floor protection | Hard plastic glides fitted to the base of all metal legs to prevent scratching hard flooring surfaces and enable gentle repositioning without lifting | |
| Coffee table storage | Two divided open lower shelves for storage of magazines, remote controls or office reading materials, no enclosed doors for easy access | |
| Side table utility | Flat top surface for placing drinks, table lamps or visitor materials, lower open shelf for additional storage | |
| Back support design | Slightly angled fixed backrest at 105 degrees from seat to provide relaxed upright support for waiting visitors | |
| Armrest design | Padded curved wide armrests integrated with the upholstered frame, providing elbow support for seated users | |
| Upholstery maintenance | Stain-resistant faux leather surface that can be wiped clean with mild detergent, suitable for high-traffic public office areas | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Office reception lobbies | Formal comfortable seating configuration suitable for greeting clients and job candidates in corporate entry areas, with coordinated tables for refreshments and reading materials | |
|---|---|---|
| Executive waiting areas | Two-tone neutral design with terracotta accents complements modern executive office decor, providing comfortable short-stay seating for visitors waiting for meetings | |
| Small business customer lounges | Compact 5-person seating footprint fits in small retail or service business waiting rooms without overcrowding, durable upholstery holds up to frequent daily use | |
| Co-working space common areas | Stain-resistant wipeable upholstery and open storage tables support casual meetings and informal work breaks in shared work environments | |
| Residential formal living rooms | Modern streamlined design works for contemporary home living spaces, coordinating tables provide convenient surface and storage for everyday use | |
| Recommended matching configuration | Pair with low-pile area rug as shown in the visual to define the seating zone, add table lamps on the side table for warm ambient lighting | |
| Apartment open-plan lounge areas | Compact 5-person seating footprint fits in small to medium apartment open-plan spaces without overcrowding, durable upholstery holds up to regular daily household use | |
| Small business customer waiting areas | Neutral professional design with warm terracotta accents complements modern small retail or service business waiting rooms, providing comfortable short-stay seating for clients |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating, level 2 suitability for medium-traffic public reception areas | |
|---|---|---|
| EN 13722:2004 | Furniture - Strength and durability requirements for domestic and contract tables, applicable to the included coffee and side tables | |
| EN 12520:2015 | Furniture - Strength, durability and safety for domestic seating, suitable for regular residential living room use | |
| EN 15372:2008 | Furniture - Strength, durability and safety requirements for non-domestic and domestic tables, applicable to the included coffee and side tables |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to the wooden table components and internal sofa frame for structural safety and dimensional accuracy | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade (0.124mg/m³) required for all engineered wood components used in indoor reception furniture | |
| GB/T 16799-2008 | Technical specification for polyurethane coated artificial leather, applicable to the faux leather upholstery for abrasion, color fastness and tear strength requirements | |
| GB 28007-2011 | Mechanical performance requirements for upholstered seating for public use, covering static load, impact and durability testing for commercial seating applications | |
| GB/T 3323-2017 | General technical requirements for metal furniture, applicable to the steel sofa legs for structural strength and coating durability |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to the wooden table components and internal sofa frame for structural safety and dimensional accuracy; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade (0.124mg/m³) required for all engineered wood components used in indoor reception furniture; 3. GB/T 16799-2008: Technical specification for polyurethane coated artificial leather, applicable to the faux leather upholstery for abrasion, color fastness and tear strength requirements; 4. GB 28007-2011: Mechanical performance requirements for upholstered seating for public use, covering static load, impact and durability testing for commercial seating applications; 5. GB/T 3323-2017: General technical requirements for metal furniture, applicable to the steel sofa legs for structural strength and coating durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
