Automatic mm / inch conversion · Core engineering specifications

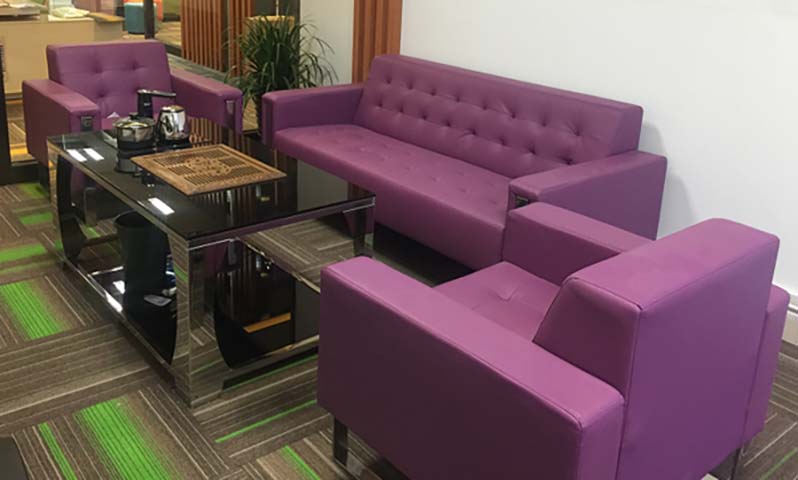

| Overall set footprint (loveseat + 2 armchairs around coffee table) | 1900 x 2200 x 850 mm | |
|---|---|---|
| Two-seat loveseat individual dimensions | 1600 x 780 x 800 mm | |
| Single-seat armchair individual dimensions | 820 x 780 x 800 mm | |
| Glass-top coffee table individual dimensions | 1300 x 700 x 550 mm | |
| Seat height from floor for all seating units | 430 mm | |
| Seat depth for all seating units | 550 mm | |
| Armrest height from seat surface for all seating units | 200 mm | |
| Backrest height from seat surface for all seating units | 370 mm | |
| Coffee table top thickness | 12 mm | |
| Coffee table lower storage shelf height from floor | 150 mm | |
| Seating metal leg cross-section | 50 x 50 mm | |
| Tuft button spacing on backrests and seats | 180 mm | |
| Overall set footprint (2 armchairs + 1 loveseat arranged around tea table) | 2200 x 1900 x 850 mm | |
| Black glass-top tea table individual dimensions | 1300 x 700 x 550 mm | |
| Seat cushion thickness for all seating units | 120 mm | |
| Backrest thickness for all seating units | 100 mm |
Net weight / load capacity / users / durability
| Total set net weight range | 185 kg | |
|---|---|---|
| Single seat unit static load capacity | 160 kg | |
| Seating foam density | 38 kg/m³ | |
| Seating foam indentation load deflection | 45 N | |
| Seating fabric abrasion resistance (Martindale) | 50000 cycles | |
| Seam stitch pitch | 3 mm | |
| Total seating capacity for full set | 4 adults | |
| Recommended usable lifespan for commercial use | 6 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and backrest upholstery | Purple PVC faux leather | |
|---|---|---|
| Seating internal padding | High-density polyurethane foam | |
| Seating support frame | 1.2mm thick powder-coated steel inner frame | |
| Seating legs | Chrome-plated square steel tube, 0.8mm plating thickness | |
| Coffee table top | Black tempered safety glass | |
| Coffee table frame and supports | Polished mirror-finish chrome-plated stainless steel | |
| Coffee table lower shelf | Black laminated wood-based panel | |
| Tufting hardware | Hidden plastic tufting buttons | |
| Fasteners and connection hardware | Zinc-plated steel bolts and brackets | |
| Seating armrest internal structure | 15mm thick multilayer plywood core, wrapped in matching foam and upholstery | |
| Tea table top | Black tempered safety glass, polished flat edges | |
| Tea table frame and supports | Polished mirror-finish chrome-plated stainless steel, 1.5mm tube wall thickness |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | Fixed non-reclining upright posture design | |
|---|---|---|
| Integrated armrest storage access | Concealed flip-top storage compartment in each seating unit armrest | |
| Coffee table surface function | Smooth non-porous black glass top designed to support tea service trays and beverage service | |
| Coffee table open storage | Lower open metal-framed shelf for waste bin or accessory storage | |
| Floor protection | Non-marking plastic glides fitted to bottom of all seating and table legs | |
| Assembly requirement | Knockdown design requiring on-site assembly of legs and frame components | |
| Surface cleaning | Faux leather and glass surfaces are wipe-clean with standard commercial office cleaning products | |
| Seating arrangement flexibility | Independent modular seating units allow reconfiguration of layout to fit different reception room shapes | |
| Seating posture design | Fixed non-reclining 100-degree upright back angle design, optimized for 60 minute guest waiting duration, no tilt or recline mechanisms visible | |
| Integrated armrest utility access | Concealed flip-top access panel on outer face of each armrest, 100x150mm internal cavity for small item storage, visible recessed panel detail on each arm in reference image | |
| Tea table surface function | Smooth non-porous black glass top with 50kg uniform load capacity, designed to support tea service trays, beverage dispensers and office supplies as visible in reference image | |
| Tea table open storage | 300mm high lower open metal-framed shelf, sized to fit standard 12L office waste bins or reading material storage, as visible with trash bin stored in reference image |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons for full set | 6 cartons | |
|---|---|---|
| Largest carton dimensions (loveseat) | 1650 x 830 x 650 mm | |
| Total gross shipping weight for full set | 210 kg | |
| Total shipping volume (CBM) for full set | 1.8 CBM | |
| On-site assembly time for two trained technicians | 60 minutes | |
| 20ft GP container loading quantity (full sets) | 14 sets | |
| 40ft HQ container loading quantity (full sets) | 36 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
Recommended spaces / users / usage modes
| Corporate office reception and waiting areas | Suitable for guest waiting spaces near building entrances or executive floors, formal purple upholstery presents a professional branded appearance | |
|---|---|---|
| Tea and casual meeting spaces | Paired with the integrated glass coffee table, supports informal internal discussions or guest beverage service | |
| Shared co-working lounge zones | Durable commercial grade construction withstands high daily turnover in open co-working environments | |
| Small business customer waiting rooms | Compact 3+1 seating configuration fits efficiently in small reception footprints without overcrowding | |
| Public sector service waiting areas | Wipe-clean surfaces and durable construction meet the requirements of high-footfall public service points | |
| In-office tea reception spaces | Paired with the durable black glass tea table, supports formal guest tea service and internal casual discussions, with integrated shelf for waste bin storage | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| Office seating safety standard recommendation | EN 16139:2013 | |
|---|---|---|
| Furniture glass safety standard recommendation | EN 12150:2015 | |
| Upholstered furniture flammability recommendation | EN 1021:2014 | |
| Office seating safety recommendation | EN 16139:2013 | |
| Furniture glass safety recommendation | EN 12150:2015 |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| Upholstered furniture safety standard recommendation | GB 28007 | |
|---|---|---|
| Tempered glass safety standard recommendation | GB 15763.2 | |
| Formaldehyde emission standard recommendation | GB 18580 | |
| Metal furniture coating standard recommendation | GB/T 3324 | |
| Upholstered furniture safety recommendation | GB 28007 | |
| Tempered glass safety recommendation | GB 15763.2 |
This product must meet the following technical requirements: 1. Upholstered furniture safety standard recommendation: GB 28007; 2. Tempered glass safety standard recommendation: GB 15763.2; 3. Formaldehyde emission standard recommendation: GB 18580; 4. Metal furniture coating standard recommendation: GB/T 3324; 5. Upholstered furniture safety recommendation: GB 28007; 6. Tempered glass safety recommendation: GB 15763.2; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
