Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2100 × 880 × 950 mm | |
|---|---|---|
| Seat height from floor | 450 mm | |
| Seat depth per seating position | 580 mm | |
| Backrest height above seat surface | 500 mm | |
| Armrest height above seat surface | 180 mm | |
| Seating position width per person | 650 mm | |
| Coffee table open lower shelf height | 220 mm | |
| Leg height for all seating units | 60 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set net weight range | 185 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Total seating capacity | 5 persons | |
| Seat foam density | 40 kg/m³ | |
| Backrest foam density | 30 kg/m³ | |
| Fabric abrasion resistance | 50000 double rubs | |
| Warranty period for frame and hardware | 3 years | |
| Frame warranty period | 3 years | |
| Seam strength | 120 N | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery material | 0.8mm thick dark brown semi-aniline finish faux leather | |
|---|---|---|
| Internal frame construction | 30mm thick kiln-dried solid hardwood frame | |
| Seat cushion padding | 120mm thick high-density polyurethane foam | |
| Backrest padding | 80mm thick medium-density polyurethane foam | |
| Armrest construction | Layered solid wood base with 20mm foam padding wrapped in matching upholstery | |
| Support legs | Solid polished hardwood block legs | |
| Coffee table main body | High-gloss dark brown wood veneer over particleboard core | |
| Hardware components | Zinc-plated steel corner brackets and wood screws | |
| Seam stitching details | 8 stitches per inch reinforced polyester thread | |
| Seat support system | 70mm wide elastic webbing spaced 50mm apart under seat foam | |
| Coffee table countertop reinforcement | 18mm thick high-density fiberboard substrate under wood veneer | |
| Floor protection pads | 5mm thick hard polyethylene glides fitted to leg bases |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

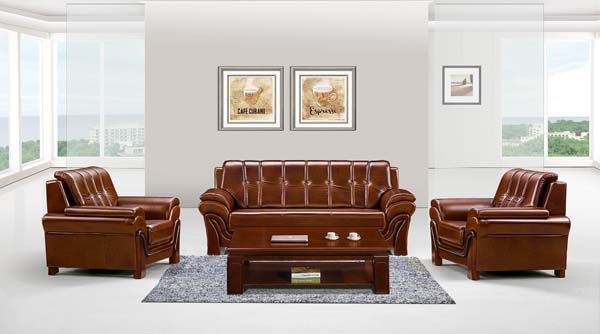

| Seating configuration | Fixed 1+1+3 layout with two identical single armchairs flanking a central 3-seat sofa | |
|---|---|---|
| Backrest support | Vertical channel tufted fixed backrest with segmented padded sections | |
| Coffee table storage | Central upper drawer for small items plus lower open display shelf for reading materials | |
| Floor protection | Fixed hard plastic glides fitted to the base of all wood legs | |
| Upholstery maintenance | Smooth non-porous faux leather surface that can be wiped clean with mild disinfectant | |
| Arrangement flexibility | Individual seating units can be repositioned to adapt to different room sizes | |
| Coffee table top utility | Flat polished surface sized to hold tea sets, visitor badges, document trays or small decorative items | |
| Cushion Service Configuration | Recommended 2 removable/replaceable cushion methods |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total shipping cartons | 4 cartons | |
|---|---|---|
| 3-seater sofa carton dimensions | 2150 x 930 x 650 mm | |
| Single armchair carton dimensions (per unit) | 1030 x 930 x 650 mm | |
| Coffee table carton dimensions | 1350 x 750 x 230 mm | |
| Total gross shipping weight | 210 kg | |
| Total shipment volume | 2.92 CBM | |
| Required assembly time for full set | 40 minutes | |
| 20ft GP container loading quantity | 10 sets | |
| 40ft HQ container loading quantity | 25 sets | |
| Reference Package Count | 1 set / 2 cartons |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office reception areas | Suitable for placement outside executive suites or boardrooms, providing formal, professional seating for visiting clients and business partners | |
|---|---|---|
| Corporate lobby waiting zones | Ideal for high-traffic main office lobbies, with durable faux leather upholstery that withstands frequent daily use and easy cleaning | |
| Government and institutional meeting spaces | Appropriate for formal government offices, bank branch waiting areas, and legal firm reception zones, conveying a serious, trustworthy professional image | |
| Hotel business center lounges | Suitable for hotel business centers and VIP guest reception areas, offering comfortable seating for short-term guest waiting | |
| Small conference breakout spaces | Can be configured as a standalone seating cluster in small breakout rooms for informal one-on-one business meetings | |
| Recommended complementary accessories | Pairs with low-pile commercial carpet, side end tables, and table lamps to create a cohesive traditional office reception space | |
| Enterprise VIP visitor rooms | Recommended for dedicated VIP visitor rooms in large enterprises, creating a formal dignified reception environment with coordinated matching seating and table design |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Applicable office furniture safety standard | EN 1335:2018 Office furniture - Office work chair - Part 2: Safety requirements | |
|---|---|---|
| Applicable furniture flammability standard | EN 1021:2014 Furniture - Assessment of the ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette | |
| Applicable surface durability standard | EN 15187:2006 Furniture - Assessment of surface resistance to cold liquids | |
| Applicable upholstered furniture flammability standard | EN 1021:2014 Furniture - Assessment of the ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette | |
| Applicable furniture stability standard | EN 1725:1998 Domestic Furniture - Seating - Safety Requirements |
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Applicable formaldehyde emission standard | GB 18584 Indoor Decorating and Refurbishing Materials - Limit of Harmful Substances in Wood-based Furniture | |
|---|---|---|
| Applicable upholstery fabric durability standard | GB/T 16799 Leather for Furniture | |
| Applicable upholstery leather durability standard | GB/T 16799:2008 Furniture Leather | |
| Applicable furniture mechanical safety standard | GB/T 3324:2017 General Technical Requirements for Wooden Furniture |
This product must meet the following technical requirements: 1. Applicable formaldehyde emission standard: GB 18584 Indoor Decorating and Refurbishing Materials - Limit of Harmful Substances in Wood-based Furniture; 2. Applicable upholstery fabric durability standard: GB/T 16799 Leather for Furniture; 3. Applicable upholstery leather durability standard: GB/T 16799:2008 Furniture Leather; 4. Applicable furniture mechanical safety standard: GB/T 3324:2017 General Technical Requirements for Wooden Furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
