Automatic mm / inch conversion · Core engineering specifications
| 2-seater sofa overall dimensions | 1600 x 750 x 780 mm | |
|---|---|---|
| Single armchair overall dimensions | 900 x 750 x 780 mm | |
| Coffee table overall dimensions | 1200 x 600 x 450 mm | |
| 2-seater sofa seat height | 430 mm | |
| 2-seater sofa seat depth | 580 mm | |
| 2-seater sofa backrest height above seat | 350 mm | |
| Sofa/chair armrest height above floor | 620 mm | |
| Sofa/chair chrome support trim width | 50 mm | |
| Coffee table lower shelf clearance above floor | 100 mm | |
| Coffee table glass thickness | 12 mm | |
| Seat cushion thickness | 120 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| 2-seater sofa net weight | 75 kg | |
|---|---|---|
| 2-seater sofa total static load capacity | 300 kg | |
| Seating foam density | 45 kg/m³ | |
| Seating upholstery abrasion resistance | 50000 Martindale cycles | |
| Seating foam rebound rate | 60% | |
| Frame joint durability | 100000 simulated seating cycles | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm |
Core acceptance fields · Panels / hardware / frame / upholstery

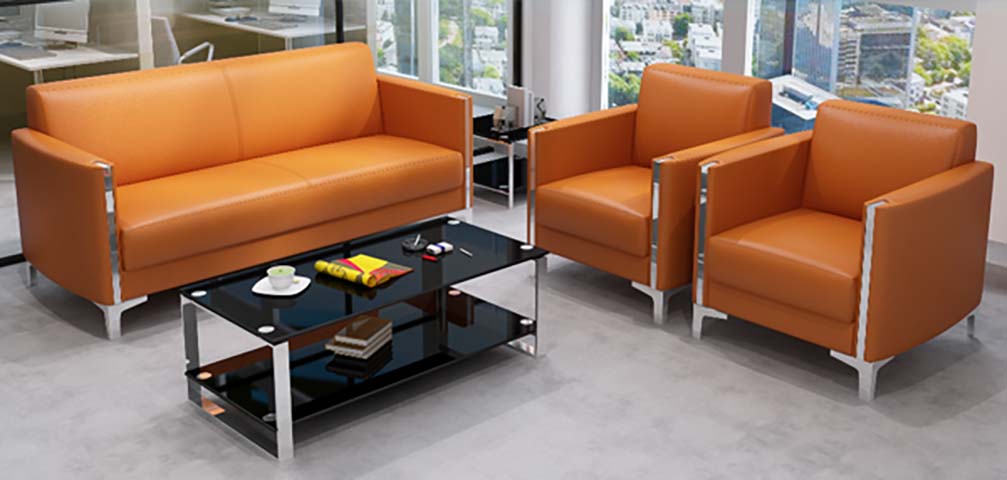

| Sofa/chair outer upholstery | Orange contract-grade PVC faux leather, tight stitched construction, uniform matte finish | |
|---|---|---|
| Seat and backrest core padding | High-density polyurethane foam, wrapped with soft polyester fiber layer | |
| Sofa/chair internal load frame | 20mm x 40mm rectangular steel tube, powder coated black, fully welded joints | |
| Armrest and leg trim components | Polished chrome-plated 1.2mm thick steel, formed into angular trim strips connecting arm top to floor leg | |
| Floor glides | Injection-molded nylon non-marking glides fitted to base of all legs | |
| Coffee table top and lower shelf | 12mm thick tempered black safety glass, polished flat edges, circular chrome trim at leg mounting points | |
| Coffee table support frame | Polished 1.5mm thick square chrome-plated steel tube legs and cross supports, welded joints | |
| Seam construction | Matching orange polyester thread, 8 stitches per inch seam pitch on cushion and backrest divisions | |
| Underside dust cover | Black non-woven polypropylene fabric stapled to sofa/chair base | |
| Seat support system | 80mm wide elastic webbing, spaced 50mm apart, fastened to frame with steel clips | |
| Foot pad corrosion protection | Triple chrome plating process on all exposed steel components, 8μm chrome layer thickness to prevent rust in indoor office environments | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | 1 x 2-seater sofa + 2 x single armchairs, fixed stationary position for formal reception guest seating | |
|---|---|---|
| Coffee table storage function | Two-level open glass shelving, upper surface for beverage and document placement, lower shelf for book and accessory storage | |
| Seating support function | Fixed upright backrest angle of 105 degrees to support relaxed upright posture for short to medium waiting periods | |
| Floor protection function | Non-marking nylon glides on all seating legs prevent scuff damage to hard floor surfaces including tile, polished concrete and low-pile carpet | |
| Surface cleaning function | Smooth non-porous faux leather and glass surfaces allow wipe-down cleaning with standard commercial office cleaning agents, no removable cushion covers | |
| Structural stability function | Wide splayed metal leg bases on all seating units provide anti-tip stability for normal guest use | |
| Upholstery anti-fading function | UV-stabilized PVC faux leather prevents color fading from office window sunlight exposure over 3 years of indoor use | |
| Cushion Service Configuration | Recommended 2 removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Total shipping carton count | 5 cartons | |
|---|---|---|
| 2-seater sofa shipping carton dimensions | 1650 x 800 x 650 mm | |
| Single armchair shipping carton dimensions | 950 x 800 x 650 mm | |
| Coffee table shipping carton dimensions | 1250 x 650 x 150 mm (glass) + 1200 x 400 x 200 mm (frame) | |
| Total set gross shipping weight | 210 kg | |
| Total set shipping volume | 1.75 CBM | |
| On-site assembly time | 20 minutes | |
| 40ft HQ container loading quantity | 68 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Corporate office reception areas | Suitable for main lobby and guest waiting zones, providing formal, durable seating for visiting clients with matching coffee table for refreshment placement | |
|---|---|---|
| Executive suite waiting spaces | Suitable for placement outside private executive offices, offering a polished, cohesive seating arrangement for short guest waiting periods | |
| Small business meeting lounges | Suitable for informal collaborative meeting areas supporting 4 total users for relaxed discussion | |
| High-traffic public service offices | Durable wipe-clean surfaces and contract-grade construction support daily use in bank, government and service center waiting areas | |
| Recommended complementary arrangement | Pair with a matching side end table placed adjacent to the 2-seater sofa for additional beverage and document storage, placed on low-pile commercial carpet or polished hard flooring | |
| Branch office visitor waiting areas | Suitable for small company branch lobbies with limited floor space, as the modular 3-piece layout occupies 3000mm x 2000mm of floor area without overcrowding entryways |
EU Market Access Requirements* EN Standards
| Office furniture strength and stability recommendation | EN 16139:2013 | |
|---|---|---|
| Furniture surface resistance recommendation | EN 12720:2009+A1:2013 | |
| Safety glass for furniture recommendation | EN 12150:2015 | |
| Upholstery abrasion recommendation | EN 14465:2003 |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| Upholstered furniture safety standard recommendation | GB 28007 | |
|---|---|---|
| Tempered glass safety standard recommendation | GB 15763.2 | |
| Furniture mechanical performance recommendation | GB/T 3324 | |
| Formaldehyde emission recommendation | GB 18580 | |
| Furniture flame retardant recommendation | GB 20286 |
This product must meet the following technical requirements: 1. Upholstered furniture safety standard recommendation: GB 28007; 2. Tempered glass safety standard recommendation: GB 15763.2; 3. Furniture mechanical performance recommendation: GB/T 3324; 4. Formaldehyde emission recommendation: GB 18580; 5. Furniture flame retardant recommendation: GB 20286; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
