PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2200 × 850 × 760 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg
Caster Rolling Durability Reference	Acceptance target 30000 cycles
Gas-lift Cycling Reference	Acceptance target 100000 cycles
Upholstery Seam Pitch	4 mm
Recommended Procurement Warranty	Frame 5 years; mechanism/gas lift 3 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel
Five-star Base Material Thickness	Metal base wall 3.5 mm; diameter 700 mm
Caster Engineering Specification	5 PU-tread swivel casters, 60 mm diameter

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LGS-BGE-3S-2AC

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LGS-BGE-3S-2AC

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LGS-BGE-3S-2ACOpen Export Tool

Quick Actions

Post an RFQ

Product Description

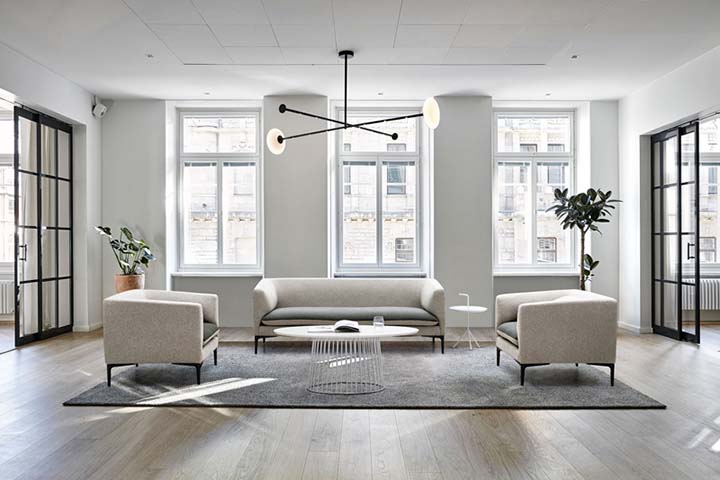

This lounge seating set pairs a three-seat upholstered sofa with two matching armchairs, presenting a coordinated modern and minimalist look for relaxed reception, waiting, office, living, or breakout environments. The light beige woven fabric creates a soft neutral exterior, while the dark gray seat cushions provide visual contrast and define the individual seating areas. Black powder-coated steel legs give the pieces a crisp contemporary outline, and the matching upholstery and leg finish keep the three items visually unified when arranged as a suite. Each piece is built around an internal hardwood-composite frame with bent plywood or equivalent support construction. The seat uses a 14 mm support board, and the backrest uses a 14 mm bent plywood and composite reinforced frame. Seat cushions are 90 mm thick and use high-resilience foam with a reference density of 45 kg/m3 and 65 percent rebound, while the backrest has 70 mm padding and a foam density reference of 38 kg/m3. A 240 mm lumbar support zone and 540 mm clear width between armrests contribute to the structured lounge profile. The upholstery is 1.4 mm thick with a 50,000-cycle abrasion reference, and seams use a 4 mm pitch. The supplied engineering references also describe adjustable swivel-chair components, including 360-degree rotation, five PU-tread swivel casters, 100 mm continuous height travel, and a recline reference of 125 degrees with three suggested lock positions. These features should be checked against the exact production configuration before purchase, particularly because the product is presented as a sofa-and-armchair lounge set. The component references include a Class 4 gas lift, a 2.5 mm cold-rolled steel tilt plate, a metal five-star base, tilt tension adjustment referenced to 120 kg, a chair reference load of 150 kg, caster durability of 30,000 cycles, and gas-lift cycling of 100,000 cycles. The reference daily use duration is eight hours, subject to ergonomic confirmation.

Three-Seat Upholstered Lounge Sofa with Two Matching Armchairs Specifications
