Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions (WxDxH) | 1900 x 800 x 780 mm | |
|---|---|---|
| Seat height | 420 mm | |
| Seat depth | 550 mm | |
| Seat width per position | 580 mm | |
| Backrest height | 380 mm | |
| Armrest width | 120 mm | |
| Armrest height from floor | 600 mm | |
| Leg height | 120 mm | |
| Cushion thickness (seat) | 120 mm | |
| Cushion thickness (backrest) | 80 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Net weight per 3-seat sofa | 55 kg | |
|---|---|---|
| Total static load capacity | 360 kg | |
| Seat foam density | 40 kg/m³ | |
| Backrest foam density | 30 kg/m³ | |
| Foam rebound rate | 55% | |
| Recommended maximum occupancy | 3 adults | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Structural frame warranty | 5 years | |
| Upholstery & hardware warranty | 2 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Outer upholstery | 1.0mm thick beige polyurethane (PU) faux leather, with matching beige stitching | |
|---|---|---|
| Seat cushion core | High-density polyurethane foam wrapped with 20mm soft polyester fiber batting | |
| Backrest cushion core | Medium-density polyurethane foam with fixed tufted grid indentations | |
| Internal frame | Kiln-dried hardwood plywood frame, 18mm thick panel construction | |
| Support legs | Polished chrome-plated steel tapered legs, 1.5mm wall thickness | |
| Armrest structure | Hardwood arm frame padded with 30mm foam, wrapped in matching PU upholstery | |
| Seat support base | Elastic webbing suspension under seat cushion, 50mm wide webbing spaced 100mm apart | |
| Stitching specification | Reinforced bonded polyester thread, 8 stitches per inch seam pitch | |
| Bottom dust cover | Black non-woven polypropylene fabric cover on sofa base | |
| Leg floor glides | Injection-molded polyethylene glides fitted to bottom of each metal leg | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | Fixed 3-position upright lounge seating, no reclining or adjustable components | |
|---|---|---|
| Backrest tufting | Fixed grid-style pulled tufting across entire back panel, creates non-slip supportive surface | |
| Armrest support | Fully padded fixed armrests on both sides, provide stable arm support for seated guests | |
| Floor protection | Integrated plastic glides on bottom of each metal leg, prevent scratching hard flooring surfaces | |
| Cushion design | Fixed attached seat and back cushions, no removable cushions to reduce shifting during daily use | |
| Cleaning compatibility | Smooth PU upholstery surface supports wipe-down cleaning with mild disinfectant, suitable for high-traffic public areas | |

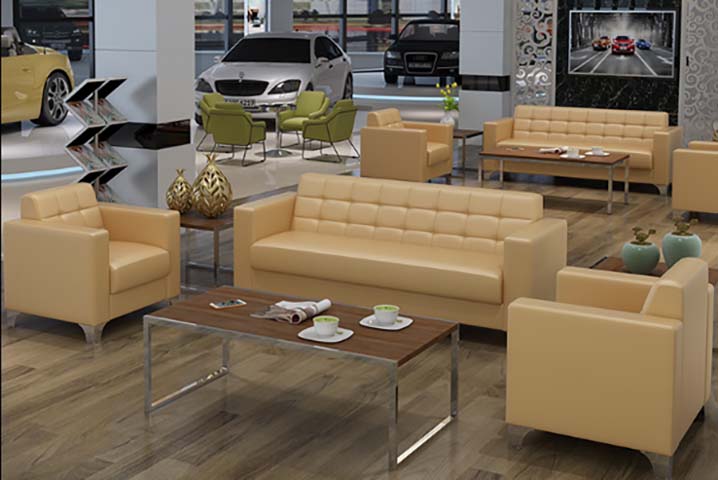

| Set modularity | Coordinates with matching single-seat armchairs and matching coffee tables shown in reception set in image, supports custom seating group layouts | |
| Backrest support | Fixed grid-style pulled tufting across entire back panel, creates segmented non-slip supportive surface | |
| Cushion retention | Fixed attached seat and back cushions secured to frame with hidden fasteners, eliminate cushion shifting during daily high-turnover use | |
| Cleaning performance | Smooth non-porous PU upholstery supports wipe-down cleaning with mild disinfectant, resists liquid staining from common reception-area spills | |
| Set compatibility | Coordinates with matching single-seat armchairs and chrome-frame walnut-top coffee tables shown in the reception set, supports custom linear or grouped seating layouts | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Number of packages | 1 piece | |
|---|---|---|
| Packed carton dimensions | 1980 x 880 x 860 mm | |
| Gross packed weight | 60 kg | |
| Packed volume (CBM) | 1.5 CBM | |
| Assembly time on site | 10 minutes | |
| 20ft GP container loading quantity | 18 units | |
| 40ft HQ container loading quantity | 46 units | |
| Packaging materials | 5-layer double-wall corrugated carton, expanded polystyrene edge protection, plastic stretch wrap | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Automotive dealership reception areas | Formal neutral beige design matches professional showroom environments, durable upholstery resists frequent visitor use | |
|---|---|---|
| Corporate office lobby and waiting areas | Compact 3-seat footprint fits standard waiting zone layouts, coordinates with matching single seats for flexible group configuration | |
| Bank and financial service customer waiting zones | Easy-to-clean PU surface supports regular sanitization, structured upright seating maintains professional atmosphere | |
| Hospital and clinic public waiting areas | Smooth non-porous upholstery reduces allergen retention, fixed cushions prevent displacement in high-turnover spaces | |
| Hotel lobby lounge seating | Polished chrome leg finish pairs with modern hospitality interior design, stain-resistant upholstery handles frequent guest use | |
| Reception seating group configuration | Pairs with two matching single-seat armchairs and a rectangular coffee table to form a standard 1+1+3 guest seating set | |
| Medical clinic and hospital public waiting areas | Smooth non-porous upholstery reduces allergen retention, fixed cushions prevent displacement in high-turnover spaces | |
| Mid-range hotel lobby lounge seating | Polished chrome leg finish pairs with modern hospitality interior design, stain-resistant upholstery handles frequent guest use |
EU Market Access Requirements* EN Standards
| EN 1022:2005 Domestic furniture - Seating - Determination of stability | Applicable for stability testing to prevent tipping during normal reception use | |
|---|---|---|
| EN 12520:2015 Furniture - Strength, durability and safety - Requirements for domestic seating | Applicable reference for strength and cyclic durability testing for medium-traffic commercial use | |
| EN 13722:2004 Furniture - Assessment of the resistance of surfaces to cold liquids | Applicable for testing PU upholstery resistance to spills common in reception areas |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017: General technical requirements for furniture | Applicable for structural stability, dimensional tolerance and finish quality inspection of this reception sofa | |
|---|---|---|
| GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applicable for formaldehyde emission limit testing of internal wooden frame components | |
| GB 20400-2006: Leather and fur - Limit of harmful matter | Applicable for harmful substance limit testing of PU upholstery material if supplied as genuine leather variant | |
| GB/T 19942-2005: Furniture - Test for surface resistance to cold liquids | Applicable for testing PU upholstery resistance to common beverage spills in reception areas |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for furniture: Applicable for structural stability, dimensional tolerance and finish quality inspection of this reception sofa; 2. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applicable for formaldehyde emission limit testing of internal wooden frame components; 3. GB 20400-2006: Leather and fur - Limit of harmful matter: Applicable for harmful substance limit testing of PU upholstery material if supplied as genuine leather variant; 4. GB/T 19942-2005: Furniture - Test for surface resistance to cold liquids: Applicable for testing PU upholstery resistance to common beverage spills in reception areas; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
