Automatic mm / inch conversion · Core engineering specifications
| 3-seater sofa overall dimensions | 1950 x 850 x 750 mm | |
|---|---|---|
| Single armchair overall dimensions | 850 x 800 x 750 mm | |
| Seat height from floor | 450 mm | |
| Seat depth | 550 mm | |
| Seat cushion thickness | 120 mm | |
| Backrest height from seat surface | 300 mm | |
| Armrest height from seat surface | 180 mm | |
| Metal base leg height | 120 mm | |
| Armrest width | 150 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| 3-seater sofa net weight | 75 kg | |
|---|---|---|
| 3-seater sofa total static load capacity | 450 kg | |
| Seat foam density | 38 kg/m³ | |
| Foam rebound rate | 45% | |
| Recommended maximum occupancy for full set | 5 people | |
| Seam stitching durability | 60000 abrasion cycles | |
| Metal frame static load rating | 600 kg | |
| Metal base static load rating | 600 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Upholstery material | 1.2mm thick black PVC faux leather | |
|---|---|---|
| Seat cushion core | High-density polyurethane foam wrapped in polyester batting | |
| Backrest core | 35kg/m³ density polyurethane foam | |
| Inner support frame | 25mm x 25mm solid hardwood + 1.2mm thick steel reinforcement frame | |
| Base frame material | 20mm x 40mm rectangular polished chrome-plated steel tubing | |
| Foot glides | Adjustable nylon floor glides | |
| Stitching construction | High-tensile polyester thread with 8 stitches per 30mm seam pitch | |
| Under-seat dust cover | Black non-woven polypropylene fabric | |
| Suspension system | 40mm wide elastic webbing spaced 100mm apart under seat cushions | |
| Armrest core | 30kg/m³ polyurethane foam padding over wood frame | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features

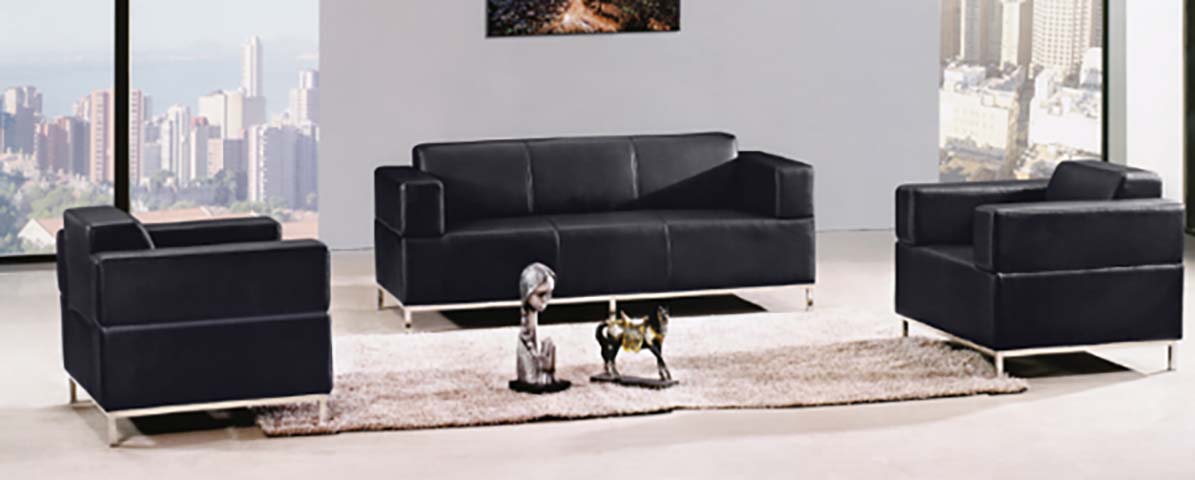

| Seating configuration | Fixed 3-piece modular set (1 three-seat sofa + 2 single armchairs) | |
|---|---|---|
| Floor clearance function | 120mm open clearance under the metal base | |
| Surface maintenance property | Stain-resistant wipe-clean faux leather upholstery | |
| Arrangement flexibility | Independent freestanding units | |
| Floor protection | Nylon glides at all base contact points | |
| Back support design | Segmented padded backrest with 3 separate support zones on the 3-seater | |
| Load distribution design | Continuous perimeter steel cantilever base | |
| Armrest function | Padded wide square armrests | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Corporate office reception areas | Suitable for lobby and waiting areas serving 5visitors, with a formal professional appearance suitable for executive and client-facing spaces | |
|---|---|---|
| Executive meeting lounge spaces | Suitable for placement in informal meeting rooms and executive breakout areas for small discussions, with upright supportive seating for 60 minute meetings | |
| Public service waiting areas | Suitable for government office, bank and service centre waiting spaces, with durable wipe-clean upholstery that withstands high daily visitor traffic | |
| Small business lounge configurations | Suitable for startup and small office spaces, with a compact footprint that fits in spaces from 12 to 20 square meters | |
| Recommended pairing | Pairs with 1200x600mm rectangular or circular coffee tables at 450mm height to create a coordinated reception furniture set | |
| Flooring compatibility | Suitable for use on hard tile, polished concrete, engineered wood and low-pile carpeted floors, with nylon glides that prevent floor damage | |
| Corporate office reception lobbies | Suitable for main entrance waiting areas serving 5 visitors at a time, with a formal professional appearance for executive and client-facing spaces | |
| Executive informal meeting lounges | Suitable for breakout areas and executive suites for small 5person discussions, with upright supportive seating for 60 minute meetings |
EU Market Access Requirements* EN Standards
| Office furniture seating safety recommendation | EN 16139:2013 Furniture - Strength, durability and safety - Requirements for non-domestic seating | |
|---|---|---|
| Upholstery flame retardancy recommendation | EN 1021:2014 Upholstered furniture - Assessment of the ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette | |
| Furniture surface durability recommendation | EN 15185:2011 Furniture - Assessment of surface resistance to abrasion | |
| Non-domestic seating safety recommendation | EN 16139:2013 Furniture - Strength, durability and safety - Requirements for non-domestic seating | |
| Surface abrasion resistance recommendation | EN 15185:2011 Furniture - Assessment of surface resistance to abrasion |
US and Canada office-furniture standards
| Lounge seating performance recommendation | ANSI/BIFMA X2023Lounge Seating Tests |
|---|
Standards applicable to China-market projects
| Upholstered furniture safety recommendation | GB/T 3324General technical requirements for wooden furniture | |
|---|---|---|
| Upholstered furniture durability recommendation | GB/T 2012Upholstered furniture: Sofas | |
| Formaldehyde emission recommendation | GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | |
| Wooden furniture safety recommendation | GB/T 3324General technical requirements for wooden furniture | |
| Upholstered sofa durability recommendation | GB/T 2012Upholstered furniture: Sofas | |
| Harmful substance limit recommendation | GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture |
This product must meet the following technical requirements: 1. Upholstered furniture safety recommendation: GB/T 3324General technical requirements for wooden furniture; 2. Upholstered furniture durability recommendation: GB/T 2012Upholstered furniture: Sofas; 3. Formaldehyde emission recommendation: GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture; 4. Wooden furniture safety recommendation: GB/T 3324General technical requirements for wooden furniture; 5. Upholstered sofa durability recommendation: GB/T 2012Upholstered furniture: Sofas; 6. Harmful substance limit recommendation: GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
