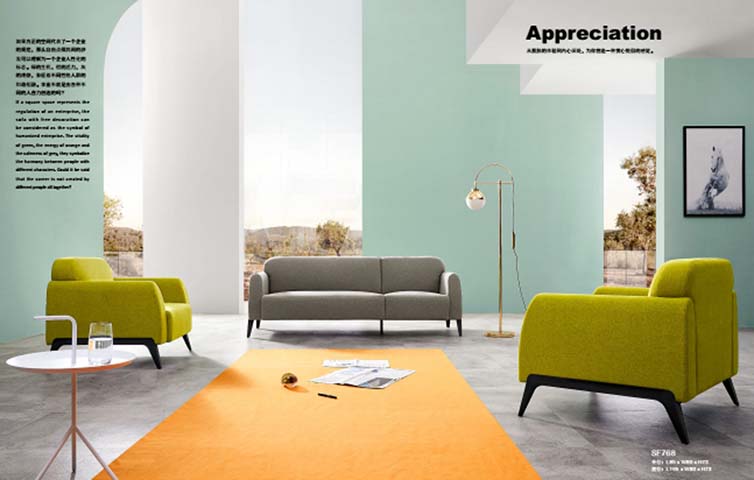

Product supplierUpholstered Three-Seat Lounge Sofa with Track Arms and Angled Legs, Woven polyester-style fabric over padded seat, back and arms
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1900 × 820 × 820 mm | |
|---|---|---|
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 42 kg | |
|---|---|---|
| Recommended total static load | 300 kg | |
| Individual seat load | 100 kg | |
| Seating capacity | 3 adults | |
| Backrest lateral load reference | 120 kg per seat position | |
| Leg connection load reference | 150 kg per support point | |
| Foam indentation hardness | 38 kg/m3 seat foam density | |
| Back foam density | 30 kg/m3 | |
| Foam rebound performance | 40% | |
| Fabric abrasion acceptance value | 30000 Martindale cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Woven polyester-style fabric over padded seat, back and arms | |
|---|---|---|
| Seat cushion | Polyurethane foam core with fabric cover and 140 mm target thickness | |
| Back cushion | Medium-density polyurethane fill with continuous upholstered back | |
| Internal frame | Kiln-dried timber and plywood seat frame with screwed corner blocks | |
| Support legs | Six black powder-coated tapered metal legs, including one center support | |
| Arm construction | Padded fabric-wrapped track arms over a rigid timber or metal inner rail |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating function | Three-position continuous sofa seating with two padded seat zones and integrated armrests | |
|---|---|---|
| Posture support | Slightly reclined 102-degree back angle supports relaxed reception and waiting use | |
| Floor stability | Six-leg support layout with two front, two rear and one visible central under-frame leg | |
| Maintenance access | 155 mm under-sofa clearance permits robotic or manual floor cleaning |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Assembly time | 35 minutes | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Reception and waiting areas | Use in corporate lobbies, hotel lounges and visitor waiting zones where three adults need compact soft seating | |
|---|---|---|
| Collaborative lounge spaces | Pair with single lounge chairs and low tables for informal discussion, reading or guest meetings |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013+A1:2021 | Strength, durability and safety requirements for non-domestic seating, suitable for commercial lounge procurement. | |
|---|---|---|
| EN 1022:2018 | Determination of seating stability, applicable to the six-leg upholstered sofa design. | |
| EN 14465:2003 | Upholstered furniture fabric classification, applicable when specifying abrasion, pilling and colorfastness. | |
| EN 1021-1:2014 | Ignitability by smouldering cigarette, suitable as an optional upholstered-furniture fire-safety acceptance standard. |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to the concealed timber frame and finished upholstered construction. | |
|---|---|---|
| GB/T 10357.6-2013 | Furniture mechanical surface test for single-layer and multi-layer structures, applicable to seat and back durability acceptance. | |
| GB 18584-2001 | Indoor decoration material limit of formaldehyde for wood-based furniture and components. | |
| GB/T 17957-2023 | General safety requirements and test methods for furniture, applicable to stability, edge and structural safety. |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to the concealed timber frame and finished upholstered construction.; 2. GB/T 10357.6-2013: Furniture mechanical surface test for single-layer and multi-layer structures, applicable to seat and back durability acceptance.; 3. GB 18584-2001: Indoor decoration material limit of formaldehyde for wood-based furniture and components.; 4. GB/T 17957-2023: General safety requirements and test methods for furniture, applicable to stability, edge and structural safety.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
