Automatic mm / inch conversion · Core engineering specifications

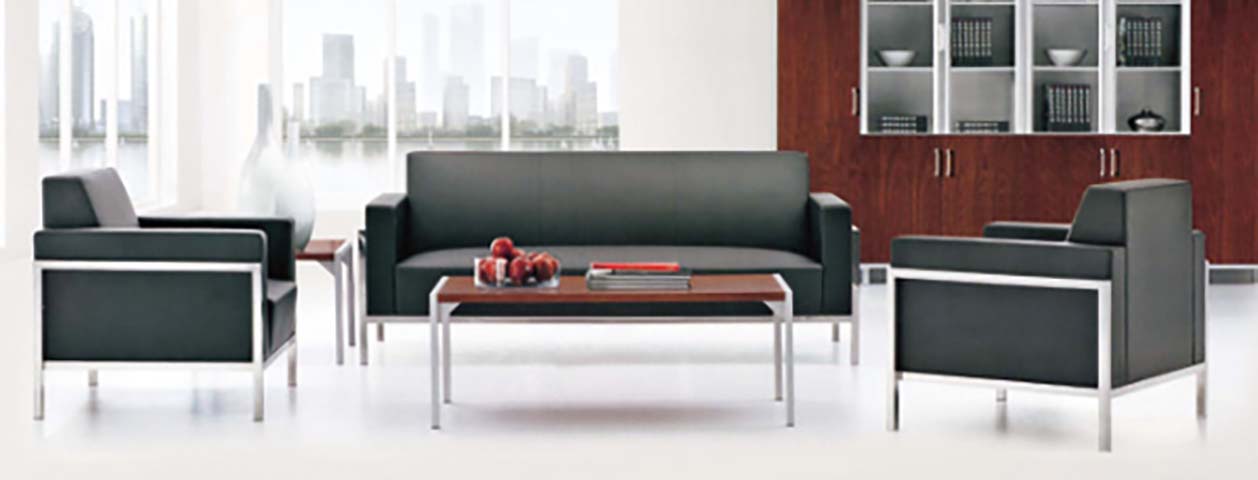

| 3-seater sofa overall dimensions | 1900 x 800 x 780 mm | |
|---|---|---|
| Single armchair overall dimensions | 780 x 750 x 780 mm | |
| Coffee table overall dimensions | 1200 x 600 x 450 mm | |
| Seat height (all seating units) | 420 mm | |
| Seat depth (all seating units) | 550 mm | |
| Seat back height (all seating units) | 430 mm | |
| Armrest height (all seating units) | 620 mm | |
| Metal frame tube diameter (seating units) | 30 mm | |
| Side end table overall dimensions | 450 x 450 x 500 mm | |
| Clearance under seating units | 120 mm | |
| Coffee table top thickness | 25 mm | |
| Upholstered back panel thickness (seating units) | 80 mm | |
| Metal frame tube diameter (seating and table units) | 30 mm | |
| Upholstered seat and back panel thickness (seating units) | 80 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm |
Net weight / load capacity / users / durability
| 3-seater sofa net weight | 68 kg | |
|---|---|---|
| 3-seater sofa total static load capacity | 360 kg | |
| Foam density (seat cushions) | 40 kg/m³ | |
| Seat foam thickness | 80 mm | |
| Back foam thickness | 40 mm | |
| Seam stitch pitch (upholstery) | 8 stitches per 30mm | |
| Fabric abrasion resistance (faux leather) | 50000 double rubs | |
| Seat cushion foam density | 40 kg/m³ | |
| Faux leather abrasion resistance | 50000 double rubs | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and back upholstery | Black matte faux leather (polyurethane surface) | |
|---|---|---|
| Seating support frame | Brushed finish 304 stainless steel square tubing | |
| Seating internal support structure | 15mm thick multilayer plywood seat base | |
| Coffee table top | Walnut-effect wood veneer over high-density fiberboard core | |
| Coffee table frame | Brushed finish stainless steel square tubing, matching seating frame finish | |
| Seat and back padding | High-resilience polyurethane foam | |
| Foot glides | Hard nylon non-marking floor glides | |
| Frame connection hardware | Zinc-plated steel bolts and brackets | |
| Side end table top | Walnut-effect wood veneer over 18 mm HDF core, matching coffee table finish | |
| Upholstery underlayer | 200 g/m² non-woven fabric barrier between foam and internal plywood base | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | Fixed-position upright guest seating with integrated wide armrests | |
|---|---|---|
| Frame construction | Knock-down bolt-together metal frame assembly | |
| Cleaning access | 120mm floor clearance under all seating and table units | |
| Surface maintenance | Stain-resistant faux leather upholstery that can be wiped clean with mild detergent | |
| Coffee table use | Low-profile central table positioned between seating units for placing reading materials, beverages and decorative items | |
| Floor protection | Nylon glides on all leg bases prevent scratching and scuffing on polished tile, wood or vinyl office flooring | |
| Modular arrangement | Independent seating and table units can be repositioned to suit different reception room layouts | |
| Load distribution | Four-point leg support on each furniture unit distributes weight evenly to prevent floor indentation | |
| Seating support function | Fixed-position upright guest seating with integrated wide upholstered armrests, no recline/swivel function, designed for formal short-duration reception use matching visible rigid frame design | |
| Assembly function | Knock-down bolt-together metal frame assembly, requiring standard 6 mm hex key for on-site assembly, no permanent welding required for installation | |
| Cleaning access function | 120 mm floor clearance under all seating and table units, allowing 35 mm diameter standard commercial vacuum nozzles to access under furniture without moving units | |
| Surface maintenance function | Non-porous stain-resistant faux leather and UV-sealed wood veneer surfaces, wipeable with neutral mild detergent and soft cloth to remove common office spills |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons (full set) | 6 cartons | |
|---|---|---|
| Largest carton dimensions (3-seater sofa) | 1950 x 830 x 280 mm | |
| Total gross shipping weight (full set) | 152 kg | |
| Total shipping volume (CBM, full set) | 1.28 CBM | |
| On-site assembly time (full set) | 90 minutes | |
| 20ft GP container loading quantity (full sets) | 36 sets | |
| 40ft HQ container loading quantity (full sets) | 88 sets | |
| Packaging protection | 5-layer corrugated carton with EPE foam corner protection and plastic film wrap | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Executive office reception areas | Formal dark upholstery with polished metal frames matches professional executive office decor for welcoming visiting guests | |
|---|---|---|
| Corporate lobby waiting zones | Durable, easy-to-clean surfaces and sturdy construction support high-traffic daily use in public building lobbies | |
| Conference room breakout areas | Compact, upright seating provides comfortable short-term seating for meeting breaks or small informal discussions | |
| Government and institutional visitor rooms | Neutral professional appearance without decorative detailing meets formal public sector furnishing requirements | |
| Recommended matching products | Pair with matching office bookcase and executive desk units in walnut veneer finish to create a coordinated office suite | |
| Floor compatibility | Suitable for installation on polished tile, engineered wood, vinyl or low-pile carpeted office floors | |
| Coordinated office suite configuration | Pairs with matching walnut-veneer executive desks and display bookcases (visible in image background) to create a unified, cohesive office furniture suite | |
| Commercial floor compatibility | Suitable for installation on polished tile, engineered wood, vinyl or low-pile (≤6 mm) carpeted office floors, with non-marking glides preventing floor damage across all common commercial floor types |
EU Market Access Requirements* EN Standards
| Office furniture structural safety recommendation | EN 16139:2013 Furniture - Strength, durability and stability - Non-domestic seating | |
|---|---|---|
| Upholstered furniture fire safety recommendation | EN 1021:2014 Furniture - Assessment of the ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette | |
| Table strength and durability recommendation | EN 15372:2016 Furniture - Strength, durability and stability - Requirements for non-domestic tables | |
| Surface finish durability recommendation | EN 12720:2009+A1:2013 Furniture - Assessment of surface resistance to cold liquids | |
| Non-domestic seating safety recommendation | EN 16139:2013 Furniture - Strength, durability and stability - Non-domestic seating | |
| Upholstery fire safety recommendation | EN 1021:2014 Furniture - Assessment of the ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette |
US and Canada office-furniture standards
| Seating load and durability recommendation | ANSI/BIFMA X2017 General Purpose Office Chairs - Tests | |
|---|---|---|
| Table performance recommendation | ANSI/BIFMA X2021 Desk Products - Tests | |
| Formaldehyde emission recommendation | ANSI/BIFMA e2019 Furniture Sustainability Standard - Section 7.6 Low Emitting Materials | |
| Caster and glide performance recommendation | ANSI/BIFMA X2017 Clause 18 Glides |
Standards applicable to China-market projects
| Upholstered furniture safety recommendation | GB/T 3324 General technical requirements for wooden furniture | |
|---|---|---|
| Metal furniture structural recommendation | GB/T 3325 General technical requirements for metal furniture | |
| Upholstered furniture durability recommendation | GB/T 19001 Quality management systems, with reference to QB/T 2012 Upholstered furniture sofas | |
| Formaldehyde emission recommendation | GB 18584 Indoor decorating and refurbishing materials - Limit of formaldehyde release from wood based furniture | |
| Wooden furniture safety recommendation | GB/T 3324 General technical requirements for wooden furniture |
This product must meet the following technical requirements: 1. Upholstered furniture safety recommendation: GB/T 3324 General technical requirements for wooden furniture; 2. Metal furniture structural recommendation: GB/T 3325 General technical requirements for metal furniture; 3. Upholstered furniture durability recommendation: GB/T 19001 Quality management systems, with reference to QB/T 2012 Upholstered furniture sofas; 4. Formaldehyde emission recommendation: GB 18584 Indoor decorating and refurbishing materials - Limit of formaldehyde release from wood based furniture; 5. Wooden furniture safety recommendation: GB/T 3324 General technical requirements for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
