MB-GRN-OR-3SEC

Code:GBQ2G3V1
Request supplier quotes

Modular 3-Section Upholstered Bench with Single Backrest Key Specifications 2026-08-06 15:08

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

MB-GRN-OR-3SEC

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall assembled dimensions1800 x 600 x 750 mm
Single seat module dimensions600 x 600 x 420 mm
Backrest dimensions600 x 80 x 330 mm
Seat height from floor420 mm
Seat foam thickness80 mm
Floor glide height10 mm
Seat surface usable depth560 mm
Backrest thickness80 mm
Module joint gap5 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total product net weight48 kg
Per-seat static load capacity150 kg
Fabric abrasion resistance (Martindale)50000 cycles
Foam density (seat cushion)40 kg/m³
Recommended maximum user count3
Seam stitch durability200 N tensile strength
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Upholstery (all seat modules)Glossy lime green PVC faux leather, 0.8mm thickness
Upholstery (backrest)Glossy orange PVC faux leather, 0.8mm thickness
Internal seat frame15mm thick plywood frame, reinforced with corner blocking
Seat paddingHigh-density polyurethane foam, 80mm thick top layer, 20mm side padding
Backrest paddingHigh-density polyurethane foam, 50mm thick, wrapped in non-woven fabric
Floor glidesBlack injection-molded polypropylene, 4 per module, non-marking
Joint hardwareHeavy-gauge steel connecting brackets, zinc-plated
Surface finishSemi-gloss wipeable coating, stain and water repellent
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Modular reconfigurationIndividual 600mm square modules can be separated, rearranged into straight, L-shape or staggered layouts
Partial lumbar supportSingle fixed upholstered backrest positioned on the middle module, providing back support for one central seating position
Non-slip stable positioning12 total floor glides (4 per module) distribute weight evenly and prevent unintended sliding on hard flooring
Easy surface maintenanceSmooth non-porous faux leather surface can be wiped clean with water or mild disinfectant without staining
Tool-free repositioningModules can be disconnected and moved by 2 people without specialized tools
Scratch and abrasion resistanceUpholstery resists scuffs from clothing, bags and regular contact to maintain appearance in high-traffic zones
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages3
Individual carton dimensions650 x 650 x 480 mm
Total shipping gross weight57 kg
Total shipping volume (CBM)0.61 m³
Assembly time on site20 minutes
20ft GP container loading quantity88 units
Packaging materials5-layer corrugated carton, 20mm EPE foam wrap, corner protective edge guards
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Office reception and waiting areasModular flexible layout fits variable lobby dimensions, easy-clean surface suits frequent visitor use and regular sanitization
Early education and childcare facilitiesSmooth wipeable upholstery resists crayon marks and spills, low seat height is accessible for child supervision with adult seating positions
Public service hall waiting zones3-seat linear configuration provides high seating density, durable upholstery withstands high daily foot traffic in government or bank lobbies
Breakout and casual collaboration spacesModules can be rearranged to create flexible informal seating for team discussions or short breaks in open office environments
Retail store customer rest areasCompact linear footprint does not obstruct walkways, bright color scheme matches modern retail interior design aesthetics
Hospital outpatient waiting areasStain-resistant surface can be disinfected regularly, stable fixed configuration prevents trip hazards for elderly or mobility-impaired users
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 16139:2013 Furniture - Strength, durability and safety for non-domestic seatingApplies to structural strength, stability and durability testing for commercial public waiting area seating
EN 1021-1:2014 Upholstered furniture - Ignitability assessment - Smouldering cigarette sourceRecommended fire safety standard for upholstered seating used in public commercial spaces
EN 12520:2015 Furniture - Strength, durability and safety for domestic seatingSecondary reference for general seating structural performance requirements
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2019 Lounge and Public Seating TestsRecommended standard for static load, impact and durability testing of public waiting seating in commercial facilities
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 General technical requirements for wooden furnitureApplies to internal wood frame construction, structural stability and dimensional tolerance verification for finished seating
GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furnitureApplies to formaldehyde emission limits for internal plywood frame and foam padding for indoor air quality compliance
GB/T 19001-2016 Quality management systems requirementsRecommended for supplier production process consistency to ensure uniform module dimensions and material quality
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017 General technical requirements for wooden furniture: Applies to internal wood frame construction, structural stability and dimensional tolerance verification for finished seating;
2. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applies to formaldehyde emission limits for internal plywood frame and foam padding for indoor air quality compliance;
3. GB/T 19001-2016 Quality management systems requirements: Recommended for supplier production process consistency to ensure uniform module dimensions and material quality;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MB-GRN-OR-3SEC

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MB-GRN-OR-3SEC

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MB-GRN-OR-3SECOpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

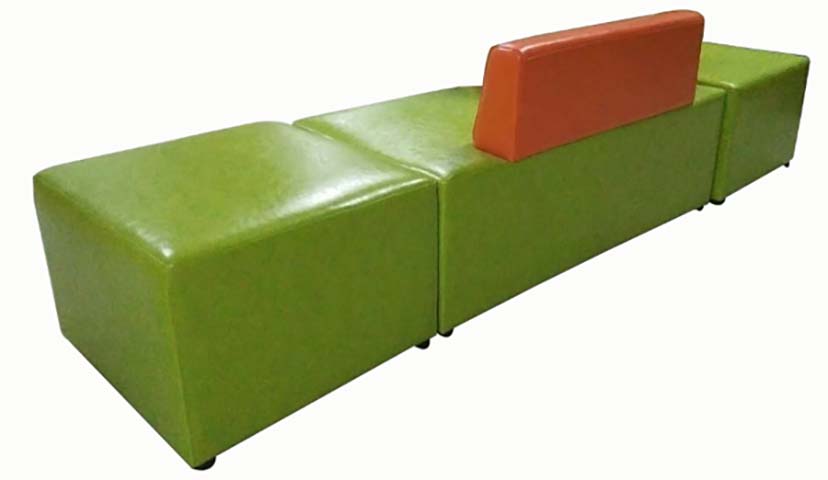

The Modular 3-Section Upholstered Bench with Single Backrest is a streamlined commercial waiting bench designed for flexible, high-traffic use. It features three equal-width seat sections aligned in a straight, low-profile block form, with a single padded backrest mounted to the middle section for partial lumbar support for one central seating position. The two-tone design pairs glossy lime green faux leather on all seat surfaces with a coordinating glossy orange faux leather backrest, accented by flush, tight seams between modules with no visible connecting hardware for a clean, modern look. Built to withstand frequent public use, the bench uses a solid wood internal frame reinforced with corner blocking, topped with high-density, high-resilience polyurethane foam padding that retains its form under regular use. All upholstered surfaces are finished in smooth, semi-gloss PVC faux leather with a wipeable, water and stain-repellent coating, resistant to scuffs and abrasion from regular contact with clothing, bags and daily use. Each module is fitted with four non-marking black injection-molded polypropylene floor glides that distribute weight evenly, prevent unintended sliding, and protect hard flooring from scuffs, while heavy-gauge zinc-plated steel brackets secure modules together to avoid shifting during use. Functionally, the bench supports adaptable layout planning: individual seat modules can be disconnected and rearranged into straight, L-shaped or staggered configurations without specialized tools, with two people able to reposition units as needed for events or changing space requirements. The smooth non-porous upholstery cleans easily with water or mild disinfectant, supporting regular sanitization routines. The bench accommodates up to three adult users, with a seat height aligned to ergonomic posture for most adults and sufficient seat depth for full thigh support. This bench fits a wide range of commercial and public spaces, including office reception and waiting areas, public service halls in government or bank facilities, outpatient waiting zones in healthcare settings, retail customer rest areas, casual office breakout spaces, and early education or childcare facilities. Its bright, contemporary color palette complements modern interior design, while its compact linear footprint avoids obstructing pedestrian walkways. For procurement teams, note that final material specifications including frame details, foam density and exact upholstery thickness require supplier bill of materials confirmation prior to purchase. The product ships as three separate cartons, one per module, with protective packaging to reduce transit damage, and requires minimal on-site assembly to connect modules and attach the backrest.
