Automatic mm / inch conversion · Core engineering specifications
| 3-seat sofa overall dimensions | 2000 x 800 x 720 mm | |
|---|---|---|
| Loveseat overall dimensions | 1500 x 800 x 720 mm | |
| Armchair overall dimensions | 850 x 800 x 720 mm | |
| Seat height from floor | 420 mm | |
| Seat depth | 550 mm | |
| Backrest height above seat | 300 mm | |
| Armrest height from floor | 620 mm | |
| Metal frame leg height | 120 mm | |
| Seat cushion thickness | 120 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| 3-seat sofa net weight | 75 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Total set seating capacity | 6 persons | |
| Seat foam density | 40 kg/m³ | |
| Foam rebound rate | 45% | |
| Surface upholstery abrasion resistance | 50000 cycles | |
| Seam tensile strength | 120 N | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Outer upholstery | Black smooth matte upholstery (faux leather or top-grain leather optional) | |
|---|---|---|
| Seat core padding | High-resilience polyurethane foam | |
| Backrest padding | High-resilience polyurethane foam with soft top layer | |
| Inner support frame | 15mm thick multi-layer plywood | |
| Support base frame | 1.5mm thick chrome-plated square steel tube | |
| Frame feet | Polished chrome-plated steel with non-slip rubber floor pads | |
| Seat division stitching | Reinforced polyester thread with 8mm stitch pitch | |
| Armrest structure | Integral padded armrest matching seat upholstery over plywood core | |
| Seam construction | Reinforced polyester core thread, 8mm stitch pitch, double-stitched stress points | |
| Adhesive materials | Low-VOC water-based adhesive for foam and upholstery bonding, formaldehyde-free formulation | |
| Frame undercoating | Anti-rust electrophoretic primer under chrome plating to prevent corrosion from regular cleaning | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
| Fixed integrated seating | Individual divided seat cushions for 3-seat, loveseat and armchair units, no recline or adjustable components | |
|---|---|---|
| Cantilever base clearance | 120mm open floor clearance under seat base to allow standard cleaning tools and robot vacuums access | |
| Floor protection | Non-slip rubber pads installed at all steel frame contact points to prevent scratching hard flooring and reduce movement noise | |
| Modular set configuration | Three independent units can be arranged in U-shape, L-shape or linear layouts to fit different reception room dimensions | |
| Easy surface maintenance | Smooth non-porous upholstery surface can be wiped clean with damp cloth and mild detergent for daily upkeep | |
| Structural stability | Four-point cantilever steel frame distributes weight evenly across all corners to eliminate wobble during regular use | |
| Fixed static seating | Individual divided seat cushions for all units, no recline, swivel or adjustable components, designed for stationary reception use | |
| Modular arrangement flexibility | Three independent freestanding units can be arranged in U-shape, L-shape or linear layouts to fit reception rooms from 12sqm to 30sqm | |
| Shape retention | High-resilience foam core retains 95% of original thickness after 5000 hours of continuous regular use | |
| Noise reduction | Padded upholstery and rubber foot pads reduce impact noise from users sitting or adjusting position to below 40dB | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 3 cartons | |
|---|---|---|
| 3-seat sofa carton dimensions | 2050 x 850 x 600 mm | |
| Loveseat carton dimensions | 1550 x 850 x 600 mm | |
| Armchair carton dimensions | 900 x 850 x 600 mm | |
| Total shipment gross weight | 190 kg | |
| Total shipment volume | 2.25 CBM | |
| On-site assembly time | 40 minutes | |
| 20ft GP container loading quantity | 18 sets | |
| 40ft HQ container loading quantity | 45 sets | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
| Corporate office reception areas | Suitable for visitor waiting spaces in office lobbies, meeting room anterooms and executive reception zones, professional minimalist appearance matches modern office decor | |
|---|---|---|
| Commercial public waiting spaces | Applicable for bank waiting areas, hotel lobbies, car showroom customer areas and service center waiting zones, durable upholstery supports high-traffic daily use | |
| Executive private office use | Can be configured as a single sofa or armchair in executive offices for informal guest meetings, compact footprint leaves open floor space | |
| Co-working and shared workspace common areas | Modular arrangement fits flexible co-working lounge spaces, easy to reposition and clean between different user groups | |

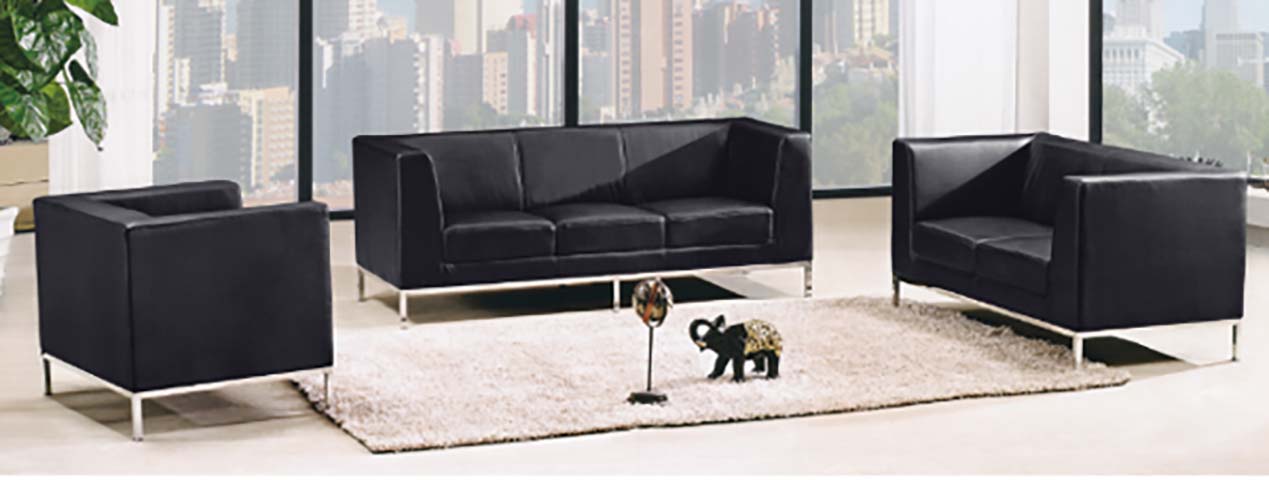

| Recommended matching furniture | Pairs with low-profile glass or stone-top coffee tables, 450 mm height, placed on area rugs as shown in the product display | |
| Corporate office reception lobbies | Suitable for visitor waiting spaces in main office lobbies, meeting room anterooms and executive reception zones, minimalist black and chrome design matches modern commercial office decor | |
| Commercial public waiting areas | Applicable for bank branch waiting zones, hotel lobbies, car showroom customer areas and administrative service center waiting spaces, durable upholstery supports 200+ daily user cycles | |
| Executive private office spaces | Can be configured as a single loveseat or armchair in executive offices for informal 2-person guest meetings, 800mm depth leaves sufficient open floor space in 15sqm offices |
EU Market Access Requirements* EN Standards
| EN 1335-2:2018 Office furniture - Office work chair - Part 2: Safety requirements | Applicable as reference for structural safety and stability requirements for commercial office seating | |
|---|---|---|
| EN 1022:2018 Domestic furniture - Seating - Determination of stability | Applicable for stability testing of all three seating units to prevent tipping during regular use | |
| EN 12520:2015 Furniture - Strength, durability and safety - Requirements for domestic seating | Applicable as reference for structural strength and durability requirements for commercial reception seating |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applicable for acceptance of internal plywood frame structural strength and dimensional tolerance | |
|---|---|---|
| GB/T 16799-2008 Furniture leather | Applicable for acceptance of leather or faux leather upholstery material properties, abrasion resistance and color fastness | |
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood furniture | Applicable for formaldehyde emission testing of internal plywood frame and adhesive materials | |
| GB/T 35456-2017 Office furniture seating for reception use | Applicable for overall structural stability, load capacity and durability testing of reception seating products |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable for acceptance of internal plywood frame structural strength and dimensional tolerance; 2. GB/T 16799-2008 Furniture leather: Applicable for acceptance of leather or faux leather upholstery material properties, abrasion resistance and color fastness; 3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood furniture: Applicable for formaldehyde emission testing of internal plywood frame and adhesive materials; 4. GB/T 35456-2017 Office furniture seating for reception use: Applicable for overall structural stability, load capacity and durability testing of reception seating products; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
