Product supplierUpholstered Three-Seat Lounge Sofa with Square Arms and Metal Legs, Woven polyester-blend textile over the entire visible seat, arms and back
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2200 × 900 × 750 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 52 kg | |
|---|---|---|
| Recommended total static load | 300 kg | |
| Single-seat static load | 120 kg | |
| Seating capacity | 3 persons | |
| Backrest lateral load | 90 kg per seat position | |
| Fabric abrasion acceptance | 50,000 Martindale cycles | |
| Foam indentation hardness | 38 kg/m3 seat foam density | |
| Back cushion foam density | 30 kg/m3 | |
| Daily use cycle target | 100,000 seat-and-rise cycles | |
| Structural warranty acceptance | 5 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Woven polyester-blend textile over the entire visible seat, arms and back | |
|---|---|---|
| Seat cushion | High-resilience polyurethane foam, 160 mm thick, wrapped with soft fiber | |
| Back cushions | Dual fiber-wrapped foam cushions, 140 mm thick, in matching fabric covers | |
| Inner frame | Kiln-dried hardwood and engineered-board structural frame with screwed joints | |
| Support legs | Four black powder-coated steel legs with a slim rectangular profile | |
| Seat suspension | Elastic webbing deck over timber rails beneath the foam cushion |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating layout | Continuous three-seat open lounge configuration without center arm dividers | |
|---|---|---|
| Back support | Fixed low back with two removable matching cushion pads | |
| Floor support | Rigid metal-leg base with open under-seat clearance of 100 mm | |
| Placement use | Freestanding placement with fully upholstered front and arms |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.

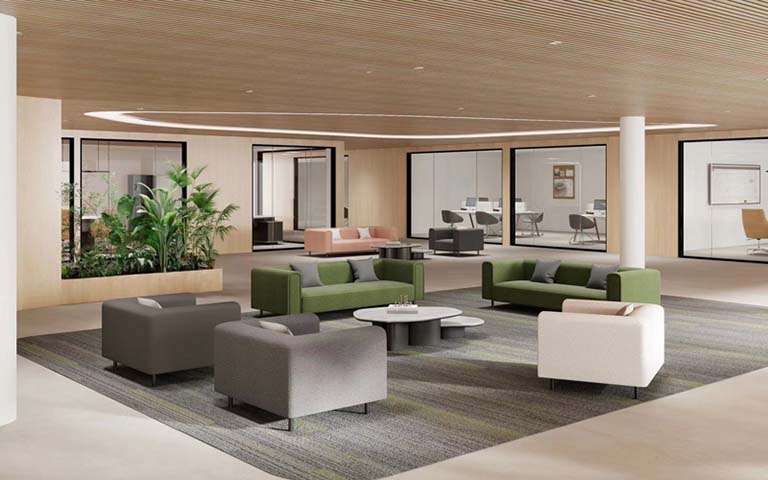

| Primary space | Open office lounges, collaboration zones and hospitality waiting areas | |
|---|---|---|
| Recommended pairing | Face the sofa with armchairs and a low oval coffee table |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
