Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions (W x D x H) | 1850 x 780 x 750 mm | |
|---|---|---|
| Seat height from floor | 430 mm | |
| Seat depth (front edge to back face) | 580 mm | |
| Seat cushion thickness | 120 mm | |
| Backrest height above seat surface | 320 mm | |
| Armrest width | 120 mm | |
| Armrest height from floor | 600 mm | |
| Metal base frame profile | 30 x 30 mm square tube | |
| Leg clearance under sofa | 80 mm | |
| Backrest cushion thickness | 100 mm | |
| Floor clearance under sofa | 80 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Product net weight | 58 kg | |
|---|---|---|
| Total static seat load capacity | 450 kg | |
| Seat cushion foam density | 38 kg/m³ | |
| Fabric Martindale abrasion resistance | 50000 cycles | |
| Recommended maximum continuous occupancy | 3 adults | |
| Foam compression set resistance | 92% rebound | |
| Stainless steel frame static load rating | 600 kg | |
| Standard color options | 6 | |
| Back cushion foam density | 35 kg/m³ | |
| Steel base static load rating | 600 kg |
Core acceptance fields · Panels / hardware / frame / upholstery
| External upholstery | Polyester-blend woven fabric, matte light grey finish | |
|---|---|---|
| Seat cushion core | High-density polyurethane foam, wrapped with 20mm soft polyester batting | |
| Backrest cushion core | Medium-density polyurethane foam, 32kg/m³ reference density | |
| Internal structural frame | Kiln-dried solid hardwood with plywood reinforcement, 25mm thick member reference | |
| External support base | Polished 304-grade stainless steel square tube frame, brushed finish | |
| Seam construction | Reinforced double stitching, 8mm seam pitch | |
| Armrest internal structure | Padded wood frame wrapped in foam and fabric, squared box profile | |
| Foot glides | Non-marking rubber-padded steel glides | |
| Seat support system | 80mm wide elastic webbing, spaced 60mm apart, secured to frame with metal staples | |
| Floor contact glides | Non-marking rubber-padded steel glides, fitted to all base frame leg ends | |
| Internal joint fasteners | Zinc-plated steel screws and corner brackets, glued and stapled joint connections | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% |
Adjustment / rotation / tilt / mobility / storage features
| Fixed-seat reception configuration | Non-reclining, fixed upright seating geometry with mid-back support, optimized for short-duration waiting in public commercial spaces | |
|---|---|---|
| Open sled base design | Continuous polished metal frame perimeter with 80mm floor clearance, allows cleaning access for robotic vacuums and mops under the entire unit | |
| Integrated wide armrest support | 120mm wide padded armrests on both sides, support arm weight and provide a surface for placing small personal items like mobile phones | |
| Modular grouping compatibility | Matching dimensions with coordinating single-seat armchairs and coffee tables, supports flexible linear or clustered reception area layouts | |
| Non-removable cushion design | Seat and back cushions are secured to the frame to prevent shifting during daily public use | |
| Floor protection function | Rubber glides at all base contact points prevent scratches to wood, tile and polished stone flooring, no additional protective pads required | |
| Fixed upright seating configuration | Non-reclining fixed back angle of 105 degrees from seat surface, optimized for short-duration waiting in public commercial spaces; no visible adjustment mechanisms consistent with fixed reception seating design | |
| Open perimeter base design | Continuous steel frame with 80mm floor clearance, allows full access for robotic vacuums, mops and cleaning tools under the entire sofa unit; open structure visible in the reference scene | |
| Integrated padded armrest support | 120mm wide padded armrests on both sides, positioned at 610mm floor height to support arm weight and provide a stable surface for small personal items such as mobile phones or drinks; squared arm profile visible in reference imagery | |
| Modular set compatibility | Matching design dimensions with coordinating single-seat armchairs and coffee tables, supports linear, L-shaped or clustered reception area layout configurations; visible as part of a coordinated seating set in the auto showroom scene | |
| Fixed cushion attachment | Seat and back cushions are permanently secured to the internal frame with hidden fasteners to prevent shifting or displacement during daily public use; no visible zippers or removable cushion panels consistent with high-traffic commercial design | |
| Stain-resistant surface performance | Tight-woven upholstery fabric with stain-repellent treatment allows liquid spills to be wiped clean with a damp cloth without permanent staining, suitable for unsupervised public waiting areas; engineering for commercial-grade fabric treatment |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 1 | |
|---|---|---|
| Reference carton dimensions (L x W x H) | 1900 x 830 x 800 mm | |
| Reference shipping gross weight | 68 kg | |
| Reference per-unit shipping volume (CBM) | 1.26 CBM | |
| On-site assembly time | 20 minutes | |
| 40ft HQ container loading quantity | 54 units | |
| Standard packaging materials | 5-layer corrugated carton, EPE foam wrap, hard corner protectors, plastic strapping, included installation hardware kit | |
| Reference per-unit shipping volume | 1.36 CBM | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Automotive showroom customer waiting areas | Formal neutral grey design coordinates with professional display spaces, durable fabric withstands daily customer traffic | |
|---|---|---|
| Corporate office reception lobbies | Clean box-style design matches modern office interiors, 3-seat format provides guest seating for entry waiting zones | |
| Bank and public service waiting areas | Fixed durable construction and easy-to-clean fabric surfaces support high-volume daily public use, robust frame resists damage from frequent use | |
| Hotel lobby lounge zones | Sleek stainless steel base and neutral upholstery coordinates with contemporary hotel decor, can be grouped with matching armchairs for flexible seating arrangements | |
| Co-working space common areas | Compact footprint fits in open lounge zones, easy floor access under the base simplifies routine cleaning in shared spaces | |

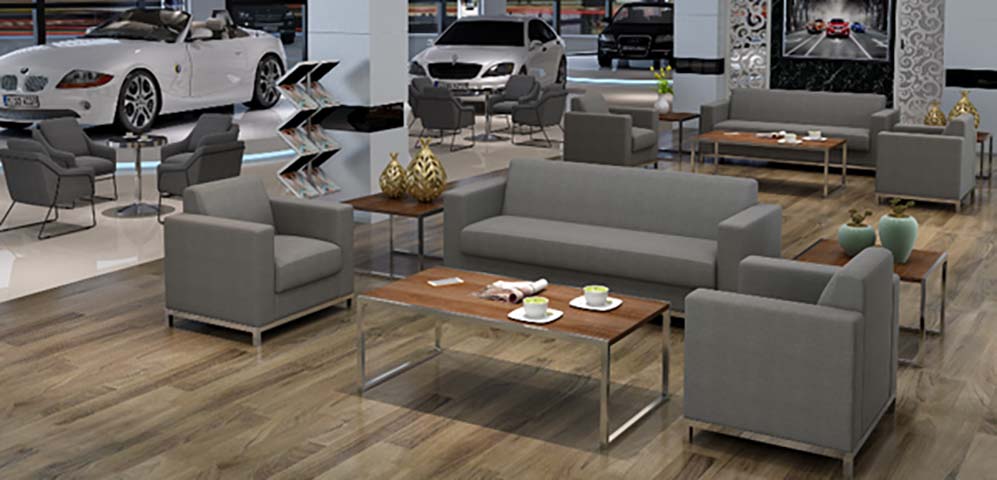

| Automotive dealership customer waiting areas | Neutral grey finish and polished metal base coordinate with premium showroom interiors, durable high-abrasion fabric withstands daily foot traffic from service and sales customers; visible deployed in an auto showroom environment in the reference image | |
| Bank and public service hall waiting areas | Fixed non-removable cushion construction resists tampering and damage, stain-repellent fabric supports easy cleaning of spills from high-volume public use; robust frame construction withstands frequent heavy use in unsupervised public spaces | |
| Medical clinic waiting rooms | Easy-to-clean upholstery and stable fixed construction supports high daily patient and visitor volume, non-marking glides protect clinic flooring from scuffs during reconfiguration; upright posture suitable for short wait times in clinical environments |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating, applicable for commercial reception sofa load and durability verification | |
|---|---|---|
| EN 1022:2018 | Furniture - Seating - Determination of stability, applicable for testing sofa anti-tip performance during normal use | |
| EN 13501-1:2018 | Fire classification of construction products, applicable for verifying fabric flammability rating for commercial public space installation |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for quality verification of internal hardwood frame, dimensional stability and structural safety | |
|---|---|---|
| GB 20400-2006 | Limit of harmful substances in leather and fur, applicable for testing formaldehyde and harmful chemical content of upholstery fabrics | |
| GB/T 19001-2016 | Quality management system requirement, recommended for supplier production quality control verification | |
| GB/T 17657-2013 | Test methods for evaluating surface wear resistance, adhesion and durability of wood-based and upholstered furniture components | |
| GB 18401-2010 | National general safety technical code for textile products, applicable for testing formaldehyde, pH value and harmful dye content of upholstery fabric; procurement acceptance recommendation, confirm against supplier test report | |
| GB 20286-2006 | Fire performance requirements and labeling for public place furnishings, applicable for verifying fabric and foam flammability ratings for commercial public space installation; procurement acceptance recommendation, confirm against supplier test report |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for quality verification of internal hardwood frame, dimensional stability and structural safety; 2. GB 20400-2006: Limit of harmful substances in leather and fur, applicable for testing formaldehyde and harmful chemical content of upholstery fabrics; 3. GB/T 19001-2016: Quality management system requirement, recommended for supplier production quality control verification; 4. GB/T 17657-2013: Test methods for evaluating surface wear resistance, adhesion and durability of wood-based and upholstered furniture components; 5. GB 18401-2010: National general safety technical code for textile products, applicable for testing formaldehyde, pH value and harmful dye content of upholstery fabric; procurement acceptance recommendation, confirm against supplier test report; 6. GB 20286-2006: Fire performance requirements and labeling for public place furnishings, applicable for verifying fabric and foam flammability ratings for commercial public space installation; procurement acceptance recommendation, confirm against supplier test report; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
