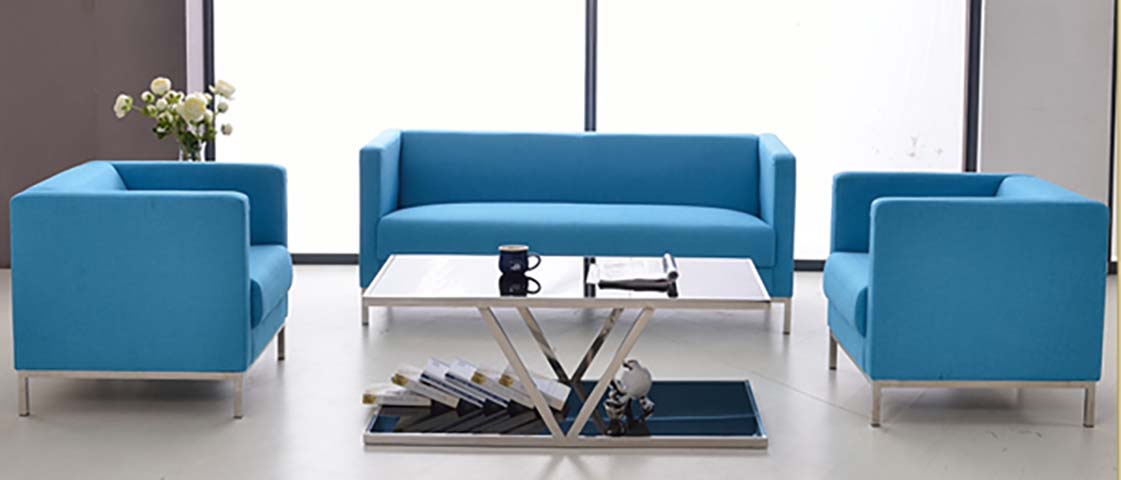

Modern Blue Fabric Office Reception Seating Set with Glass Coffee Table - Dimensions

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

3-seater sofa overall dimensions	1800 x 750 x 720 mm
Single armchair overall dimensions	820 x 720 x 720 mm
Coffee table overall dimensions	1200 x 600 x 450 mm
Seat height from floor	420 mm
Seat depth for all seating units	680 mm
Armrest height from floor	620 mm
Backrest height above seat	300 mm
Lower coffee table shelf clearance	150 mm
Sofa/armchair leg height	120 mm
Coffee table glass top thickness	12 mm
Upholstered arm width	120 mm
Lower coffee table storage shelf internal depth	480 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

3-seater sofa net weight	58 kg
Per-seat static load capacity	150 kg
Fabric abrasion resistance (Martindale)	30000 cycles
Seat foam density	35 kg/m³
Recommended seating capacity for full set	5 people
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg
Caster Rolling Durability Reference	Acceptance target 30000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seating upholstery fabric	Matte blue polyester woven fabric
Seat cushion core	High-density polyurethane foam
Back cushion core	Medium-density polyurethane foam
Seating internal frame	Kiln-dried solid hardwood with plywood reinforcement
Seating support legs	Brushed 201 stainless steel cylindrical legs
Coffee table top surface	12mm clear tempered glass
Coffee table frame and legs	Brushed 201 stainless steel tubular frame
Coffee table lower shelf	Smoked dark tempered glass
Upholstery stitching	Matching blue polyester thread with 8mm stitch pitch
Floor protection glides	Injected nylon non-marking glides
Seating support system	40mm wide elastic webbing, 50mm spacing under seat cushions
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Fixed-position reception seating	All sofa and armchair units are fully assembled with no recline, swivel or adjustment mechanisms, designed for static guest seating in public reception areas
Two-tier coffee table storage	Upper glass tabletop provides a flat surface for drinkware, documents and decor, while lower smoked glass shelf provides open accessible storage for magazines, catalogs and reading materials
X-brace table structural support	Stainless steel X-shaped cross brace connects upper and lower table shelves to eliminate frame wobble and distribute weight evenly across all four support points
Elevated seating clearance	120mm leg height provides full under-seat clearance for standard vacuum cleaners and cleaning tools, enabling easy routine maintenance in high-traffic office areas
Non-marking floor protection	Nylon glides fitted to the base of all metal legs prevent scratches, scuffs and indentation on hard tile, vinyl and polished concrete office floors
Removable seat cushion design	Seat cushions are fitted with hook-and-loop fasteners to prevent sliding during use, and can be lifted for cleaning or replacement without disassembling the main frame
Modular set layout flexibility	All three seating units and the coffee table are freestanding, allowing reception layout adjustment for different room sizes without permanent floor fixing
Recline Angle / Lock Reference	125° with 3 suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons	5 ctns
Largest shipping carton dimensions	1850 x 800 x 650 mm
Total shipping gross weight	140 kg
Total shipping volume	1.3 CBM
On-site assembly time	40 minutes
Standard 40HQ container loading quantity	52 sets
Packaging materials	5-layer corrugated carton, 20mm EPE foam wrap, corner protectors, poly bags for hardware
Warranty period	3 years
Available upholstery color options	6 colors
Reference Package Count	1 set / 2 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Corporate office reception areas	Suitable for entry lobbies and guest waiting zones with its compact footprint and professional clean-lined aesthetic, accommodating up to 5 visitors for short wait times
Small meeting and breakout spaces	Appropriate for informal team discussion areas and collaborative breakout zones where low-profile, comfortable seating supports relaxed group conversation
Co-working space common areas	Ideal for shared co-working lounge areas with high foot traffic, as durable fabric and stainless steel framing withstand frequent daily use from rotating users
Healthcare and clinic waiting rooms	Suitable for outpatient clinic waiting areas where easy-clean upholstery and stable fixed seating meet public waiting room durability requirements
Hotel business center guest areas	Fits hotel business center and executive lounge seating layouts, providing a modern polished appearance matching contemporary hospitality interior design
Serviced apartment entry lounges	Appropriate for serviced apartment and short-term rental lobby seating as compact dimensions work well in smaller entry spaces without overcrowding
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1022:2018	Domestic furniture - Seating - determination of stability, applicable for verifying stability of all reception seating units under normal use loads
EN 12520:2015	Furniture - strength, durability and safety - requirements for domestic seating, applicable as a minimum structural strength benchmark for commercial reception seating
EN 13722:2004	Furniture - tables - test methods for stability, applicable to the two-tier coffee table for stability verification under uneven load
EN 1021-1:2014	Furniture - assessment of the ignitability of upholstered furniture - Part 1: ignition source smouldering cigarette, recommended fire safety standard for public area seating
EN 12600:2002	Glass in building - pendulum test - impact test method and classification for flat glass, applicable to tempered glass table and shelf components for impact safety

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020	Lounge and Public Seating standard, applicable for structural strength, durability and stability testing of reception sofa and armchair units for commercial office use
ANSI/BIFMA X5.5-2021	Desk Products standard, applicable to the reception coffee table for structural load, stability and durability requirements in office environments
ANSI/BIFMA X7.1-2011	Standard for Formaldehyde and TVOC Emissions of Low-emitting Office Furniture Systems and Seating, recommended for indoor air quality acceptance for commercial office installations

STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to the internal hardwood frame construction of all upholstered seating units for structural stability and safety
GB 18584-2001	Indoor decoration and refurbishing materials - limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing of internal plywood and frame materials
GB/T 19941-2005	Leather and fur - determination of formaldehyde content, applicable to fabric upholstery for restricted harmful substance testing
GB/T 24821-2009	Office furniture - tables and desks, applicable to the coffee table for structural stability, edge finishing and safety requirements
GB 17927.1-2011	Upholstered furniture - assessment of the ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette, recommended for fire safety acceptance of seating in public office spaces
GB/T 17592-2011	Textiles - Determination of banned azo colourants, applicable to fabric upholstery for restricted harmful substance testing

Standard Tender Description

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to the internal hardwood frame construction of all upholstered seating units for structural stability and safety;
2. GB 18584-2001: Indoor decoration and refurbishing materials - limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing of internal plywood and frame materials;
3. GB/T 19941-2005: Leather and fur - determination of formaldehyde content, applicable to fabric upholstery for restricted harmful substance testing;
4. GB/T 24821-2009: Office furniture - tables and desks, applicable to the coffee table for structural stability, edge finishing and safety requirements;
5. GB 17927.1-2011: Upholstered furniture - assessment of the ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette, recommended for fire safety acceptance of seating in public office spaces;
6. GB/T 17592-2011: Textiles - Determination of banned azo colourants, applicable to fabric upholstery for restricted harmful substance testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
