Automatic mm / inch conversion · Core engineering specifications
| Overall 3-seater sofa dimensions | 2100 x 820 x 760 mm | |
|---|---|---|
| Single armchair overall dimensions | 850 x 820 x 760 mm | |
| Large coffee table overall dimensions | 1300 x 750 x 450 mm | |
| Side end table overall dimensions | 600 x 600 x 550 mm | |
| Seat height from floor | 420 mm | |
| Seat depth (usable surface) | 580 mm | |
| Backrest height above seat | 340 mm | |
| Armrest height above floor | 620 mm | |
| Armrest width | 120 mm | |
| Metal frame tube diameter | 25 mm | |
| Coffee table tempered glass thickness | 12 mm | |
| Lower shelf clearance on coffee table | 220 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Total set weight (all 5 pieces) | 165 kg | |
|---|---|---|
| 3-seater sofa static load capacity | 450 kg | |
| Foam seat cushion density | 38 kg/m³ | |
| Seat foam thickness | 80 mm | |
| Backrest foam thickness | 50 mm | |
| Seam stitch pitch | 8 stitches per 30 mm | |
| Chrome frame rust resistance service life | 5 years | |
| Total set net weight (all 5 pieces) | 165 kg | |
| Seat cushion foam density | 38 kg/m³ | |
| Seat cushion core foam thickness | 80 mm |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seating upholstery | Burgundy dark red polyurethane faux leather | |
|---|---|---|
| Seat cushion core | High resilience polyurethane foam | |
| Backrest core | Medium density polyurethane foam | |
| Seating support frame | 1.2 mm thick cold rolled steel tube | |
| Coffee table top | 12 mm thick brown tinted tempered glass | |
| Coffee table frame and lower shelf | Polished chrome plated stainless steel support posts with mirror finish steel lower shelf | |
| Side end table top and shelf | Smoke grey tempered glass top with chrome plated steel frame and lower shelf | |
| Tufting hardware | Fabric covered buttons and internal steel securing wires | |
| Foot glides | Non-marking plastic floor protection glides | |
| Seating inner support frame | 1.2mm thick cold rolled steel square tube, polished chrome plated finish | |
| Large coffee table top | 12mm thick brown tinted tempered safety glass | |
| Large coffee table support and shelf | 50mm diameter polished chrome plated stainless steel support posts, 8mm thick mirror finish chrome plated steel lower shelf |
Adjustment / rotation / tilt / mobility / storage features

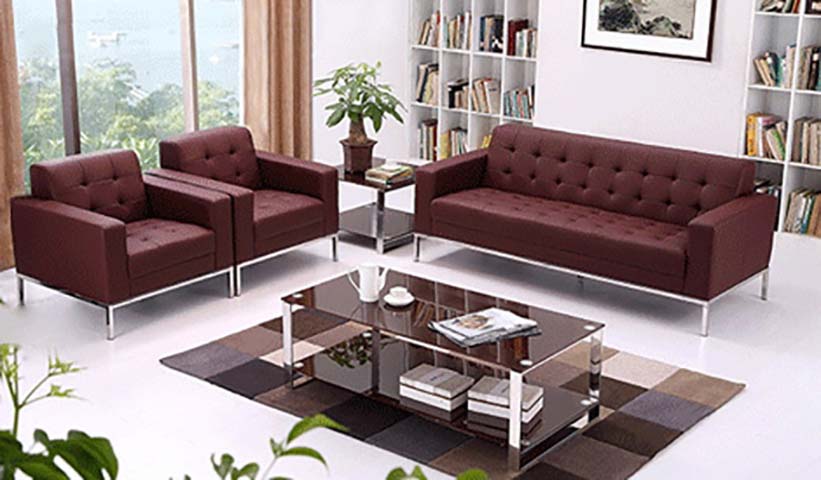

| Seating configuration | 5-piece modular set including 1 three-seater sofa, 2 matching single armchairs, 1 large rectangular coffee table and 1 square side table | |
|---|---|---|
| Seating back support | Fixed upright button-tufted backrest with 3-column tuft grid on armchairs and 5-column tuft grid on 3-seater, no recline function | |
| Coffee table storage | Two-tier open design with upper serving surface and lower open storage shelf for books and magazines | |
| Side table function | Two-tier open side table for placing decorative plants, reading materials and beverage service between seating units | |
| Frame stability | Continuous chrome sled base frame with four support contact points per seating unit, no assembly required for base structure | |
| Floor protection | Integrated non-scuff glides on all leg bottoms suitable for hard tile, vinyl and low pile carpet office flooring | |
| Upholstery maintenance | Smooth non-porous faux leather surface supports wiping clean with standard mild office cleaning products | |
| Coffee table storage function | Two-tier open design with upper serving surface and lower open storage shelf with 220mm vertical clearance | |
| Side table utility function | Two-tier open design with 180mm vertical clearance between shelves, positioned to serve adjacent armchair and 3-seater | |
| Frame stability function | Continuous chrome sled base frame with 4 floor contact points per seating unit, welded joint construction | |
| Floor protection function | Integrated non-scuff plastic glides on all frame leg contact points | |
| Upholstery maintenance function | Smooth non-porous faux leather surface compatible with standard mild office disinfectant cleaning products |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 7 cartons | |
|---|---|---|
| 3-seater sofa carton dimensions | 2150 x 870 x 420 mm | |
| Single armchair carton dimensions (per unit) | 900 x 870 x 420 mm | |
| Large coffee table carton dimensions | 1350 x 800 x 200 mm | |
| Side end table carton dimensions | 650 x 650 x 180 mm | |
| Total shipping gross weight | 195 kg | |
| Total shipment volume | 1.78 CBM | |
| Required assembly time | 60 minutes | |
| 20ft GP container loading quantity | 32 sets | |
| 40ft HQ container loading quantity | 82 sets |
Recommended spaces / users / usage modes
| Corporate office reception areas | Formal matching seating set for visitor waiting rooms, providing consistent professional appearance for guest greeting and short wait seating | |
|---|---|---|
| Executive office lounge zones | Compact comfortable seating arrangement for private office meeting areas supporting small 4-person informal discussions | |
| Public service lobby spaces | Durable easy-to-clean upholstery and metal frame construction suitable for high foot traffic government, bank or hotel lobby waiting areas | |
| Meeting room breakout areas | Casual seating outside formal conference rooms for break time discussions or post-meeting conversations | |
| Small business waiting rooms | Space efficient 3+1+1 layout fits in compact reception spaces without crowding walkways or entry points | |
| Recommended matching accessories | Pair with low pile commercial carpet tiles, wall mounted art and potted green plants to complete a polished formal office reception aesthetic | |
| Corporate office reception waiting areas | Formal coordinated seating set for visitor waiting rooms, providing consistent professional appearance for guest greeting and 30-minute average wait seating for up to 5 users | |
| Executive office informal lounge zones | Compact comfortable seating arrangement for private office meeting areas supporting 5-person informal discussions and short guest meetings |
EU Market Access Requirements* EN Standards
| Office furniture strength recommendation | EN 16139:2013 Furniture - Strength, durability and safety - Requirements for non-domestic seating applicable for commercial office reception use | |
|---|---|---|
| Upholstered furniture fire safety recommendation | EN 1021:2014 Furniture - Assessment of ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette applicable for public area fire compliance | |
| Tempered glass safety recommendation | EN 12150:2015 Glass in building - Thermally toughened soda lime silicate safety glass - Part 1: Definition and description applicable for glass table components | |
| Non-domestic seating strength recommendation | EN 16139:2013 Furniture - Strength, durability and safety - Requirements for non-domestic seating |
US and Canada office-furniture standards
| Office seating performance recommendation | ANSI/BIFMA X2017 General Purpose Office Chairs - Tests applicable for structural durability of reception seating units | |
|---|---|---|
| Occasional table performance recommendation | ANSI/BIFMA X2021 Desk Products - Tests applicable for strength and stability of glass coffee and side tables | |
| Lounge seating performance recommendation | ANSI/BIFMA X2021 Lounge Seating - Tests |
Standards applicable to China-market projects
| Upholstered furniture safety recommendation | GB/T 3324 General technical requirements for wooden furniture applicable for inner frame structural performance verification | |
|---|---|---|
| Upholstered furniture durability recommendation | GB/T 19524.1 Test for strength and durability of seating furniture applicable for seat and back static and fatigue load testing | |
| Formaldehyde emission recommendation | GB 18584 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture applicable for all composite board components in inner structure | |
| Tempered glass safety recommendation | GB 15763.2 Safety glazing materials for building - Part 2: Tempered glass applicable for all glass table tops and shelves | |
| Wooden/composite furniture general technical recommendation | GB/T 3324 General technical requirements for wooden furniture | |
| Seating furniture durability recommendation | GB/T 19524.1 Test for strength and durability of seating furniture - Part 1: Seat and back static load and fatigue test |
This product must meet the following technical requirements: 1. Upholstered furniture safety recommendation: GB/T 3324 General technical requirements for wooden furniture applicable for inner frame structural performance verification; 2. Upholstered furniture durability recommendation: GB/T 19524.1 Test for strength and durability of seating furniture applicable for seat and back static and fatigue load testing; 3. Formaldehyde emission recommendation: GB 18584 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture applicable for all composite board components in inner structure; 4. Tempered glass safety recommendation: GB 15763.2 Safety glazing materials for building - Part 2: Tempered glass applicable for all glass table tops and shelves; 5. Wooden/composite furniture general technical recommendation: GB/T 3324 General technical requirements for wooden furniture; 6. Seating furniture durability recommendation: GB/T 19524.1 Test for strength and durability of seating furniture - Part 1: Seat and back static load and fatigue test; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
