Automatic mm / inch conversion · Core engineering specifications

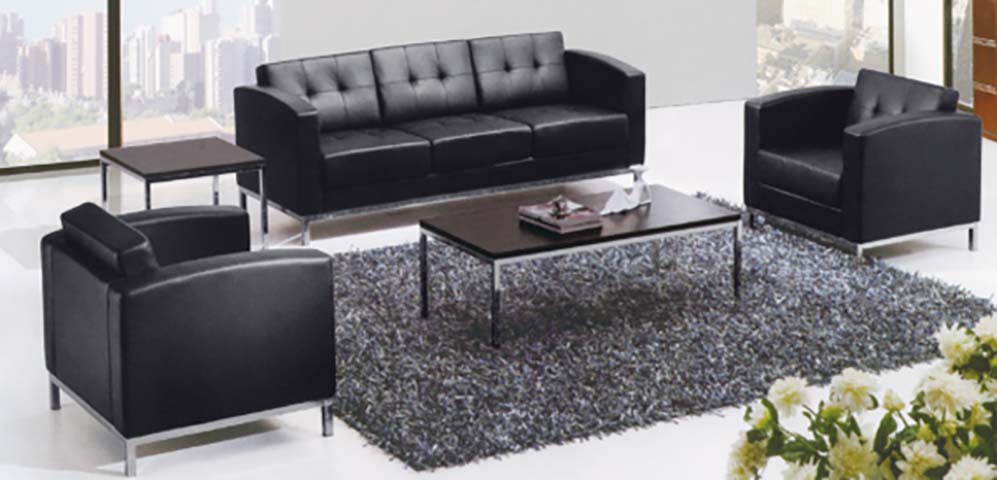

| 3-seat sofa overall dimensions | 2000 x 850 x 780 mm | |
|---|---|---|
| Single armchair overall dimensions | 900 x 820 x 760 mm | |
| Coffee table overall dimensions | 1200 x 700 x 450 mm | |
| Side end table overall dimensions | 600 x 600 x 480 mm | |
| Seat height (floor to top of seat cushion) | 420 mm | |
| Seat cushion depth | 550 mm | |
| Backrest height (seat surface to top of backrest) | 400 mm | |
| Armrest height (floor to top of arm) | 600 mm | |
| Chrome support leg diameter | 30 mm | |
| Table top thickness | 25 mm | |
| Under-seat ground clearance | 120 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| 3-seat sofa net weight | 85 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Upholstery seam stitch density | 8 stitches per 30mm | |
| Recommended maximum user weight per seat | 120 kg | |
| Faux leather upholstery abrasion resistance | 50000 double rubs | |
| Seating structural durability cycle rating | 100000 seat impact cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and back upholstery | Black matte faux leather (PVC) with 1.0mm face thickness | |
|---|---|---|
| Seat cushion padding | 40mm thick high-density polyurethane foam, 35kg/m³ density | |
| Backrest padding | 30mm thick medium-density polyurethane foam, 28kg/m³ density | |
| Seating support frame | 1.2mm thick rectangular steel tube inner frame, powder-coated black | |
| Seating external base and legs | Polished chrome-plated 30mm diameter tubular steel, 1.0mm wall thickness | |
| Table top surfaces | Dark brown matte wood-laminate particleboard core, scratch-resistant melamine finish | |
| Table support legs | Polished chrome-plated 25mm square tubular steel, 1.0mm wall thickness | |
| Backrest detailing | Button-tufted upholstery with matching faux leather covered buttons | |
| Leg floor protection pads | 5mm thick hard polyethylene glides fitted to all leg bases | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | Fully assembled fixed-position lounge seating with integrated wrap-around armrests, no recline or adjustment mechanisms | |
|---|---|---|
| Table function | Hard flat surfaces for holding refreshments, reading materials, and decorative items in reception areas | |
| Floor protection | Hard plastic glides fitted to base of all metal legs to prevent hard floor scratching | |
| Upholstery performance | Faux leather surface is wipe-clean for spill and stain removal in high-traffic public areas | |
| Set modular arrangement | Individual pieces can be arranged in flexible layouts to fit different reception room dimensions | |
| Under-seat clearance | 120mm gap between floor and seat base allows access for robot vacuums and routine cleaning | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Total shipping pieces | 5 pieces (1 3-seat sofa, 2 armchairs, 1 coffee table, 1 side table) | |
|---|---|---|
| Sofa carton dimensions | 2050 x 900 x 650 mm | |
| Single armchair carton dimensions | 950 x 870 x 630 mm | |
| Coffee table carton dimensions | 1250 x 750 x 120 mm | |
| Side table carton dimensions | 650 x 650 x 100 mm | |
| Total shipment gross weight | 210 kg | |
| Total shipment volume | 2.45 CBM | |
| On-site assembly time | 40 minutes | |
| 40ft HQ container loading quantity | 42 sets | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
| Corporate executive reception areas | Formal black tufted design presents a professional appearance for greeting clients and business visitors | |
|---|---|---|
| Office waiting rooms | Durable wipe-clean upholstery and structured seating supports daily high-traffic use by waiting visitors | |
| Executive office lounge zones | Coordinated set of seating and tables creates a cohesive meeting space for informal internal discussions | |
| Hotel business center lobbies | Neutral black and chrome finish coordinates with a range of modern interior design schemes without clashing | |
| Recommended companion configuration | Pair with a low-pile or shag area rug as shown in imagery to define the seating zone and reduce ambient noise | |
| Corporate visitor waiting zones | Structured 420mm seat height provides comfortable upright seating for waits of up to 30 minutes without slouching | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 13761:2002 | Office furniture - Visitor chairs, applicable for structural strength, stability and dimensional requirements for non-adjustable lounge seating | |
|---|---|---|
| EN 15372:2016 | Furniture - Strength, durability and safety - Requirements for non-domestic tables, applicable for coffee and side table load and stability performance | |
| EN 1022:2018 | Furniture - Seating - Determination of stability, applicable for tip-resistance testing of standalone armchairs and sofas |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for laminated wood table top construction and finish performance | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde emission limits for table panel substrates |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for laminated wood table top construction and finish performance; 2. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde emission limits for table panel substrates; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
