Automatic mm / inch conversion · Core engineering specifications

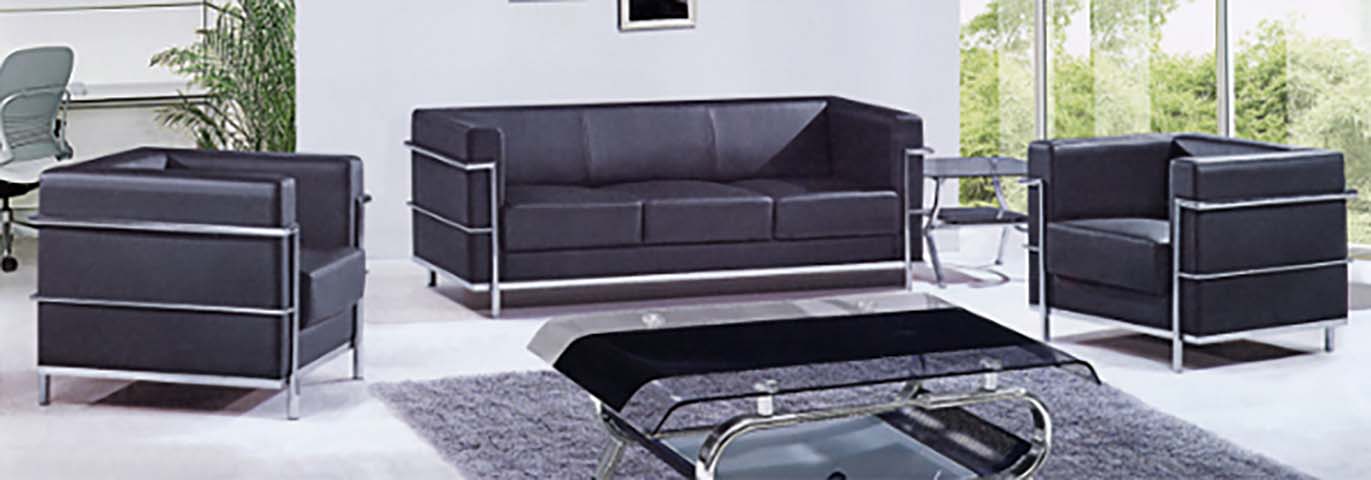

| Overall set configuration | 1 three-seat sofa + 2 single armchairs | |
|---|---|---|
| Three-seat sofa overall dimensions | 1950 x 780 x 720 mm | |
| Single armchair overall dimensions | 880 x 780 x 720 mm | |
| Seat height from floor | 430 mm | |
| Seat depth (usable) | 520 mm | |
| Backrest height above seat | 360 mm | |
| Armrest height from floor | 580 mm | |
| Tubular steel frame diameter | 25 mm | |
| Seat cushion thickness | 120 mm | |
| Backrest cushion thickness | 100 mm | |
| Floor clearance under sofa base | 120 mm | |
| Three-seat sofa individual seat width | 580 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Total set combined weight | 135 kg | |
|---|---|---|
| Per-seat static load capacity | 160 kg | |
| Recommended maximum occupancy per set | 5 people | |
| Foam density (seat cushions) | 45 kg/m³ | |
| Foam density (backrest cushions) | 35 kg/m³ | |
| Foam rebound rate | 45% | |
| Upholstery abrasion resistance (Martindale) | 50000 cycles | |
| Frame static load bearing capacity | 600 kg | |
| Surface scratch resistance rating | Level 3 | |
| Seat foam density | 45 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Upholstery covering | Black matte polyurethane (PU) faux leather, 1.2mm thickness, stitched box panel construction | |
|---|---|---|
| Seat cushion fill | High-resilience polyurethane foam, wrapped in 20g polyester dacron batting | |
| Backrest cushion fill | Medium-density polyurethane foam, wrapped in 20g polyester dacron batting | |
| Structural frame | Polished chrome-plated 25mm diameter cold-rolled steel tubular frame, 1.5mm wall thickness, joined with welded polished connectors | |
| Internal support panel | 12mm thick multilayer plywood seat deck, fixed to steel frame with metal mounting brackets | |
| Foot glides | Hard plastic non-marking adjustable floor glides at base of each vertical frame leg | |
| Stitching detail | Polyester bonded thread, 6 stitches per 30mm seam pitch, matching black thread color | |
| Frame finish | Mirror polished chrome plating, 0.08mm plating thickness, corrosion resistant treatment | |
| Internal seat support deck | 12mm thick multilayer plywood seat panel, fixed to steel frame with metal mounting brackets | |
| Stitching construction | Polyester bonded thread, 6 stitches per 30mm seam pitch, black color matched to upholstery | |
| Frame surface finish | Mirror polished chrome plating, 0.08mm plating thickness, with anti-corrosion pre-treatment | |
| Internal support webbing | 50mm wide elastic webbing, spaced 80mm apart across seat frame under foam |
Adjustment / rotation / tilt / mobility / storage features
| Fixed-position seating design | No recline, swivel, or adjustment mechanisms, intended for stationary guest use in reception spaces | |
|---|---|---|
| Wide padded armrests | Integral upholstered armrests supported by upper horizontal chrome rails, provide stable arm support for seated users | |
| Elevated floor clearance | 120mm gap under seat base allows easy cleaning under units with standard office vacuum cleaners | |
| Modular standalone configuration | Each seating unit is fully independent, can be arranged in any layout to fit reception room dimensions | |
| Stain-resistant upholstery surface | Smooth non-porous PU surface allows wiping clean of spills with standard mild cleaning agents | |
| Non-marking floor protection | Plastic glides at all leg contact points prevent scratching of tile, hardwood, or vinyl office flooring | |
| Mid-back ergonomic support | Backrest height supports the lumbar and mid-back region for upright, comfortable seating during waits of up to 1 hour | |
| Consistent armrest height | 580mm armrest height aligns with standard side table heights for placing drinks or reading materials | |
| Fixed-position stationary design | No recline, swivel, or height adjustment mechanisms, rigid welded frame construction intended for stationary guest use | |
| Integral padded armrests | Upholstered arm surfaces supported by upper horizontal chrome rails, provide stable 80mm wide arm support for seated users | |
| Under-seat cleaning clearance | 120mm open gap under seat base accommodates standard office vacuum cleaners and robot vacuums for routine floor maintenance | |
| Flexible modular layout | Each seating unit is fully self-supporting, can be arranged in linear, clustered, or L-shaped configurations to match reception room dimensions |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 3 cartons total | |
|---|---|---|
| Three-seat sofa carton dimensions | 1980 x 810 x 480 mm | |
| Single armchair carton dimensions | 910 x 810 x 480 mm | |
| Total set shipping gross weight | 160 kg | |
| Total set shipping volume | 1.48 CBM | |
| Assembly time per set | 30 minutes | |
| 20ft GP container loading quantity | 18 sets | |
| 40ft HQ container loading quantity | 45 sets | |
| Packaging protection | 5-layer corrugated carton, 20mm EPE foam wrapping, corner protectors on all frame edges | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
| Corporate office reception areas | Formal professional appearance complements modern office decor, provides comfortable guest seating for waiting visitors | |
|---|---|---|
| Executive lounge areas | Sleek mid-century modern design fits executive office lounges for informal meetings between staff and guests | |
| Conference room perimeter seating | Sturdy fixed construction is suitable for placement along conference room walls to provide overflow seating for large meetings and training sessions | |
| Waiting areas for professional services | Durable easy-clean surface suitable for high-traffic waiting rooms in law firms, banks, medical offices, and consulting firms | |
| Open plan office breakout zones | Modular standalone units can be arranged flexibly in breakout spaces for casual employee collaboration or breaks | |
| Hotel lobby guest seating | Polished chrome and black upholstery matches contemporary hotel lobby design, withstands frequent daily use by hotel guests | |
| Corporate office reception lobbies | Formal black and chrome aesthetic complements modern office decor, provides durable guest seating for waiting visitors with easy cleaning for high foot traffic areas | |
| Executive office lounge spaces | Sleek Bauhaus-inspired design fits executive floor lounges for informal internal meetings and guest hosting, low-profile frame maintains open sight lines across the space |
EU Market Access Requirements* EN Standards
| EN 1335-2:2018 | Applicable standard for office work seating safety requirements, reference for structural stability and load testing of guest seating | |
|---|---|---|
| EN 1022:2018 | Applicable standard for domestic and contract seating stability, specifies test methods to prevent tipping during normal use | |
| EN 12520:2015 | Applicable standard for furniture strength, durability and safety for domestic and contract seating, defines fatigue and static load test levels | |
| EN 13759:2004 | Furniture - Seating - Test methods for the determination of strength and durability of armrests, applies to exposed metal arm frame performance |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB 18584-2001 | Applicable standard for indoor decorating and refurbishing materials - limit of harmful substances in wood-based furniture and finishing materials, sets formaldehyde and heavy metal limits for internal components | |
|---|---|---|
| GB/T 35607-2017 | Applicable green product assessment standard for furniture, specifies low-VOC material requirements for office environments | |
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to internal plywood seat deck structural performance | |
| GB 20400-2006 | Leather and faux leather material safety standard, limits harmful chemical content in PU upholstery |
This product must meet the following technical requirements: 1. GB 18584-2001: Applicable standard for indoor decorating and refurbishing materials - limit of harmful substances in wood-based furniture and finishing materials, sets formaldehyde and heavy metal limits for internal components; 2. GB/T 35607-2017: Applicable green product assessment standard for furniture, specifies low-VOC material requirements for office environments; 3. GB/T 3324-2017: General technical requirements for wooden furniture, applies to internal plywood seat deck structural performance; 4. GB 20400-2006: Leather and faux leather material safety standard, limits harmful chemical content in PU upholstery; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
