Automatic mm / inch conversion · Core engineering specifications
| Overall 3-seat sofa dimensions | 1900 x 750 x 850 mm | |
|---|---|---|
| Single armchair dimensions | 780 x 720 x 870 mm | |
| Coffee table overall dimensions | 1200 x 600 x 450 mm | |
| Seat height (sofa and chairs) | 430 mm | |
| Seat depth (sofa and chairs) | 500 mm | |
| Backrest height (all seating units) | 440 mm | |
| Armrest height above seat | 200 mm | |
| Lower coffee table storage shelf height clearance | 220 mm | |
| Sled frame tube cross-section (seating) | 50 x 25 mm | |
| Tempered glass table top thickness | 10 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Total set weight reference | 152 kg | |
|---|---|---|
| Per-seat static load capacity (sofa and chairs) | 150 kg | |
| Recommended occupancy | 5 persons | |
| Upholstery abrasion resistance reference | 50000 Martindale cycles | |
| Seat foam density | 40 kg/m³ | |
| Back foam density | 30 kg/m³ | |
| Frame finish corrosion resistance | 48 hours neutral salt spray resistance | |
| Total set net weight | 152 kg | |
| Maximum recommended total occupancy | 5 persons | |
| Upholstery abrasion resistance | 50000 Martindale cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seating upholstery | Black matte faux leather (PU leather) | |
|---|---|---|
| Seating frame construction | 1.5mm thick polished chrome-plated cold-rolled steel | |
| Seat cushion core | High-resilience polyurethane foam with density 40kg/m³ | |
| Backrest core | Medium-density polyurethane foam with density 30kg/m³ | |
| Coffee table top | 10mm thick black tempered glass | |
| Coffee table frame | 1.2mm thick matte black powder-coated cold-rolled steel | |
| Lower coffee table shelf | Black textured MDF board with melamine finish | |
| Frame foot pads | Non-slip injection-molded PVC pads | |
| Backrest panel backing | 8mm thick hardboard support panel | |
| Frame foot pads (seating) | Injection-molded non-slip non-marking PVC glides, 5mm thick | |
| Coffee table adjustable feet | 15mm diameter threaded PVC adjustable glides, 10mm adjustment range | |
| Upholstery underlayment | 4mm thick elastic webbing support under seat cushions |
Adjustment / rotation / tilt / mobility / storage features
| Sled frame seating design | Cantilevered steel sled frame provides slight flexible give when seated, no rocking mechanism, fixed upright posture for formal reception settings | |
|---|---|---|

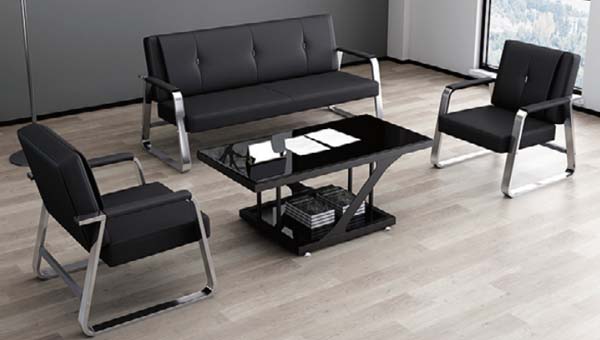

| Dual-level coffee table storage | Upper glass surface holds documents, drinkware and decor; lower open shelf stores books, magazines and office supplies as demonstrated in the product image | |
| Integrated armrest support | Continuous chrome steel armrests run from front seat edge to back frame, providing stable arm support without separate adjustment | |
| Floor protection design | All frame contact points fitted with non-marking PVC glides to prevent scratches on wood, tile and vinyl commercial flooring, no casters for fixed reception placement | |
| Fixed seating configuration | All seating units are fully assembled fixed structures with no folding, tilting or adjustment features, designed for permanent reception area placement | |
| Stain-resistant upholstery surface | Smooth PU leather surface allows wipe cleaning with standard office disinfectants, no fabric weave to trap dust and stains in high-traffic public areas | |
| Z-brace table structural support | Diagonal steel Z-cross bracing connects table legs to top and lower shelf, preventing lateral wobble and increasing overall table frame rigidity | |
| Cantilever sled frame flexibility | Fixed steel sled frame provides 12mm vertical deflection under full load to give slight flexible give when seated, no rocking or reclining mechanism, maintains upright formal reception posture | |
| Floor protection and stability | All seating frame contact points fitted with non-marking PVC glides to prevent scratches on wood, tile and vinyl commercial flooring; coffee table includes threaded adjustable glides to level on uneven floors; no casters for fixed reception placement | |
| Fixed non-adjustable seating configuration | All seating units are fully assembled fixed structures with no folding, tilting, height adjustment or swivel features, designed for permanent reception area placement | |
| Stain-resistant wipe-clean upholstery | Smooth non-porous PU leather surface allows wipe cleaning with standard office disinfectants, no fabric weave to trap dust and stains in high-traffic public areas | |
| Z-brace table anti-wobble support | Diagonal steel Z-cross bracing connects table legs to top frame and lower shelf, limiting lateral frame deflection to less than 2mm under side load to prevent wobble |
Verified carton / gross weight / assembly / loading data
| Total shipping carton count | 5 cartons | |
|---|---|---|
| Sofa shipping carton dimensions | 1950 x 800 x 550 mm | |
| Single armchair carton dimensions (per unit) | 830 x 770 x 520 mm | |
| Coffee table component carton dimensions | 1250 x 650 x 150 mm (glass top), 800 x 650 x 200 mm (frame and hardware) | |
| Total shipping gross weight | 175 kg | |
| Total shipping volume (CBM) | 1.45 m³ | |
| Assembly time | 30 minutes | |
| 20ft GP container loading quantity | 22 sets | |
| 40ft HQ container loading quantity | 56 sets | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
| Corporate office reception lobbies | Formal, professional appearance suitable for greeting clients and visitors, with coordinated seating for up to 5 guests and integrated table for document placement | |
|---|---|---|
| Executive office waiting areas | Polished chrome and black finish complements executive office decor, provides comfortable fixed seating for guests waiting for meetings | |
| Public institution waiting rooms | Durable construction and easy-clean upholstery suitable for high-traffic government, bank or medical office waiting areas with daily visitor turnover | |
| Small conference breakout spaces | Compact footprint allows placement in small meeting breakout zones for informal discussions, with table surface for document and beverage placement | |
| Recommended matching accessories | Pair with commercial-grade floor protectors under frame feet and table legs for wood or tile flooring, add faux leather care kit for long-term upholstery maintenance | |
| Commercial service waiting areas | Suitable for auto dealerships, real estate offices and service center waiting zones, with stain-resistant upholstery that resists coffee and ink stains from daily visitor use | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 13761:2002 | Office furniture - Visitor chairs, performance and dimensional requirements applicable to all seating units in this reception set | |
|---|---|---|
| EN 12521:2015 | Furniture - Strength, durability and safety requirements for domestic and non-domestic tables, applicable to the reception coffee table | |
| EN 1022:2018 | Domestic furniture - Seating - Determination of stability, applicable to prevent tipping of armchairs and 3-seat sofa during normal use |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to MDF shelf and hidden backing components of the set | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to chrome seating frames and powder-coated coffee table steel structure | |
| GB/T 19995.2-2005 | Safety requirements for glass furniture, applicable to the tempered glass coffee table top requiring impact resistance and thermal stability compliance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to MDF shelf and hidden backing components of the set; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to chrome seating frames and powder-coated coffee table steel structure; 3. GB/T 19995.2-2005: Safety requirements for glass furniture, applicable to the tempered glass coffee table top requiring impact resistance and thermal stability compliance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
