Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1950 × 820 × 750 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Three-seat sofa net weight | 52 kg | |
|---|---|---|
| Three-seat sofa total static load capacity | 360 kg | |
| Seat foam density | 35 kg/m3 | |
| Back foam density | 28 kg/m3 | |
| Foam indentation resilience | 35% | |
| Seating capacity | 4 persons | |
| Daily-use durability target | 50,000 seat-loading cycles | |
| Metal leg static load rating per leg | 90 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.

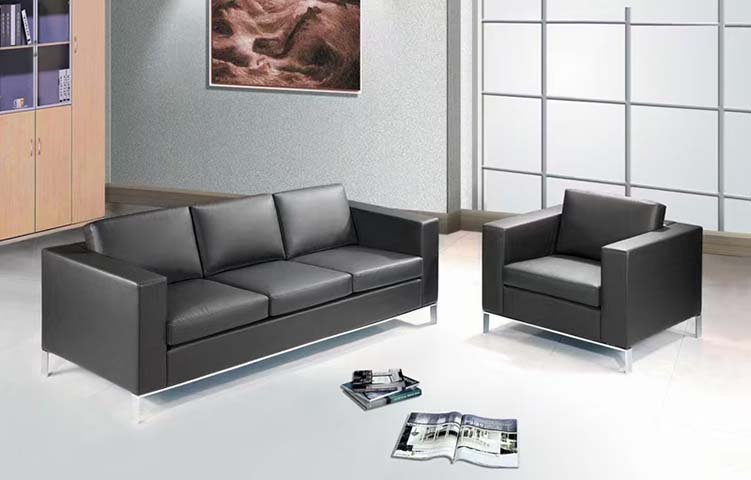

| Outer upholstery | Black smooth upholstery with continuous tailored covering over arms, rails, backs, and cushions | |
|---|---|---|
| Seat cushions | Three separate rectangular sofa cushions and one armchair cushion, visibly padded and sewn into individual panels | |
| Back cushions | Three upright sofa back cushions and one matching armchair back cushion with sewn perimeter seams | |
| Internal load frame | Hardwood or engineered-wood seat frame with rail and corner support, 28 mm structural target | |
| Legs | Four polished silver square metal legs on each visible unit, exposed at the corners | |
| Arm and apron panels | Upholstered box arms and lower front apron with straight squared edges |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Fixed three-seat sofa paired with one matching single-seat armchair for a four-position reception layout | |
|---|---|---|
| Cushion retention | Individual seat and back cushions align within fixed upholstered bays rather than converting into a bed or reclining mechanism | |
| Support and leveling | Straight metal corner legs elevate the upholstered body and provide accessible floor clearance for routine cleaning | |
| Modular placement | Freestanding units can be placed face-to-face, side-by-side, or around a coffee table without floor fixing |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office reception and visitor waiting area | Sofa plus armchair supports four visitors in executive offices, lobbies, meeting suites, or guest rooms | |
|---|---|---|
| Formal compact lounge setting | Black box-arm styling suits corporate waiting zones and hotel reception corners with a coffee table placed centrally |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
