Automatic mm / inch conversion · Core engineering specifications

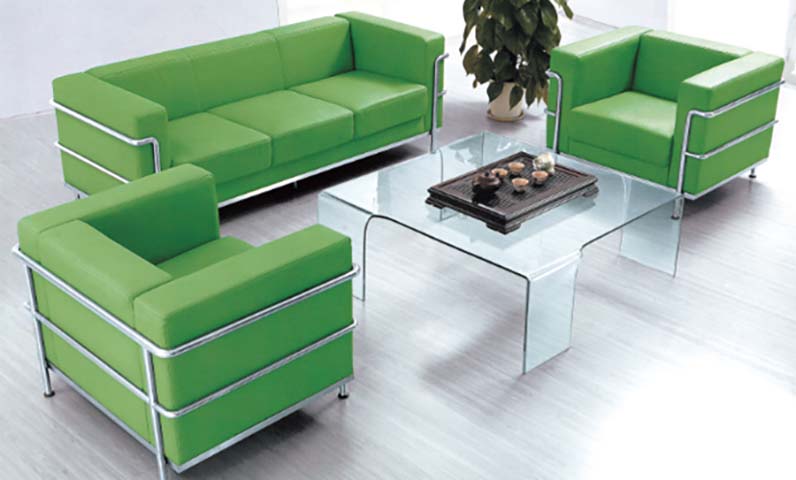

| 3-seater sofa overall dimensions | 1900 x 800 x 720 mm | |
|---|---|---|
| Single armchair overall dimensions | 820 x 800 x 720 mm | |
| Coffee table overall dimensions | 900 x 900 x 420 mm | |
| Seat height (floor to seat top) | 420 mm | |
| Seat depth (front edge to back cushion) | 580 mm | |
| Armrest height (floor to arm top) | 600 mm | |
| Glass table top thickness | 12 mm | |
| Steel frame tube diameter | 25 mm | |
| Back cushion height (seat top to back top) | 300 mm | |
| Leg height (floor to lower frame rail) | 120 mm | |
| Individual seat width (3-seater sofa) | 580 mm | |
| Armrest width | 120 mm | |
| Seat cushion thickness | 100 mm | |
| Glass support panel height (coffee table) | 408 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm |
Net weight / load capacity / users / durability
| 3-seater sofa net weight | 55 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Seating set total user capacity | 5 people | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Recommended warranty period | 3 years | |
| Seat cushion foam rebound rate | 60% | |
| Frame joint static load rating | 300 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and back cushions | 40mm thick 35kg/m³ high-density polyurethane foam padding | |
|---|---|---|
| Upholstery covering | 0.8mm thick matte bright green polyvinyl chloride (PVC) faux leather | |
| Seating support frame | 25mm diameter 1.2mm thick polished chrome-plated cold-rolled steel tube | |
| Base leveling glides | 15mm diameter black nylon non-slip adjustable glides | |
| Coffee table panels | 12mm thick clear float tempered glass with polished smooth edges | |
| Seat support base | 12mm thick plywood panel under foam cushions | |
| Seam construction | 8 stitches per 30mm matching green polyester thread stitching | |
| Frame joint hardware | Zinc-plated steel bolt and nut connectors | |
| Armrest padding | 80mm thick 30kg/m³ polyurethane foam wrap over steel frame rail | |
| Back cushion padding | 80mm thick 30kg/m³ polyurethane foam padding | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Assembly design | Knockdown flat-pack construction with bolted frame joints | |
|---|---|---|
| Seating design | Fixed non-reclining upright posture with integrated wide padded armrests | |
| Floor protection | Nylon glides at all frame contact points to prevent scratching hard flooring | |
| Coffee table surface | Smooth non-porous glass top for easy cleaning of spills and drinkware residue | |
| Arrangement flexibility | Modular seating units can be repositioned into linear, L-shape or separate seating groups | |
| Upholstery maintenance | Stain-resistant faux leather surface that can be wiped clean with mild detergent | |
| Leveling adjustment | Adjustable nylon glides provide 10mm vertical adjustment at each leg | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Total shipping cartons | 5 cartons | |
|---|---|---|
| 3-seater sofa carton dimensions | 1920 x 820 x 450 mm | |
| Single armchair carton dimensions | 840 x 820 x 450 mm | |
| Coffee table carton dimensions | 950 x 950 x 120 mm (glass panels); 200 x 200 x 100 mm (hardware) | |
| Total shipment gross weight | 170 kg | |
| Total shipment volume | 1.7 CBM | |
| Assembly time per full set | 60 minutes | |
| 20ft GP container loading quantity | 18 sets | |
| Packaging materials | 5-layer corrugated carton, 20mm thick EPE foam edge protection, plastic corner guards for glass panels | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
| Corporate office reception areas | Suitable for lobby and waiting zones to accommodate visitors and clients with professional, bright visual styling | |
|---|---|---|
| Small meeting and breakout spaces | Configurable as casual meeting seating for up to 5 people with central coffee table for refreshments and documents | |
| Public service waiting rooms | Suitable for government, bank or clinic waiting areas with high traffic resistance and easy maintenance upholstery | |
| Modern studio and co-working spaces | Matches minimalist industrial decor style with polished metal frame and bright upholstery color | |
| Color availability | Available in custom upholstery colors including black, white, gray and brown for matching different interior schemes | |
| Temporary exhibition seating | Suitable for trade show booth and event waiting areas with lightweight repositionable frames | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| Office seating strength recommendation | EN 16139:2013 | |
|---|---|---|
| Glass furniture safety recommendation | EN 12150:2015 | |
| Furniture surface durability recommendation | EN 14434:2010 | |
| Upholstered furniture durability recommendation | EN 1728:2014 |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| Formaldehyde emission recommendation | GB 18584 | |
|---|---|---|
| Furniture mechanical safety recommendation | GB/T 3324 | |
| Tempered glass safety recommendation | GB 15763.2 | |
| Upholstered furniture flammability recommendation | GB 20286 | |
| Furniture stability recommendation | GB/T 10357.2 |
This product must meet the following technical requirements: 1. Formaldehyde emission recommendation: GB 18584; 2. Furniture mechanical safety recommendation: GB/T 3324; 3. Tempered glass safety recommendation: GB 15763.2; 4. Upholstered furniture flammability recommendation: GB 20286; 5. Furniture stability recommendation: GB/T 10357.2; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
