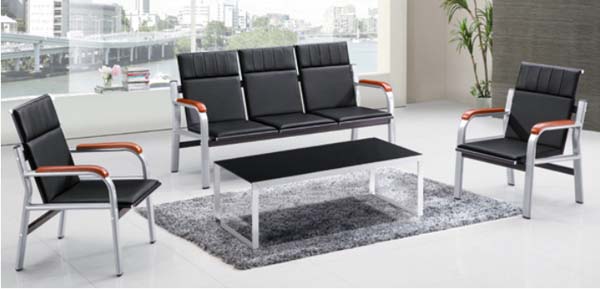

5-Piece Metal Frame Office Reception Seating Set with Coffee Table - Dimensions

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall 3-seat sofa dimensions	1850 x 720 x 940 mm
Overall single armchair dimensions	700 x 720 x 940 mm
Coffee table dimensions	1200 x 600 x 450 mm
Single seat width per position	560 mm
Seat height from floor	450 mm
Seat depth	500 mm
Backrest height above seat	490 mm
Armrest height above floor	650 mm
Metal frame tube diameter	38 mm
Coffee table leg section size	50 x 50 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total set net weight	86 kg
Per-seat static load capacity	150 kg
Total seating capacity	5 persons
Frame static load rating (per chair)	300 kg
Recommended warranty period	3 years
Frame static load rating (3-seat sofa)	450 kg
Upholstery abrasion resistance	50000 cycles
Weld joint shear strength	1200 kg per joint
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and backrest upholstery	0.9 mm thick black faux leather (PU leather)
Seat and back cushion padding	40 mm thick high-density polyurethane foam, 35 kg/m³ density
Structural frame	1.5 mm thick brushed 304-grade stainless steel / chrome-plated steel tube
Armrest caps	Polished solid wood-tone molded arm pads, curved for arm support
Coffee table top	8 mm thick tempered black glass, polished edge
Coffee table support frame	Brushed stainless steel square tube frame, welded U-shaped base
Foot glides	Non-marking rubber/nylon adjustable glides at base of all legs
Upholstery stitching	Reinforced edge stitching with 8 stitches per 50 mm
Structural seating frame	1.5 mm thick chrome-plated cold-rolled steel tube, welded joint construction
Seat and back support panels	12 mm thick plywood substrate, fixed to steel frame with metal fasteners
Armrest mounting hardware	Zinc-plated steel bolts and lock nuts, M6 size
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seating configuration	Fixed-position upright design, no recline or swivel function
Surface cleaning compatibility	Smooth non-porous upholstery and glass surfaces, compatible with standard commercial disinfectant wipes
Assembly requirement	Frame arrives pre-welded, requires attachment of armrest caps, seat/back panels and coffee table top with included hardware
Floor protection	Integrated non-marking glides on all furniture legs, no caster wheels to prevent unintended movement
Set layout flexibility	Modular arrangement allows single chairs to be positioned as side seating flanking the 3-seat sofa, with coffee table centrally placed
Cable management	Open base on coffee table and seating allows loose power/data cables to be routed under furniture without obstruction
Seating design	Fixed-position upright structure with 100 degree fixed backrest angle, no recline or swivel mechanism
Surface cleaning	Smooth non-porous upholstery and glass surfaces, compatible with quaternary ammonium disinfectant wipes
Level adjustment	Adjustable foot glides provide 10 mm of vertical adjustment per leg, compensating for 8 mm maximum uneven floor variation
Cable routing	150 mm minimum open clearance under seating and coffee table frames allows loose power/data cables to be routed under furniture without obstruction
Recline Angle / Lock Reference	125° with 3 suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons	4
Largest carton dimensions (3-seat sofa)	1880 x 750 x 380 mm
Single armchair carton dimensions	730 x 750 x 320 mm
Coffee table carton dimensions	1230 x 630 x 120 mm
Total gross shipping weight	102 kg
Total shipping volume (CBM)	0.82
assembly time	60 minutes
20ft GP container loading quantity	32 sets
40ft HQ container loading quantity	78 sets
Reference Package Count	1 set / 2 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Corporate office reception areas	Suitable for lobbies and waiting zones serving visitors and job candidates, with coordinated formal styling matching professional office interiors
Public service waiting halls	Appropriate for bank, hospital outpatient, government service center waiting areas, with durable easy-clean surfaces suited to high daily foot traffic
Small business meeting breakout zones	Usable for informal small group discussions in open plan offices, with conversational seating layout supporting short collaborative meetings
Hotel or airport VIP waiting lounges	Suitable for premium guest waiting areas, with neutral black and silver finish complementing modern hospitality interior design
Recommended floor protection	Best placed on low-pile carpet or smooth hard commercial flooring, with non-marking glides preventing surface damage during repositioning
Economy hotel and transit waiting lounges	Suitable for budget hotel lobbies and intercity transit station waiting areas, with durable construction and low maintenance requirements for high-volume use
Commercial flooring compatibility	Best placed on 10 mm maximum pile commercial carpet or polished hard flooring, with non-marking glides preventing surface scuffing during infrequent repositioning
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 16139:2013	Furniture - Strength, durability and safety - Non-domestic seating, applicable for public waiting area seating stability and load testing
EN 15372:2016	Furniture - Strength, durability and safety - Non-domestic tables, applicable for coffee table structural performance and edge safety requirements
EN 13722:2004	Furniture - Assessment of surface resistance to cold liquids, applicable to upholstery and glass table surface cleanability evaluation

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.

STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to evaluation of armrest cap strength and surface finish for supply acceptance
GB/T 3325-2017	General technical requirements for metal furniture, applicable to structural integrity, weld quality and frame finish of steel seating and table frame
GB 28007-2011	Safety requirements for children's furniture? No, GB/T 24821 Office furniture - Chairs and stools for public office use: applicable to seat loading, stability and structural durability testing for reception seating
GB/T 24821-2009	Office furniture - Chairs and stools for public office and public use, applicable to seat static loading, stability and structural durability testing for reception seating

Standard Tender Description

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to evaluation of armrest cap strength and surface finish for supply acceptance;
2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to structural integrity, weld quality and frame finish of steel seating and table frame;
3. GB 28007-2011: Safety requirements for children's furniture? No, GB/T 24821 Office furniture - Chairs and stools for public office use: applicable to seat loading, stability and structural durability testing for reception seating;
4. GB/T 24821-2009: Office furniture - Chairs and stools for public office and public use, applicable to seat static loading, stability and structural durability testing for reception seating;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
