PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2000 × 850 × 750 mm
Seat height from floor	420 mm
Seat depth (usable)	650 mm
Seat cushion thickness	120 mm
Backrest height from seat surface	330 mm
Armrest height from floor	600 mm
Armrest width (each)	150 mm
Stainless steel base leg height	80 mm
Back cushion thickness	100 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	68 kg
Total static load capacity	450 kg
Seat foam density	35 kg/m³
Back foam density	28 kg/m³
Fabric abrasion resistance (Martindale)	50000 cycles
Recommended daily occupancy duration	4 hours
Minimum service life	5 years
Standard available finish count	8
Single seat width per occupant	580 mm
Recommended daily occupancy duration per seat	4 hours

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery fabric	Gray polyester woven fabric with matte finish
Seat cushion core	High-resilience polyurethane foam with dacron wrap
Back cushion core	Medium-density polyurethane foam with fiber fill
Internal load-bearing frame	Kiln-dried engineered hardwood and plywood, 18mm panel thickness
External base frame	Brushed 304 stainless steel, 1.2mm wall thickness, square tube profile
Armrest structure	Padded foam core over wood frame, fully upholstered to match seat and back
Seat support system	8-gauge sinuous steel springs with polypropylene webbing
Seam construction	Double-stitched seams with 8 stitches per inch
Base foot pads	Non-marking injection-molded plastic glides
Frame joint construction	Corner-blocked, screwed and glued wood frame joints with steel reinforcement plates at base attachment points
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating capacity	3 adults
Base design	Low-profile sled-style stainless steel frame with perimeter support
Floor protection	Non-marking glides fitted to all base contact points
Cushion design	Fixed tight-upholstered seat and back cushions
Back support	Fixed upright back angle of 105 degrees from seat surface
Armrest function	Full-height padded armrests on both sides of sofa
Cleanability	Stain-resistant fabric finish allows spot cleaning with mild upholstery detergent
Modular compatibility	Dimensions matched to coordinating single-seat armchairs in the same product line
Fire performance compatibility	Upholstery and foam materials rated for cigarette ignition resistance per commercial public space requirements
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping packages	1
Shipping carton dimensions	2080 x 930 x 820 mm
Gross shipping weight	78 kg
Shipping volume per unit	1.59 CBM
Assembly time on site	10 minutes
20ft GP container loading capacity	18 units
40ft HQ container loading capacity	45 units
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

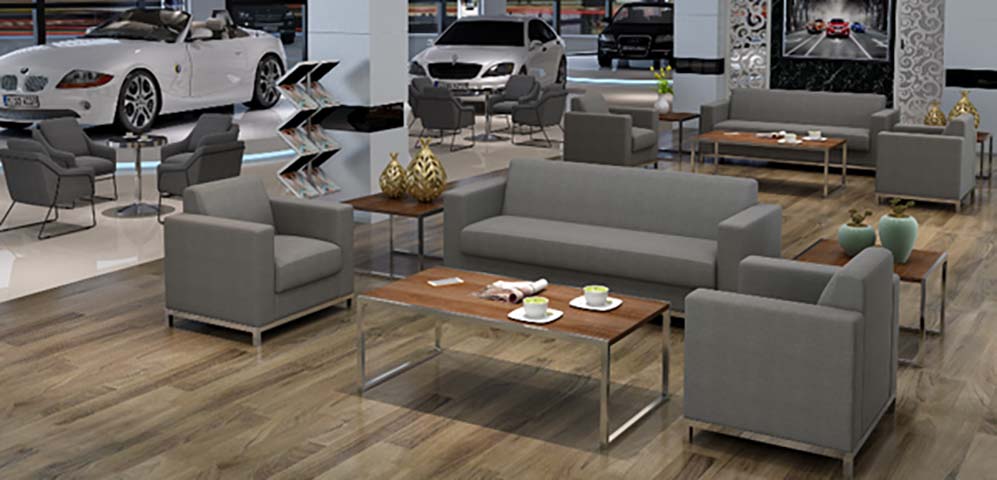

Auto showroom customer waiting areas	Neutral gray upholstery and sleek stainless steel base match premium automotive retail environments, coordinates with leather and polished hard surface finishes
Corporate office reception lobbies	Formal box-arm design projects a professional appearance, suitable for greeting visitors and short wait times
Executive lounge and break-out spaces	Durable construction and comfortable padding support casual internal meetings and guest relaxation
Hospital and banking public waiting zones	Easy-to-clean fabric and robust frame withstand medium daily foot traffic in public service environments
Coordinating seating configuration	Pairs with matching single-seat armchairs and wood/metal coffee/side tables from the same product line to create unified seating groups
Hard flooring compatibility	Non-marking glides and stable sled base perform well on polished tile, wood and stone flooring without requiring additional floor protection

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Upholstered furniture safety recommendation	EN 12520:2015
Fire safety recommendation	EN 1021:2014
Fabric performance recommendation	EN 14465:2004

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Commercial seating recommendation	ANSI/BIFMA X2020
Structural load recommendation	ANSI/BIFMA X2020Clause 5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Fabric safety recommendation	GB 20286
Environmental recommendation	GB 18584
Structural safety recommendation	GB/T 3324

Standardized tender description text

This product must meet the following technical requirements:
1. Fabric safety recommendation: GB 20286;
2. Environmental recommendation: GB 18584;
3. Structural safety recommendation: GB/T 3324;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFS-REC-3S-GRY-SS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFS-REC-3S-GRY-SS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFS-REC-3S-GRY-SSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The 3-Seat Gray Fabric Office Reception Sofa with Brushed Stainless Steel Base is a purpose-built public seating solution defined by clean, professional lines and balanced proportions. It features a structured squared box-arm silhouette, fixed tight-upholstered seat and back cushions, and a low-profile sled-style brushed stainless steel perimeter base that creates a sleek, grounded visual presence suited to formal and casual public spaces alike. The neutral matte gray woven polyester upholstery offers a textured, understated finish that complements a wide range of interior palettes, with consistent fabric coverage across the padded armrests, seat, and mid-height backrest shaped for relaxed lumbar support during short waiting periods. Structurally, the sofa is built for medium-duty commercial use, with an internal kiln-dried engineered hardwood and plywood frame joined with corner blocking, screws, glue, and steel reinforcement plates at base attachment points to prevent loosening over time. The seat support system uses sinuous steel springs and polypropylene webbing to reduce cushion sag, topped with high-resilience 35 kg/m³ polyurethane foam seat cushions wrapped in dacron, and softer 28 kg/m³ foam back cushions with fiber fill. The 1.2mm wall thickness square-tube brushed stainless steel sled base distributes weight evenly to eliminate wobble, fitted with non-marking injection-molded plastic glides to protect polished hard flooring from scratches. Double-stitched seams reinforce high-wear edges, and the stn-resistant fabric finish supports simple spot cleaning with mild upholstery detergent for routine maintenance. Designed to seat three adults, the sofa holds a total static load capacity aligned with commercial seating standards, with an upright 105-degree back angle optimized for short-duration occupancy rather than full-time workstation use. Its dimensions are calibrated to coordinate with matching single-seat armchairs in the same product line, allowing flexible layout of linear or L-shaped seating groups. The upholstery and foam meet cigarette ignition resistance requirements for public space installation, supporting use in corporate office reception lobbies, auto showroom waiting areas, executive break-out lounges, and hospital or banking public waiting zones, where it pairs seamlessly with wood and metal accent tables. For procurement, note the sofa ships as a single fully assembled unit with minimal on-site setup, requiring only attachment of glide feet if not pre-fitted. Eight finish options are available, including six neutral fabric shades plus black and brown faux leather to support consistent brand-aligned space design. minimum service life reaches 5 years in medium-traffic environments with standard care, and the unit is rated for 50,000 Martindale abrasion cycles, suitable for light to medium commercial use. Freight planning can account for contner load calculations aligned with standard commercial upholstered furniture shipping, with non-marking glides removing the need for additional floor protection on tile, wood, or stone surfaces.

3-Seat Gray Fabric Office Reception Sofa with Brushed Stainless Steel Base Specifications
