Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1920 × 800 × 820 mm | |
|---|---|---|
| Seat height from floor | 450 mm | |
| Seat cushion depth | 580 mm | |
| Seat cushion thickness | 120 mm | |
| Backrest height above seat | 370 mm | |
| Armrest height from floor | 650 mm | |
| Wood leg height | 120 mm | |
| Back cushion throw pillow dimensions | 450 x 450 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single seat static load capacity | 250 kg | |
|---|---|---|
| Single armchair net weight | 45 kg | |
| Seating capacity for full set | 5 people | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Seat foam density | 45 kg/m³ | |
| Seam stitching tensile strength | 120 N | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery material | Two-tone matte white and navy blue faux leather | |
|---|---|---|
| Internal seat frame | Kiln-dried solid hardwood and plywood composite | |
| Seat cushion core | 45kg/m³ high-density polyurethane foam | |
| Back support structure | Elastic webbing suspension with foam padding | |
| Leg material | Dark walnut-stained solid hardwood | |
| Coffee table top | White polished sintered stone | |
| Coffee table base | Dark grey lacquered MDF with vertical inlay detailing | |
| Decorative cushions | Navy faux leather covers with polyfiber fill | |
| Frame joint hardware | Zinc-plated steel corner brackets and dowel joinery | |
| Floor glides | 10mm diameter HDPE non-marking glides | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

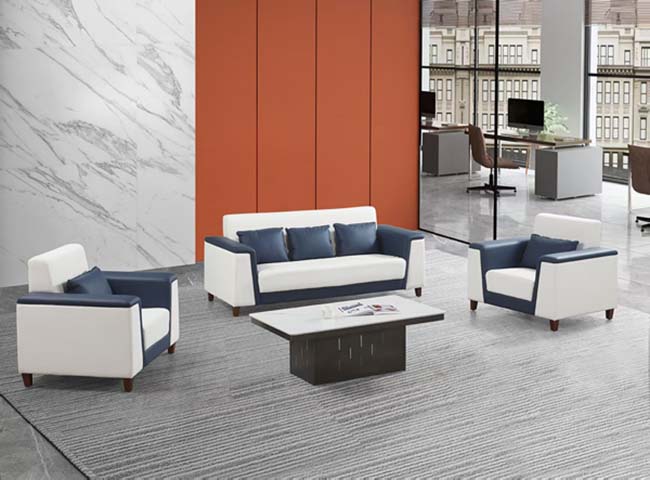

| Seating configuration | Fixed 3+1+1 layout with matching center coffee table | |
|---|---|---|
| Cushion design | Fixed non-removable seat and back cushions | |
| Leg configuration | Four fixed tapered wood legs per seating unit | |
| Surface maintenance | Waterproof stain-resistant faux leather upholstery | |
| Coffee table function | Rectangular low-profile center table for shared access from all seating positions | |
| Decorative cushion integration | Matching navy throw cushions for back support and aesthetic cohesion | |
| Floor clearance under seating | 120mm gap between frame base and floor | |
| Assembly requirement | Knock-down leg attachment for seating units, fully assembled coffee table base | |
| Leveling adjustment | 2mm height adjustment via HDPE glides | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 5 packages | |
|---|---|---|
| 3-seat sofa shipping carton dimensions | 1980 x 860 x 620 mm | |
| Single armchair shipping carton dimensions | 980 x 860 x 620 mm | |
| Coffee table total shipping carton dimensions | 1360 x 760 x 550 mm | |
| Total gross shipping weight for full set | 210 kg | |
| Total shipment volume | 2.6 CBM | |
| On-site assembly time | 60 minutes | |
| 20ft GP container loading quantity | 10 sets | |
| 40ft HQ container loading quantity | 25 sets | |
| Reference Package Count | 1 set / 2 cartons |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate reception lobbies | Formal two-tone professional styling suitable for main guest reception areas in office buildings, presenting a polished business appearance for visiting clients | |
|---|---|---|
| Executive office waiting areas | Compact 5-seat configuration sized for placement outside executive suites to accommodate small groups of waiting visitors | |
| Internal meeting lounge spaces | Layout supports face-to-face discussion for informal internal meetings, team check-ins or small client consultations without a formal conference table | |
| Government and institution guest areas | Neutral professional design and durable commercial construction suitable for public sector reception environments with regular visitor traffic | |
| Hotel business center lounges | Commercial grade durability and formal appearance appropriate for hotel business centers serving registered guests and meeting attendees | |
| Recommended complementary layout | Position the 3-seat sofa opposite the two single armchairs with the coffee table centered to create an open conversational seating group, leaving minimum 900mm circulation clearance around the set for accessible guest movement |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture strength recommendation | EN 16139:2013 | |
|---|---|---|
| Upholstery flame retardancy recommendation | EN 1021:2014 |
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Lounge seating durability recommendation | ANSI/BIFMA X2021 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission recommendation | GB 18584 | |
|---|---|---|
| Upholstery furniture safety recommendation | GB 28007 |
This product must meet the following technical requirements: 1. Formaldehyde emission recommendation: GB 18584; 2. Upholstery furniture safety recommendation: GB 28007; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
