Primary source
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 750 × 850 mm | |
|---|---|---|
| Sofa seat height | 450 mm | |
| Sofa seat depth | 550 mm | |
| Sofa backrest height | 400 mm | |
| Sofa seat cushion thickness | 120 mm | |
| Single chair seat height | 450 mm | |
| Chair leg height | 120 mm | |
| Chair backrest height above seat surface | 380 mm | |
| Coffee table lower shelf height above floor | 150 mm | |
| Chair seat cushion width | 550 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Sofa maximum distributed seat load | 200 kg | |
|---|---|---|
| Single chair maximum seat load | 120 kg | |
| Sofa net weight | 45 kg | |
| Foam indentation load deflection reference | 35 kg/m³ | |
| Upholstery abrasion resistance reference | 50000 cycles | |
| 2-seater sofa maximum distributed seat load | 200 kg | |
| Single armless chair maximum seat load | 120 kg | |
| Coffee table maximum static top load | 50 kg | |
| Coffee table glass impact resistance reference | 2000 g | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Two-tone faux leather (brown seating surface, off-white backrest) with smooth finish | |
|---|---|---|
| Inner frame | Solid wood and plywood composite frame with mortise-and-reinforced structure | |
| Seat and back fill | High-density polyurethane foam with layered firmness configuration | |
| Support legs | Chrome-plated die-cast aluminum legs with angular low-profile design | |
| Base structure | Plywood-reinforced seat base with elastic webbing or spring support | |
| Upholstery stitching | Precision lockstitch seams along cushion and backrest panels | |
| Seat and back upholstery (seating units) | Two-tone faux leather (brown seating surface, off-white backrest) with smooth matte finish | |
| Inner frame (seating units) | Solid wood and plywood composite frame with mortise-and-reinforced corner structure | |
| Seat and back fill (seating units) | High-density polyurethane foam with layered firmness configuration (softer top layer, firmer base layer) | |
| Support legs (seating units) | Chrome-plated die-cast aluminum legs with angular low-profile tapered design | |
| Seat base structure (seating units) | Plywood-reinforced seat base with elastic webbing support system | |
| Upholstery stitching (seating units) | Precision lockstitch seams along cushion and backrest panel edges |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

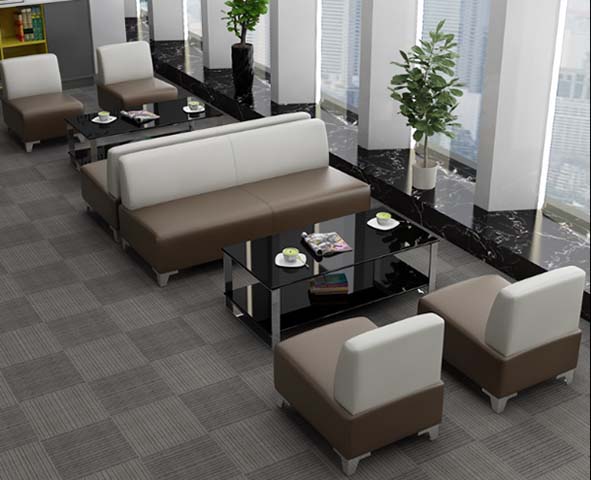

| Seating configuration | Modular reception layout consisting of one 2-seater sofa and four armless single chairs, configurable in linear or clustered arrangements | |
|---|---|---|
| Backrest support | Fixed vertical mid-height backrest providing upper lumbar support for short-duration guest seating | |
| Floor protection | Angular metal legs fitted with non-marking plastic glides to prevent floor scratching | |
| Upholstery maintenance | Smooth faux leather surface wipeable with mild detergent for commercial high-traffic use | |
| Weight distribution | Reinforced seat base distributes user load evenly across four legs for stable seating | |
| Modular seating layout configuration | Set consists of 1 two-seater sofa, 4 armless single chairs and 2 glass coffee tables, reconfigurable in linear, clustered or L-shaped arrangements without connecting hardware | |
| Fixed backrest support | Fixed vertical mid-height backrest on all seating units, set at 95 degrees relative to seat surface to provide upper lumbar support for short-duration guest seating | |
| Two-tier coffee table storage | Coffee table includes a lower tempered glass shelf positioned 300 mm below the top surface, providing storage for magazines, brochures or guest amenities | |
| Floor surface protection | All seating and table legs fitted with non-marking nylon glides that slide without scratching hardwood, tile or low-pile carpet floors | |
| Upholstery surface maintenance | Smooth faux leather upholstery surface wipeable with mild detergent solution, suitable for high-traffic commercial reception areas with frequent visitor use | |
| Even load distribution | Reinforced seat base on all seating units distributes user load evenly across 4 metal legs to prevent tipping or frame deformation under maximum rated load | |
| Glass table safety performance | Tempered glass tabletop breaks into small granular fragments on impact to reduce injury risk, complying with commercial furniture safety requirements |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| 2-seater sofa packaging configuration | 1 flat-packed carton per sofa, 1950 x 800 x 350 mm | |
|---|---|---|
| Single chair packaging configuration | 1 flat-packed carton per chair, 720 x 760 x 300 mm | |
| 2-seater sofa gross weight | 52 kg | |
| Single chair gross weight | 22 kg | |
| 2-seater sofa package volume | 0.55 CBM | |
| Single chair package volume | 0.16 CBM | |
| Assembly time per unit | 20 minutes | |
| 20ft container load quantity | 60 sets (1 sofa + 4 chairs per set) | |
| Single armless chair packaging configuration | 1 flat-packed carton per chair, 720 x 760 x 300 mm | |
| Coffee table packaging configuration | 1 flat-packed carton per table, 1250 x 650 x 150 mm |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate office reception areas | Suitable for lobby and visitor waiting zones in mid-to-large office buildings, providing professional and low-maintenance guest seating | |
|---|---|---|
| High-rise building lounge areas | Ideal for shared waiting lounges in commercial towers and business centers with high visitor turnover | |
| Small meeting and discussion zones | Can be grouped with matching glass coffee tables for informal 6-person discussion areas in open plan offices | |
| Hotel and serviced office public areas | Appropriate for guest waiting and break areas in hospitality and flexible workspaces | |
| Corporate office reception lobbies | Suitable for visitor waiting zones in mid-to-large office buildings, providing professional low-maintenance guest seating with coordinated table space for drinks and brochures | |
| Commercial tower shared lounges | Ideal for high-turnover waiting areas in business centers and commercial high-rises with frequent visitor traffic | |
| Open-plan office informal discussion zones | Can be grouped to create 6-person casual meeting areas in open workspaces, paired with additional side tables if needed | |
| Medical clinic waiting areas | Suitable for patient waiting zones in private medical facilities, where smooth cleanable upholstery supports hygiene requirements |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Upholstered furniture safety standard | EN 1021:2014 applicable for cigarette ignition resistance of upholstered seating | |
|---|---|---|
| Office seating structural testing | Recommended references: EN 1335:2009 | |
| Upholstered furniture ignition resistance | EN 1021:2014 applicable for cigarette and match ignition resistance of upholstered seating | |
| Office furniture structural testing | EN 1335:2009 applicable for structural strength and durability of office seating and tables | |
| Tempered glass product standard | EN 12150:2015 applicable for thermally tempered soda lime silicate glass used in furniture |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Upholstered seating performance standard | Recommended references: ANSI/BIFMA X2020 | |
|---|---|---|
| Office tables performance standard | ANSI/BIFMA X2020 applicable for office desk and table structural performance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| General technical requirements for furniture | GB/T 3324 applicable for wood-based frame and upholstered seating structural performance | |
|---|---|---|
| Upholstered furniture safety limits | Recommended references: GB 28007 | |
| General technical requirements for wood furniture | GB/T 3324 applicable for wood-based frame and upholstered seating structural performance | |
| Safety limits for upholstered furniture | GB 28007 applicable for formaldehyde emission and flame retardant requirements of upholstered seating | |
| Tempered glass safety standard | GB 15763.2 applicable for tempered glass used in furniture tabletops |
Standardized tender description text
This product must meet the following technical requirements: 1. General technical requirements for furniture: GB/T 3324 applicable for wood-based frame and upholstered seating structural performance; 2. Upholstered furniture safety limits: Recommended references: GB 28007; 3. General technical requirements for wood furniture: GB/T 3324 applicable for wood-based frame and upholstered seating structural performance; 4. Safety limits for upholstered furniture: GB 28007 applicable for formaldehyde emission and flame retardant requirements of upholstered seating; 5. Tempered glass safety standard: GB 15763.2 applicable for tempered glass used in furniture tabletops; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
