Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2050 × 850 × 820 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Three-seat sofa seating capacity | 3 adults | |
|---|---|---|
| Armchair seating capacity | 1 adult per chair | |
| Three-seat sofa total static seat load | 300 kg | |
| Single armchair static seat load | 130 kg | |
| Larger coffee table distributed top load | 30 kg | |
| Smaller coffee table distributed top load | 25 kg | |
| Seat foam density | 35 kg/m3 | |
| Back cushion foam density | 28 kg/m3 | |
| Seat foam compression recovery | 38 percent | |
| Set total net weight | 132 kg |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Orange leather-look upholstery with tailored cushion seams and matching piping-free tight edges | |
|---|---|---|
| Seat cushion construction | Fixed multi-density foam pads wrapped in upholstery, shown as three independent seat sections on the sofa | |
| Back cushion construction | Sewn box-edge back cushions with soft padded faces, two on the sofa and one per armchair | |
| Sofa and chair support frame | Internal timber or engineered-wood seat frame with metal-to-leg connection plates | |
| Seating legs and rails | Black square-profile metal legs connected by a low perimeter rail, providing an open elevated base | |
| Coffee tabletops | Walnut-tone wood veneer or wood-composite surface with smooth rounded organic edges |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

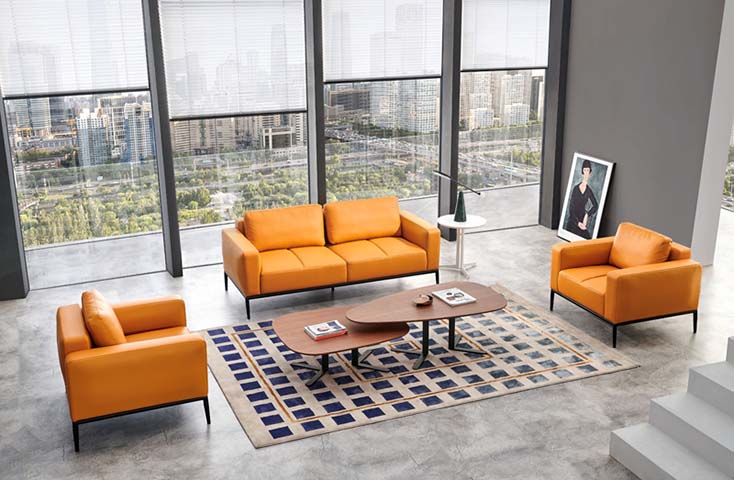

| Conversation seating layout | One three-seat sofa and two matching armchairs form a face-to-face lounge grouping for five occupants | |
|---|---|---|
| Nesting table operation | Two freeform coffee tables overlap and can be pulled apart or partially nested for flexible surface and circulation space | |
| Fixed cushion support | Seat and back cushions are tailored into the upholstered frame rather than shown as removable loose pillows | |
| Low-profile floor clearance | Sofa and chair bases provide 160 mm open clearance for floor cleaning while retaining a stable four-leg stance |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Sofa export carton size | 2100 x 900 x 650 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office reception | Suitable for high-rise reception rooms and executive lounges requiring five-person visitor seating with coordinated occasional tables | |
|---|---|---|
| Collaboration and waiting zones | Appropriate for open corporate lounges, hotel lobbies, and informal meeting areas where guests face each other across low tables |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
