Automatic mm / inch conversion · Core engineering specifications

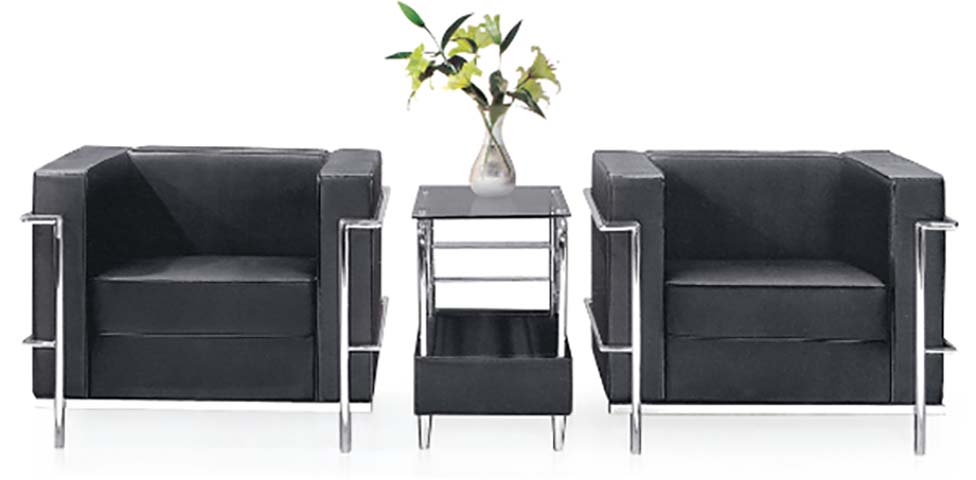

| Single sofa overall dimensions | 780 x 720 x 680 mm | |
|---|---|---|
| Side table overall dimensions | 600 x 500 x 550 mm | |
| Single sofa seat width | 620 mm | |
| Single sofa seat depth | 520 mm | |
| Single sofa seat height (floor to seat top) | 420 mm | |
| Single sofa backrest height (seat top to back top) | 260 mm | |
| Single sofa armrest height (floor to arm top) | 590 mm | |
| Side table top glass thickness | 10 mm | |
| Side table lower storage compartment internal depth | 120 mm | |
| Steel tube frame diameter (sofa) | 25 mm | |
| Sofa steel frame wall thickness | 1.5 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Single sofa net weight | 38 kg | |
|---|---|---|
| Single sofa static seat load capacity | 200 kg | |
| Seat foam density | 45 kg/m³ | |
| Backrest foam density | 35 kg/m³ | |
| Upholstery abrasion resistance (Martindale) | 50000 cycles | |
| Recommended single user weight per seat | 120 kg | |
| Recommended maximum single user weight per seat | 120 kg | |
| Seam stitching tensile strength | 120 N | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
Core acceptance fields · Panels / hardware / frame / upholstery
| Sofa outer upholstery | Black 1.2mm thick PU leather, matching visible black surface | |
|---|---|---|
| Sofa seat cushion core | High-density polyurethane foam wrapped with soft polyester fiber layer | |
| Sofa back cushion core | Medium-density polyurethane foam, wrapped in breathable non-woven fabric liner | |
| Sofa frame structure | Polished chrome-plated cold-rolled steel tubular frame, exposed on armrests and base | |
| Side table top | Clear tempered safety glass, polished rounded edges, secured with chrome fasteners | |
| Side table support frame | Polished chrome-plated steel tubing, matching sofa frame finish, with horizontal support rails | |
| Side table lower storage compartment | Black PU leather upholstered MDF base tray, matching sofa upholstery color | |
| Side table feet | Chrome-plated steel feet, matching sofa frame finish, with optional floor protection glides | |
| Sofa base feet | Continuous chrome steel tubular base frame, integrated with armrest supports, with plastic floor protection caps | |
| Armchair outer upholstery | Black 1.2mm thick polyurethane (PU) leather, matte finish, 1mm stitch pitch | |
| Armchair seat cushion core | 45kg/m³ high-density polyurethane foam wrapped with 200g polyester fiber batting, encased in non-woven fabric liner | |
| Armchair back cushion core | 35kg/m³ medium-density polyurethane foam, wrapped in breathable non-woven fabric liner |
Adjustment / rotation / tilt / mobility / storage features
| Sofa seating function | Fixed-position lounge seating with separate removable box-style seat, back and arm cushions, designed for relaxed waiting posture | |
|---|---|---|
| Frame assembly | Knock-down chrome steel frame connected with hidden bolted fasteners, allows flat-pack shipping and on-site assembly | |
| Side table storage function | Lower open upholstered storage tray holds magazines, documents or small personal items, with two horizontal chrome rails for structural support between top and lower shelf | |
| Side table top function | Smooth tempered glass top provides easy-to-clean hard surface for beverages, decorative items or visitor belongings, resists staining from spills | |
| Floor protection | All steel frame contact points with floor are fitted with non-marking plastic glides to prevent scratching hard floor surfaces, suitable for tile, wood and vinyl office flooring | |
| Modular configuration | Sofas and side table are free-standing units, can be arranged in linear, parallel or clustered reception layouts without permanent fixing | |
| Seating function | Fixed-position lounge seating with fully removable box-style seat, back and arm cushions, designed for relaxed 30 minute waiting postures with 105degree seated back angle | |
| Side table surface function | Smooth tempered glass top provides a stain-resistant, easy-to-wipe hard surface for beverages, decorative items or visitor belongings, with rounded edges to prevent impact injury | |
| Floor protection function | All frame floor contact points are fitted with non-marking polyethylene glides, suitable for tile, engineered wood, laminate and vinyl office flooring, preventing scuffs and scratches during repositioning | |
| Layout flexibility function | All chairs and side table are free-standing units, can be arranged in linear, L-shaped, parallel or clustered reception layouts without permanent floor fixing | |
| Cushion maintenance function | All removable cushions can be lifted out for spot cleaning of upholstery, or replacement of worn cushions without full frame disassembly | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Total package count for full set | 3 cartons | |
|---|---|---|
| Single sofa carton dimensions | 820 x 760 x 420 mm | |
| Side table carton dimensions | 640 x 540 x 220 mm | |
| Total gross weight per full set | 104 kg | |
| Total shipment volume per full set | 0.34 CBM | |
| On-site assembly time | 40 minutes | |
| 20ft GP container loading capacity | 78 sets | |
| 40ft HQ container loading capacity | 190 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Office reception areas | Suitable for corporate lobby and visitor waiting zones, provides formal, durable seating for short-term visitor stays with matching side table for refreshments | |
|---|---|---|
| Executive office meeting nooks | Suitable for small informal meeting areas in private offices, provides comfortable seating for 2 people with space for documents and beverages on the side table | |
| Public service waiting areas | Suitable for bank, government service center and clinic waiting zones, durable upholstery and steel frame withstands high daily traffic use | |
| Studio and co-working lounge spaces | Suitable for co-working break areas and design studio informal meeting spaces, iconic modern design fits contemporary creative work environments | |
| Recommended accessory configuration | Pair with fabric coasters on the glass side table, and add optional lumbar cushions for extended seating comfort during longer waiting periods | |
| Corporate office reception areas | Suitable for main lobby and visitor waiting zones, provides formal, durable seating for short-term visitor stays with side table positioned for refreshments and visitor belongings | |
| Executive office informal meeting nooks | Suitable for small casual meeting areas in private executive offices, provides comfortable seating for 2 people with side table space for documents, beverages and meeting materials | |
| Co-working break and lounge spaces | Suitable for co-working facility break areas and design studio informal collaboration zones, iconic modern tubular frame design matches contemporary creative work environments |
EU Market Access Requirements* EN Standards
| Office seating safety recommendation | EN 16139:2013 | |
|---|---|---|
| Furniture glass safety recommendation | EN 12150:2015 | |
| Upholstered furniture flame retardancy recommendation | EN 1021:2014 | |
| Office lounge seating safety recommendation | EN 16139:2013 |
US and Canada office-furniture standards
| Lounge seating durability recommendation | ANSI/BIFMA X2022 |
|---|
Standards applicable to China-market projects
| Upholstered furniture safety recommendation | GB 28007 | |
|---|---|---|
| Tempered glass safety recommendation | GB 15763.2 | |
| Furniture formaldehyde emission recommendation | GB 18584 | |
| Metal furniture coating recommendation | GB/T 3325 |
This product must meet the following technical requirements: 1. Upholstered furniture safety recommendation: GB 28007; 2. Tempered glass safety recommendation: GB 15763.2; 3. Furniture formaldehyde emission recommendation: GB 18584; 4. Metal furniture coating recommendation: GB/T 3325; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
