Automatic mm / inch conversion · Core engineering specifications
| Overall 3-seater sofa dimensions | 1900 x 800 x 750 mm | |
|---|---|---|
| Single armchair dimensions | 850 x 750 x 750 mm | |
| Large coffee table dimensions | 1200 x 600 x 450 mm | |
| Small side table dimensions | 600 x 600 x 500 mm | |
| Seat height from floor | 420 mm | |
| Seat depth for all seating units | 550 mm | |
| Armrest height from floor | 620 mm | |
| Backrest height from seat surface | 380 mm | |
| Table top thickness (all tables) | 12 mm | |
| Metal frame section size | 50 x 25 mm | |
| Sofa seat cushion width per seat | 600 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Total set net weight (range) | 185 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Recommended maximum user capacity per set | 5 people | |
| Upholstery seam durability | 30000 abrasion cycles | |
| Frame anti-rust performance | 48 hours salt spray resistance | |
| Foam compression set resistance | 10% after 22 hours compression | |
| Tempered glass impact resistance | 1 kg steel ball drop from 1m height without fracture | |
| Upholstery abrasion resistance | 30000 cycles | |
| Frame salt spray resistance | 48 hours | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and back upholstery | Black matte faux leather (PVC/PU blend), 1.2mm thickness, grid-tufted stitched pattern | |
|---|---|---|
| Seat core padding | 40mm thick 40kg/m³ high-density polyurethane foam, with 20kg/m³ soft top layer | |
| Backrest padding | 30mm thick 35kg/m³ high-density polyurethane foam | |
| Seating support frames | 1.5mm thick polished chrome-plated cold-rolled steel, cantilever U-shaped base | |
| Table support frames | 1.2mm thick polished chrome-plated square steel tube, open rectangular leg structure | |
| Table top surfaces | 12mm thick black tempered safety glass, polished straight edges | |
| Frame floor glides | Black non-marking rubber foot pads, 5mm thickness | |
| Internal seat support panel | 12mm thick multilayer plywood board under foam | |
| Stitching material | High-tenacity polyester thread, 8 stitches per 30mm seam | |
| Frame surface finish | Mirror polished chrome plating, 0.1mm plating thickness | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Seating design function | Fixed-position upright reception seating, no recline or adjustment, optimized for short-duration guest waiting and formal meeting interaction | |
|---|---|---|
| Cantilever frame function | Open chrome steel cantilever base provides mild flexible deflection under seated load for comfort, eliminates protruding rear legs to reduce trip hazards in high-traffic areas | |
| Table surface function | Smooth non-porous black glass table tops support drink service, reading materials and decorative items, resistant to common liquid stains and easy to wipe clean | |
| Tufted upholstery function | Grid tufting anchors foam padding to prevent shifting during extended use, adds structured formal visual aesthetic appropriate for business reception spaces | |

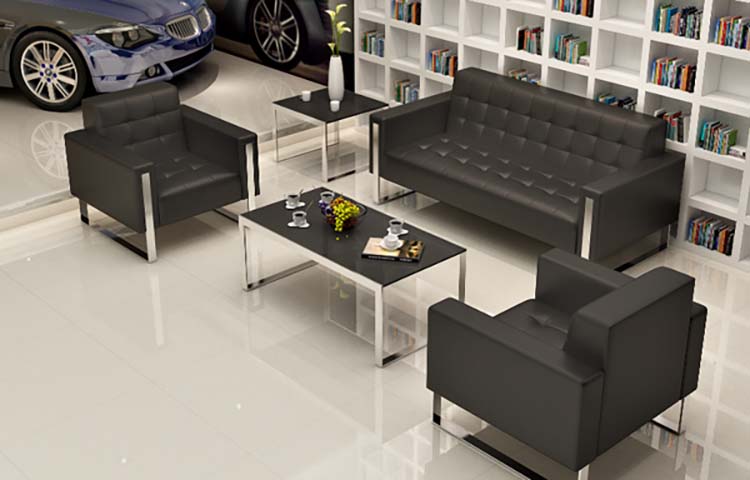

| Set layout function | Symmetric configuration with 1 three-seat sofa, 2 single armchairs, 1 central coffee table and 1 side table creates a closed conversational grouping for up to 5 guests | |
| Floor protection function | Non-marking rubber glides on all frame feet prevent scuffing and scratching on polished tile or hardwood flooring, reduce sliding noise during rearrangement | |
| Material maintenance function | Faux leather upholstery can be cleaned with mild detergent and soft cloth, resistant to fading from regular indoor office lighting | |
| Rear frame stability function | Integrated rear steel cross-brace under seats prevents lateral sway during use, meets 200N horizontal stability requirement for public seating | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 6 | |
|---|---|---|
| Shipping carton dimensions (largest sofa carton) | 1950 x 850 x 650 mm | |
| Shipping carton dimensions (single armchair) | 900 x 800 x 650 mm | |
| Shipping carton dimensions (large coffee table) | 1250 x 650 x 120 mm | |
| Total shipment gross weight | 215 kg | |
| Total shipment volume | 2.4 CBM | |
| On-site assembly time | 60 minutes | |
| 20ft GP container loading quantity | 28 sets | |
| 40ft HQ container loading quantity | 68 sets | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
| Corporate office reception areas | Ideal for waiting rooms and visitor lobbies, formal black and chrome aesthetic matches professional business environments, provides structured comfortable seating for short waiting periods | |
|---|---|---|
| Executive lounge spaces | Suitable for private executive office waiting areas, compact footprint fits in smaller office zones while maintaining a premium polished appearance | |
| Auto dealership and showroom guest areas | Compatible with high-end retail showrooms as seen in visual context, durable easy-clean surfaces withstand high guest traffic, minimalist design complements vehicle displays | |
| Small meeting breakout zones | Serves as informal meeting seating for quick 5person discussions, central coffee table supports document and beverage placement during conversations | |
| Public service lobby areas | Appropriate for bank, legal office or government service waiting spaces, robust frame construction supports high-frequency daily use, stain-resistant upholstery reduces maintenance costs | |
| Open plan office collaboration corners | Can be placed in open office zones for casual team check-ins or informal guest meetings, low-profile backrest does not block sightlines across open workspaces | |
| Corporate office reception lobbies | Ideal for visitor waiting rooms, formal black and chrome aesthetic matches professional business environments, provides structured comfortable seating for 45-minute average waiting periods | |
| Luxury auto dealership showrooms | Compatible with high-end automotive retail spaces as shown in reference imagery, durable easy-clean surfaces withstand 50+ daily guest visits, minimalist design complements vehicle displays |
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 | Applicable ergonomic reference standard for office seating, provides guidance on static strength and dimensional suitability for commercial office reception seating | |
|---|---|---|
| EN 12521:2015 | Applicable standard for domestic and contract furniture strength and durability, suitable for validating seating frame and joint performance | |
| EN 12150-1:2015 | Applicable safety standard for thermally toughened soda lime silicate glass used in furniture, covers safety performance for table top glass | |
| EN 1022:2018 | Stability standard for seating furniture, specifies test methods for resistance to tipping during normal use; procurement acceptance recommendation requiring test report verification |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applicable reference standard for office chairs, specifies static load, fatigue and stability test methods for general office reception seating | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 | Applicable reference standard for office tables, covers vertical load, horizontal stability and surface durability requirements for the accompanying tables |
Standards applicable to China-market projects
| GB 28007-2011 | Applicable standard for safety of upholstered furniture for public and office use, specifies structural strength, flame retardancy and harmful substance limits for reception seating | |
|---|---|---|
| GB/T 3324-2017 | Applicable general technical standard for wooden and upholstered metal furniture, defines dimensional tolerances, surface finish quality and durability requirements | |
| GB 15763.2-2005 | Applicable safety standard for tempered glass used in furniture, requires impact resistance, fragmentation safety and edge finishing for glass table tops | |
| GB/T 16799-2008 | Applicable standard for polyurethane leather used in furniture, specifies abrasion resistance, peel strength and color fastness requirements for upholstery | |
| GB 18584-2001 | Applicable indoor decoration material standard, sets limits for formaldehyde and heavy metal emissions from furniture components for indoor use |
This product must meet the following technical requirements: 1. GB 28007-2011: Applicable standard for safety of upholstered furniture for public and office use, specifies structural strength, flame retardancy and harmful substance limits for reception seating; 2. GB/T 3324-2017: Applicable general technical standard for wooden and upholstered metal furniture, defines dimensional tolerances, surface finish quality and durability requirements; 3. GB 15763.2-2005: Applicable safety standard for tempered glass used in furniture, requires impact resistance, fragmentation safety and edge finishing for glass table tops; 4. GB/T 16799-2008: Applicable standard for polyurethane leather used in furniture, specifies abrasion resistance, peel strength and color fastness requirements for upholstery; 5. GB 18584-2001: Applicable indoor decoration material standard, sets limits for formaldehyde and heavy metal emissions from furniture components for indoor use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
