Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1900 x 800 x 750 mm | |
|---|---|---|
| Seat height from floor | 420 mm | |
| Seat depth | 580 mm | |
| Seat width (per person) | 600 mm | |
| Backrest height from seat surface | 330 mm | |
| Armrest height from seat surface | 180 mm | |
| Armrest width | 120 mm | |
| Leg height | 120 mm | |
| Total seat width (usable) | 1660 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Total product weight | 58 kg | |
|---|---|---|
| Total static load capacity | 360 kg | |
| Seat foam density | 45 kg/m³ | |
| Seat foam thickness | 120 mm | |
| Backrest foam thickness | 80 mm | |
| Fabric abrasion resistance (Martindale) | 45000 cycles | |
| Recommended maximum continuous seating time | 120 minutes | |
| Seating capacity | 3 adults | |
| Back foam density | 30 kg/m³ | |
| Fabric Martindale abrasion resistance | 45000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Upholstery fabric | Grey matte woven polyester fabric | |
|---|---|---|
| Seat cushion padding | High-density polyurethane foam | |
| Backrest padding | Medium-density polyurethane foam over fibre wrap | |
| Internal load-bearing frame | Solid kiln-dried hardwood with metal corner bracing | |
| Armrest structure | Padded fabric-covered frame matching seat and back upholstery | |
| Support legs | Polished chrome-plated steel, tapered angled design | |
| Seat suspension | Sinuous serpentine steel springs with elastic webbing support | |
| Seam construction | Reinforced stitched seams with 8 stitches per 30mm seam length | |
| Floor contact glides | 1 mm thick non-marking polyethylene glides fitted to leg bases | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | Fixed 3-position upright seating | |
|---|---|---|
| Cleaning access | 120mm floor clearance under sofa frame | |
| Stability design | Four-point corner leg support with non-marking floor glides | |
| Cushion design | Fixed attached seat and back cushions | |
| Modular coordination | Dimensions align with matching 1-seater armchairs and coffee tables in the same product line | |
| Edge protection | Rounded padded edges on all arm and seat corners | |
| Under-sofa cleaning access | 120 mm floor clearance under the sofa frame | |
| Stability system | Four-point corner leg support with fitted non-marking glides | |
| Cushion attachment | Fixed permanently attached seat and back cushions | |
| Edge safety | 20 mm radius rounded padded edges on all arm and seat corners | |
| Surface cleanability | Stain-repellent fabric finish allowing wipe-cleaning of liquid spills within 5 minutes of contact | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 1 unit | |
|---|---|---|
| Packaged carton dimensions | 1980 x 880 x 830 mm | |
| Packaged gross weight | 68 kg | |
| Packaged volume per unit | 1.45 CBM | |
| Assembly time on site | 10 minutes | |
| 40ft HQ container loading quantity | 52 units | |
| Included installation hardware | 4 chrome legs, mounting screws, 4 non-marking glides | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm |
Recommended spaces / users / usage modes

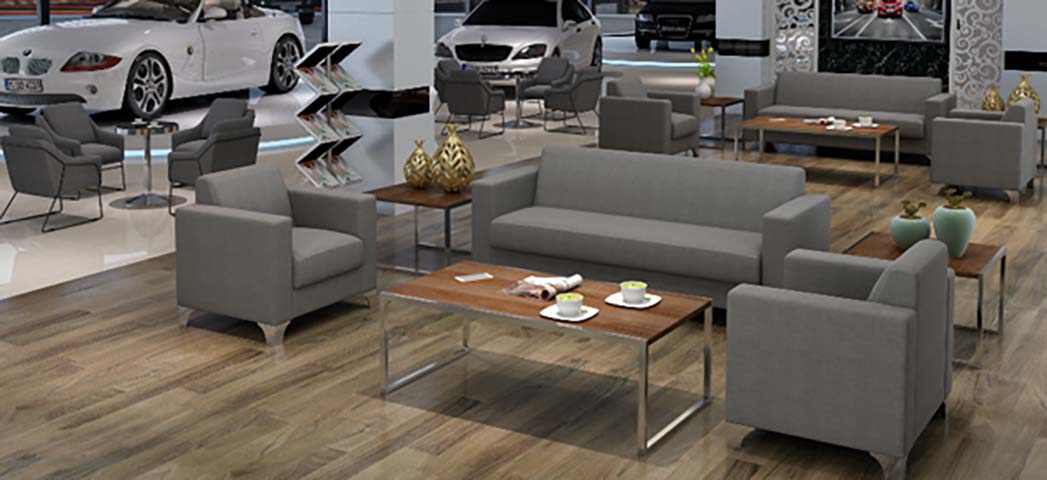

| Auto showroom customer waiting areas | Neat formal appearance coordinates with modern display interiors, durable upholstery resists daily wear from visiting customers, matches the chrome and wood accent furniture shown in the reference space | |
|---|---|---|
| Corporate office reception lobbies | Neutral grey upholstery and polished metal legs complement professional office design, 3-seat capacity provides efficient guest seating for entry waiting zones | |
| Medium-duration public waiting spaces | Fixed upright seat geometry supports comfortable seating for visits up to 2 hours, suitable for bank branches, service centres and public administration lobbies | |
| Modular reception suite configuration | Pairs directly with matching single-seat armchairs, wood-top chrome-frame coffee tables and side tables to create a coordinated uniform seating group | |
| Hard-floored commercial spaces | Non-marking glides on legs prevent scratching of polished tile, wood or epoxy flooring commonly used in modern commercial interiors | |
| Bank and service centre public waiting spaces | Fixed upright seat geometry supports comfortable seating for visits up to 120 minutes, easy-to-clean fabric reduces maintenance workload for facilities staff | |
| Modular reception seating suites | Pairs directly with matching 1-seat armchairs, wood-top chrome-frame coffee tables and side tables to create a coordinated uniform seating group | |
| Hard-floored commercial interiors | Non-marking glides prevent scratching of polished tile, engineered wood or epoxy flooring commonly used in modern commercial spaces |
EU Market Access Requirements* EN Standards
| EN 13759:2012 | Domestic and contract seating furniture - Mechanical safety requirements, applicable to structural safety, stability and load testing for public area use | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture flammability - Ignition source smouldering cigarette, standard flammability requirement for commercial indoor seating installations |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to the internal timber frame structural integrity and finish requirements | |
|---|---|---|
| GB 18580-2017 | Limits of formaldehyde emission from wood-based panels, applicable to any composite panel components used in frame construction, requiring E1 grade emission levels for indoor commercial use | |
| GB/T 19822-2005 | Test standard for furniture strength and stability for seating, applicable to vertical static load, backrest durability and leg structural performance verification | |
| GB 20400-2006 | Leather and fur material limits, applicable if leather upholstery options are selected, restricting harmful chemical content |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to the internal timber frame structural integrity and finish requirements; 2. GB 18580-2017: Limits of formaldehyde emission from wood-based panels, applicable to any composite panel components used in frame construction, requiring E1 grade emission levels for indoor commercial use; 3. GB/T 19822-2005: Test standard for furniture strength and stability for seating, applicable to vertical static load, backrest durability and leg structural performance verification; 4. GB 20400-2006: Leather and fur material limits, applicable if leather upholstery options are selected, restricting harmful chemical content; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
