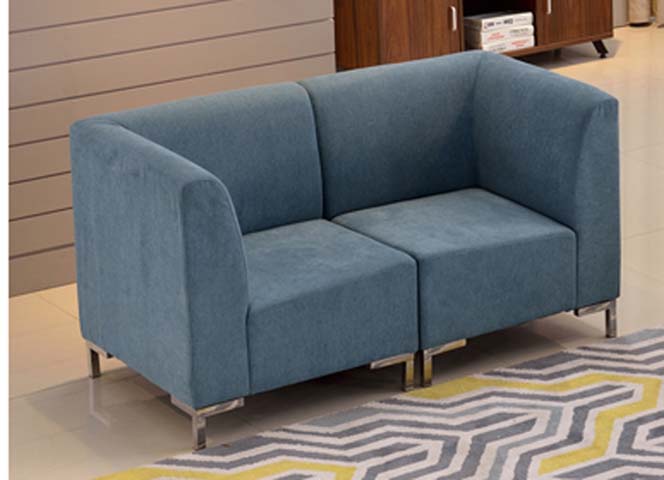

Product supplierTwo-Seat Modular Fabric Reception Sofa, Dark blue woven polyester textile with matte textured finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1500 × 750 × 750 mm | |
|---|---|---|
| Single seat module dimensions | 750 x 750 x 750 mm | |
| Seat height from floor | 450 mm | |
| Seat cushion depth | 550 mm | |
| Seat cushion width per seat | 680 mm | |
| Backrest height from seat surface | 380 mm | |
| Armrest height from floor | 650 mm | |
| Armrest width | 120 mm | |
| Leg height | 120 mm | |
| Clearance under sofa base | 80 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 50 kg | |
|---|---|---|
| Total static load capacity | 300 kg | |
| Seat foam density | 40 kg/m³ | |
| Backrest foam density | 30 kg/m³ | |
| Foam indentation load deflection | 220 N | |
| Fabric abrasion resistance | 50000 Martindale cycles | |
| Seam stitch pitch | 3 mm | |
| Seat foam indentation load deflection | 220 N | |
| Spring support fatigue life | 50000 cycles | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | Dark blue woven polyester textile with matte textured finish | |
|---|---|---|
| Seat cushion core | High-resilience polyurethane foam with integrated density layering | |
| Backrest cushion core | Medium-density polyurethane foam for lumbar support | |
| Internal frame | Kiln-dried solid wood and engineered wood composite frame | |
| Support legs | Polished chrome-plated square-section steel legs with floor protection glides | |
| Seam construction | Reinforced stitched seams with matching color thread | |
| Base support structure | Zig-zag sinuous steel spring support under seat cushions | |
| Floor glides | Non-marking plastic glides fitted to bottom of each leg | |
| Seat support system | 3.8 mm gauge zig-zag sinuous steel springs spaced 100 mm apart, secured with steel spring clips | |
| Back panel | Non-woven fabric dust cover fitted to rear of each seat module, concealing internal frame | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular configuration | Two independent single-seat units joined along vertical edge to form a two-seat sofa, allowing reconfiguration into separate seats or combination with additional matching modules | |
|---|---|---|
| Fixed position seating | Backrest angle fixed at 105 degrees for upright supportive reception seating, no recline function | |
| Armrest support | Integrated curved padded armrests on both left and right outer edges, providing upper body support for seated users | |
| Floor protection | Non-marking glides on all legs prevent scratching of hard flooring and reduce movement noise during repositioning | |
| Cleaning access | 80mm under-base clearance allows standard vacuum cleaner nozzles to access floor space beneath the sofa | |
| Fabric maintenance | Tight woven upholstery surface allows spot cleaning with water-based fabric cleaner for common reception area spills | |
| Stability performance | 6-point leg support across the two-module configuration prevents tipping when load is applied to front edge of seats, meeting 10 degree tip resistance requirements | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 2 | |
|---|---|---|
| Single carton dimensions | 780 x 780 x 600 mm | |
| Total shipping gross weight | 58 kg | |
| Total shipping volume | 0.73 CBM | |
| On-site assembly time | 15 minutes | |
| 40ft HQ container loading quantity | 104 units | |
| Packaging protection | Corner foam padding, plastic wrap, and corrugated cardboard carton | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office reception areas | Suitable for corporate lobby and waiting areas, providing compact two-person seating with professional clean aesthetic aligned with modern office design | |
|---|---|---|
| Small meeting breakout spaces | Usable in informal meeting zones for short collaborative discussions, with upright seat angle supporting alert posture during conversations | |
| Public waiting zones | Appropriate for healthcare, banking, or public service waiting areas, with durable woven fabric rated for high daily visitor traffic | |
| Open plan office casual areas | Can be placed in office pantry or lounge zones for employee break seating, with modular design allowing flexible layout changes | |
| Small retail customer areas | Suitable for boutique store or showroom customer seating, with compact footprint that fits small floor spaces without blocking circulation | |
| Public service waiting zones | Appropriate for banking, administrative service or outpatient waiting areas, with 50000 Martindale cycle fabric rated for 8 hours of daily visitor traffic |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139 | 2013 Furniture - Strength, durability and safety - Requirements for non-domestic seating: applies to load capacity and structural durability requirements for commercial reception use | |
|---|---|---|
| EN 1021-1 | 2014 Furniture - Assessment of the ignitability of upholstered furniture - Part 1: Ignition source smouldering cigarette: applies to upholstery fire safety minimum requirements for public spaces |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | applies to internal wood frame structural integrity and moisture content limits for procurement acceptance | |
|---|---|---|
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | applies to formaldehyde emission limits for wood frame components | |
| GB/T 19889.7-2022 Acoustics - Measurement of sound insulation in buildings and of building elements - Part 7 | Field measurements of impact sound insulation of floors: applies to floor glide noise performance for office installation |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: applies to internal wood frame structural integrity and moisture content limits for procurement acceptance; 2. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: applies to formaldehyde emission limits for wood frame components; 3. GB/T 19889.7-2022 Acoustics - Measurement of sound insulation in buildings and of building elements - Part 7: Field measurements of impact sound insulation of floors: applies to floor glide noise performance for office installation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
