PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 700 × 760 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total seating capacity	4 users
Gray chaise static load capacity	300 kg
Round side table top static load	30 kg
Seat foam density	45 kg/m3
Back pillow foam density	30 kg/m3
Seat foam indentation load deflection	120 N
Fabric abrasion acceptance	50000 Martindale cycles
Total product net weight	92 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Woven polyester or polyester-blend fabric over sewn cushion covers
Seat cushioning	High-resilience polyurethane foam, 120 mm seat thickness, 45 kg/m3 density
Back support structure	Upholstered low back with 80 mm soft foam or fiber pad
Internal load frame	Kiln-dried hardwood or engineered-wood frame with 18 mm structural rails
Chair base construction	Upholstered plinth base over an internal timber and steel reinforcing frame
Side table components	25 mm laminate top, 80 mm powder-coated steel column, and three-prong steel base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Independent chaise, two tub chairs, table, and rack can be arranged in linear, clustered, or waiting-zone layouts
Lounge posture support	620 mm seat depth and 420 mm seat height support relaxed semi-upright reception seating
Side table use	Central pedestal keeps the floor zone open and provides 550 mm diameter surface for drinks and devices
Magazine storage	Open sling pocket holds brochures or magazines and remains movable without wall attachment

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary reception application	Suitable for corporate lobbies, elevator halls, and member waiting areas where short-duration relaxed seating is required
Secondary collaboration application	Can be grouped in breakout zones or informal meeting corners with the central table supporting cups and mobile devices

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LOU-MOD-SET-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LOU-MOD-SET-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LOU-MOD-SET-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

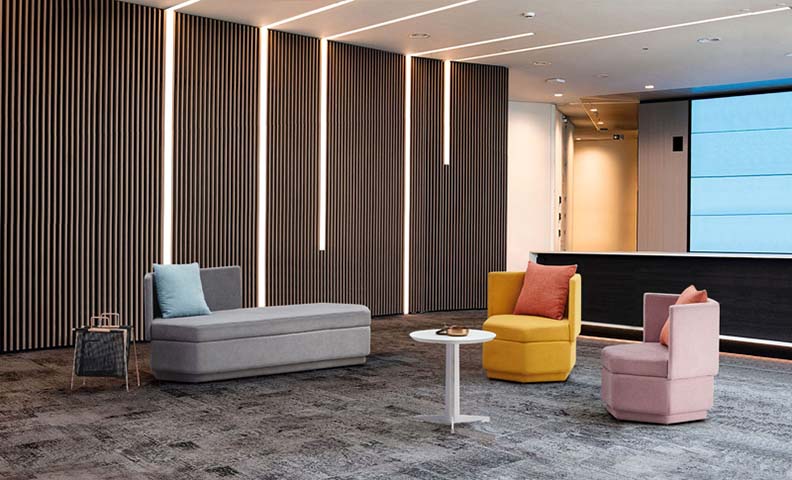

The Modular Upholstered Lounge Seating Group with Side Table and Magazine Rack is a modern, low-back soft seating collection designed for flexible reception and relaxation settings. The set is unbranded and supplied as model LOU-MOD-SET-01, combining an independent chaise, two tub chairs, a round pedestal side table, and a movable magazine rack. Its separate components allow the group to be arranged as a linear seating run, a clustered lounge setting, or an open waiting-zone layout without requiring fixed wall attachment. Visually, the group presents a soft upholstered form with a low backrest and tailored woven polyester or polyester-blend fabric covers. The seating is supported by an upholstered plinth base, giving the pieces a streamlined profile suited to contemporary interiors. The round side table introduces a contrasting material note through its laminate top and powder-coated steel column and three-prong base. An open sling-style magazine pocket adds a practical storage element while retaining the uncluttered layout. Construction balances cushioned comfort with structural support. Seat cushions use high-resilience polyurethane foam, with a finished cushion thickness of 90 mm, 45 kg/m3 foam density, and 120 N indentation load deflection. The upholstered low back includes 70 mm of backrest padding and a 240 mm lumbar support zone, with an 80 mm soft foam or fiber pad forming part of the back support structure. Internal construction uses a kiln-dried hardwood or engineered-wood frame with 18 mm structural rails, reinforced by timber and steel within the plinth base and powder-coated steel supports. The clear width between armrests is 540 mm. The seating configuration accommodates four users, while the chaise is rated for a 300 kg static load and the side table top for a 30 kg static load. Lounge posture is supported by a 620 mm seat depth and 420 mm seat height, intended for relaxed, semi-upright reception seating. The side table offers a 550 mm diameter surface for drinks, mobile phones, and other devices, with its central pedestal helping keep the surrounding floor area open. The fabric carries a 50,000 Martindale-cycle abrasion acceptance rating. This group is appropriate for corporate lobbies, elevator halls, member waiting areas, breakout zones, and informal meeting corners, especially where short-duration relaxed seating is required. It also works in residential lounges where a coordinated modular seating arrangement is preferred. Procurement teams should plan around a set packaged in two cartons, with a reference assembly time of 40 minutes, packaged gross weight of 23 kg, and carton dimensions of 850 by 420 by 720 mm. Layout planning should account for circulation space, table access, fabric upkeep, and the need to move components into the intended room before assembly.

Modular Upholstered Lounge Seating Group with Side Table and Magazine Rack Specifications
