Automatic mm / inch conversion · Core engineering specifications
| Three-seat sofa overall dimensions | 2200 x 850 x 820 mm | |
|---|---|---|
| Single armchair overall dimensions | 950 x 850 x 820 mm | |
| Seat height from floor | 430 mm | |
| Seat depth for three-seat unit | 580 mm | |
| Seat cushion thickness | 120 mm | |
| Backrest height above seat | 410 mm | |
| Armrest height above seat | 160 mm | |
| Leg height from floor | 150 mm | |
| Accent throw pillow dimensions | 450 x 450 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Total set net weight | 135 kg | |
|---|---|---|
| Three-seat sofa static seat load capacity | 450 kg | |
| Recommended total seating capacity | 5 persons | |
| Upholstery abrasion resistance | 50000 Martindale cycles | |
| Seat foam compression set rating | 5% | |
| Total recommended seating capacity | 5 persons | |
| Seam tensile strength | 180 N | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Upholstery covering | Gray matte faux leather (PU leather) | |
|---|---|---|
| Seat cushion core | High-density polyurethane foam | |
| Backrest cushion core | Medium-density polyurethane foam with soft fiber wrap | |
| Internal support frame | Kiln-dried hardwood + plywood composite frame | |
| Support legs | Matte black powder-coated carbon steel | |
| Accent throw pillow fill | Siliconized polyester fiberfill | |
| Stitching detail | Matching gray polyester thread, 8mm seam pitch | |
| Leg floor protection | Plastic/TPU glide feet | |
| Seating upholstery covering | Gray matte PU faux leather, 1.2mm thickness | |
| Seating internal support frame | 18mm thick kiln-dried hardwood + 15mm plywood composite frame | |
| Seating support legs | 20mm diameter matte black powder-coated carbon steel tubing, 1.5mm wall thickness | |
| Upholstery stitching | Matching gray polyester thread, 8mm seam pitch |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | Fixed non-modular layout with centered three-seat sofa flanked by two matching armchairs | |
|---|---|---|
| Cushion design | Fixed attached seat and back cushions, no removable cushion covers for commercial low-maintenance use | |
| Leg design | Angled tapered metal legs with four-point support per seating unit | |
| Ergonomic support | Curved rolled armrests and slightly angled backrest to support relaxed upright seated posture | |
| Cleaning suitability | Smooth non-porous upholstery surface compatible with standard commercial upholstery cleaners | |
| Arrangement flexibility | Free-standing units that can be repositioned to suit different room layouts | |
| Seating support design | Angled tapered splayed metal legs with multi-point support per unit, rear legs offset for increased tip resistance | |
| Surface cleanability | Non-porous smooth upholstery and sealed tabletop surface compatible with quaternary ammonium commercial disinfectant cleaners | |
| Floor protection | All contact points with floor fitted with non-marring TPU glides/feet to prevent scuffing on hard tile, wood or epoxy floors | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 3 cartons | |
|---|---|---|
| Three-seat sofa shipping carton dimensions | 2250 x 900 x 650 mm | |
| Single armchair shipping carton dimensions | 1000 x 900 x 650 mm | |
| Total set gross shipping weight | 160 kg | |
| Total shipping volume per set | 1.75 CBM | |
| On-site assembly time | 30 minutes | |
| 20ft GP container loading capacity | 18 sets | |
| 40ft HQ container loading capacity | 42 sets | |
| Coffee table shipping carton dimensions | 1250 x 650 x 120 mm | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
| Corporate office reception lobbies | Symmetric formal layout creates a professional first impression for visitors, with durable upholstery suitable for daily high-traffic use | |
|---|---|---|
| Executive office meeting areas | Compact comfortable seating for small informal meetings between staff and guests, with neutral gray finish matching most office interior palettes | |
| Waiting areas for professional service firms | Suitable for law firms, consulting offices and medical clinics where clean, professional appearance and visitor comfort are required | |
| Open-plan lounge collaboration zones | Flexible individual units can be rearranged to create small group seating for casual team discussions in modern workplaces | |
| Hotel business center guest seating | Durable commercial construction and understated design suitable for public hotel areas serving transient guests | |

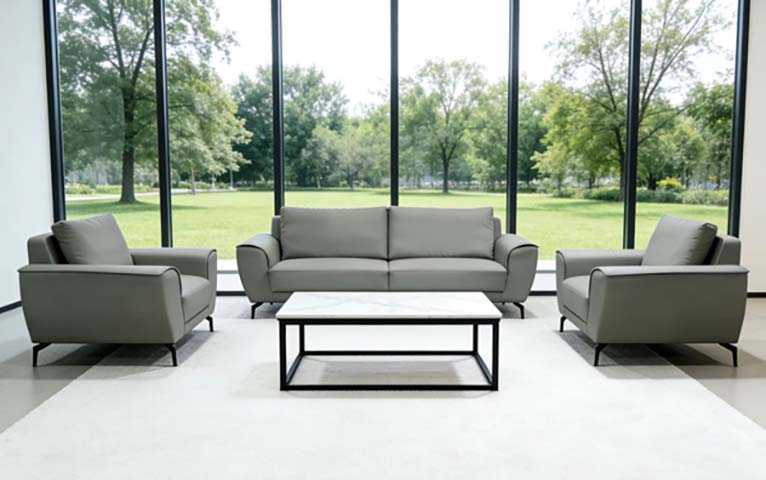

| Recommended companion furniture | Pairs with 1200x600mm marble-top black metal frame coffee table as shown in the image for a complete matching reception set | |
| Executive office guest meeting areas | Compact comfortable seating for small informal meetings between staff and 4 guests, neutral gray finish matching most modern office interior palettes | |
| Professional service firm waiting areas | Suitable for law firms, consulting offices and dental clinics where clean, disinfection-compatible surfaces and professional appearance are required |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
