Automatic mm / inch conversion · Core engineering specifications

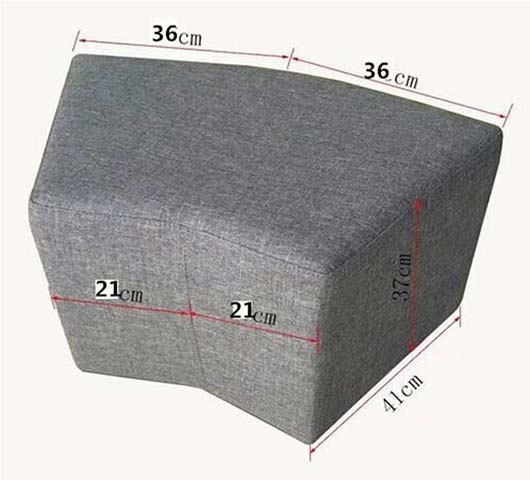

| Overall dimensions | 720 x 410 x 370 mm | |
|---|---|---|
| Individual curved seat section width | 360 mm | |
| Lower front segment width | 210 mm | |
| Total seat surface depth (front edge to back edge) | 410 mm | |
| Total unit height from floor to seat top | 370 mm | |
| Seat corner radius at angled joint | 90 degrees | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net product weight | 7 kg | |
|---|---|---|
| Static vertical load capacity per seat position | 120 kg | |
| Seat compression recovery after 24hr 70kg load | 95% | |
| Recommended number of users | 1 | |
| Fabric abrasion resistance (Martindale) | 30000 cycles | |
| Seat foam compression recovery after 24hr 70kg static load | 95% | |
| Maximum recommended occupant weight | 120 kg | |
| Fabric Martindale abrasion resistance | 30000 cycles | |
| Seam tensile strength | 180 N | |
| Static floor load distribution | 17 kg/m² |
Core acceptance fields · Panels / hardware / frame / upholstery
| Upholstery fabric | Woven heather grey linen-look polyester fabric | |
|---|---|---|
| Seat core padding | 35kg/m3 density polyurethane foam | |
| Internal support frame | 20mm thick pine plywood frame | |
| Bottom base panel | 3mm thick hardboard protective layer | |
| Upholstery attachment | Stapled fabric application with hidden stitched seams | |
| Seam stitch pitch | 3 stitches per cm | |
| Floor contact surface | Non-slip fabric finish | |
| Exterior upholstery fabric | 300g/m² woven heather grey linen-look polyester fabric | |
| Internal structural frame | 20mm thick kiln-dried pine plywood frame | |
| Bottom base protective panel | 3mm thick hardboard panel | |
| Upholstery attachment method | Stapled fabric application with hidden aligned stitched seams | |
| Seam stitch construction | Polyester core-spun thread at 3 stitches per cm pitch |
Adjustment / rotation / tilt / mobility / storage features
| Modular connection capability | Angled end profile designed to connect to identical straight or curved units to form continuous bench seating | |
|---|---|---|
| Seating use function | Perching height seating suitable for short-duration use in lobbies, waiting areas or breakout spaces | |
| Edge protection function | Rounded soft padded edges eliminate sharp corners to reduce impact injury risk | |
| Floor protection function | Full fabric wrap at base prevents hard frame contact with floor finishes | |
| Maintenance access | Fixed upholstered construction, surface clean only with water-based fabric cleaner | |
| Modular connection compatibility | 90-degree wedge profile connects to identical straight or curved ottoman units to form continuous L-shaped or circular seating layouts | |
| Primary seating function | 370mm low seat height supports short-duration perching for visitors in public spaces | |
| Footrest function | Flat padded top surface serves as a footrest for users seated on adjacent standard-height seating | |
| Impact protection feature | Fully upholstered rounded 20mm radius edges on all exposed surfaces eliminate sharp corners to reduce impact injury risk | |
| Floor protection feature | Non-abrasive fabric base layer prevents direct hard frame contact with wood, tile or carpet floor finishes | |
| Surface maintenance function | Stain-resistant woven fabric surface supports spot cleaning with water-based upholstery cleaner, no removable covers are fitted | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 1 piece per carton | |
|---|---|---|
| Shipping carton dimensions | 760 x 450 x 410 mm | |
| Gross shipping weight per carton | 9 kg | |
| Packaging volume per unit | 0.14 CBM | |
| assembly time | 0 minutes | |
| 20ft GP container loading quantity | 190 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set |
Recommended spaces / users / usage modes
| Office breakout spaces | Suitable for informal collaborative seating arrangements when connected into curved bench layouts | |
|---|---|---|
| Lobby and waiting areas | Provides low-profile perching seating for visitors without blocking sightlines across reception spaces | |
| Retail fitting rooms and circulation zones | Fits into corner spaces as auxiliary seating for customers without occupying excessive floor space | |
| Residential entryways or bedrooms | Serves as compact end-of-bed seating or shoe-changing stool for home interiors | |
| Event and pop-up installations | Lightweight modular units can be reconfigured quickly to create custom seating layouts for temporary events | |
| Office breakout and collaboration zones | Connects to matching modular ottomans to form curved or corner seating clusters for informal team discussions | |
| Lobby and reception waiting areas | Provides low-profile auxiliary seating or footrests for visitors without blocking reception sightlines | |
| Retail fitting room and circulation zones | Fits into tight corner positions as compact seating for customers trying on footwear or waiting for companions |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Applicable for non-domestic seating strength, durability and stability requirements for contract level 2 use, recommended for commercial project specification | |
|---|---|---|
| EN 1021-1:2014 | Applicable for upholstered furniture ignition resistance from smouldering cigarettes, recommended for public space use |
Standards applicable to China-market projects
| GB 28007-2011 | Applicable for strength and stability of upholstered seating for children and adult general use, recommended for product acceptance testing | |
|---|---|---|
| GB 18580-2017 | Applicable for formaldehyde emission limits for wood-based panel internal components, recommended for material inspection | |
| GB/T 19817-2005 | Applicable for upholstered furniture fabric safety and performance requirements, recommended for fabric acceptance |
This product must meet the following technical requirements: 1. GB 28007-2011: Applicable for strength and stability of upholstered seating for children and adult general use, recommended for product acceptance testing; 2. GB 18580-2017: Applicable for formaldehyde emission limits for wood-based panel internal components, recommended for material inspection; 3. GB/T 19817-2005: Applicable for upholstered furniture fabric safety and performance requirements, recommended for fabric acceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
