MOD-CUR-LOU-001

Code：ZN07U9V1
Request supplier quotes

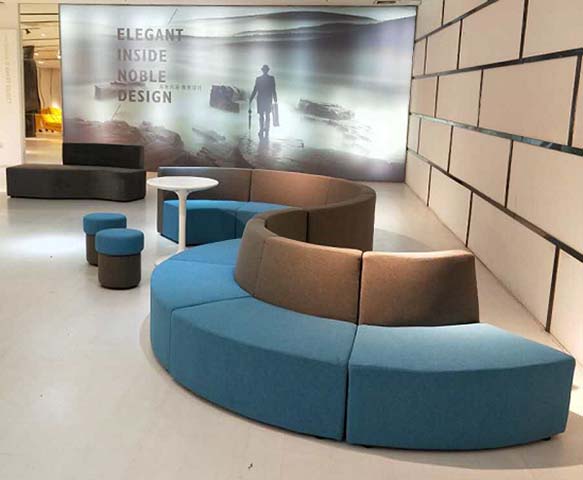

Modular Curved Two-Tone Fabric Lounge Sofa Set Key Specifications 2026-08-06 17:00

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

MOD-CUR-LOU-001

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Seat Cushion Thickness180 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total sofa set weight (6 seat segments)240 kg
Single seat segment weight40 kg
Static load capacity per seat160 kg
Total seating capacity6 persons
Seat foam density45 kg/m³
Back foam density35 kg/m³
Fabric abrasion resistance (Martindale)50000 cycles
Suggested warranty period5 years
Total sofa set shipping gross weight300 kg
Individual seat segment weight40 kg
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat upholstery (blue segments)Woven polyester contract fabric
Backrest upholstery (brown segments)Woven polyester contract fabric in warm brown tone
Seat core paddingHigh-density polyurethane foam
Backrest core paddingMedium-density polyurethane foam
Internal frame18mm thick plywood composite frame
Base support structureInternal steel cross bracing per segment
Floor protection glidesHard plastic non-marking glides
Modular connecting hardwareZinc-plated steel connecting brackets
Ottoman upholstery (top)Matching blue woven polyester fabric
Ottoman base upholsteryDark brown woven fabric
Side table topSolid surface white laminate
Side table basePowder-coated white cast aluminum
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Modular reconfigurationIndividual wedge segments connect via hidden under-seat brackets to form C-shaped, S-shaped or linear layouts
Low-profile backrest design340mm back height provides lumbar support while maintaining unobstructed sightlines across open lounge areas
Integrated ottoman flexibilityCylindrical ottomans can be used as footrests, extra side seating or movable side tables
Floor protectionNon-marking plastic glides on all seating units prevent damage to polished concrete, tile or wood flooring
Stain-resistant upholsteryContract-grade polyester fabric allows spot cleaning with mild detergent for routine maintenance
Fixed upholstered constructionCushions are permanently attached to segment frames to prevent shifting during reconfiguration or heavy use
Curved collaborative layoutC-shaped default configuration creates a semi-enclosed discussion area for 6 users
Companion table integrationRound side table fits into the inner arc of the curved sofa to provide convenient surface access for all seated users
Tool-free modular reconfigurationIndividual wedge segments connect via hidden under-seat zinc-plated brackets, supporting C-shape, S-shape, linear, or clustered layouts with 0 mm gap between segments
Low-profile open sightline design340 mm back height above seat provides lumbar support while maintaining unobstructed visibility across open lounge areas, with 0 mm overhang to avoid blocking walkways
Movable multi-use ottomansTwo cylindrical ottomans are unmounted and free-positioning, usable as footrests, temporary guest seating, or impromptu side tables with 160 kg static load rating
Floor protection and levelingAll seating and table units have adjustable nylon glides with 5 mm vertical adjustment travel to compensate for uneven hard flooring, non-marking finish prevents scuffs on polished concrete, tile, or wood surfaces
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Total number of shipping cartons10 cartons
Largest carton dimensions (single seat segment)850 x 850 x 500 mm
Total shipping gross weight300 kg
Total shipping volume (CBM)2.8 CBM
On-site assembly time90 minutes
20ft GP container loading quantity18 sets
40ft HQ container loading quantity45 sets
Total shipping carton count10 cartons
Largest individual carton dimensions (seat segment)850 x 850 x 500 mm
Total shipping volume2.8 CBM
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Corporate office lounge and reception areasCurved modular layout creates welcoming waiting zones with flexible seating for visitors and employees, low back maintains visual openness in open plan offices
Public lobby and waiting areas (hotels, hospitals, exhibition halls)High-durability commercial upholstery and modular construction withstand daily high-volume use, two-tone design complements modern commercial interiors
Co-working and flexible office spacesReconfigurable segments allow teams to adjust seating arrangements for small meetings, informal work sessions or events
High-end retail and showroom spacesSleek curved silhouette and two-tone fabric finish creates premium display seating for customer rest areas, fits modern luxury retail design aesthetics
Educational institution common areasRobust construction and stain-resistant fabric suit student lounge and campus public space use, modular design allows rearrangement for events or study groups
Airport and transportation waiting zonesCommercial-grade durability and easy-to-clean fabric meet high-traffic transit environment requirements, curved layout maximizes seating capacity without blocking walkways
Corporate office reception and employee lounge areasCurved modular layout creates welcoming waiting zones for 8visitors and staff, low backrest maintains visual openness in open-plan office environments
Hotel and commercial building public lobbiesHigh-abrasion contract upholstery and modular construction withstand 50000-cycle daily high-volume use, two-tone design complements modern minimalist interior aesthetics
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1021-1:2014Applicable standard for upholstered furniture ignitability by cigarette, required for commercial seating sold in EU markets
EN 12520:2015Applicable standard for furniture strength, durability and safety for non-domestic seating, defining static and fatigue load test requirements
EN 13759:2010Applicable standard for furniture hardware performance of seating connecting devices, defining load and cycle requirements for modular locking brackets
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020Applicable standard for lounge seating performance, covering static load, durability and stability requirements for commercial installations
ANSI/BIFMA e3-2019Applicable sustainability standard for furniture, providing guidance on low-emission materials and end-of-life recyclability
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB 20286-2006Applicable standard for flame retardant performance of upholstered furniture in public places, required for commercial installation in Chinese public spaces
GB/T 3324-2017Applicable general technical standard for wooden furniture frames, covering structural strength and dimensional stability requirements
GB/T 1982.1-2005Applicable standard for furniture foam performance, specifying indentation hardness and durability requirements for seating foam
GB/T 24240-2009Applicable standard for upholstered furniture seating durability, specifying static load and fatigue test requirements for commercial use
GB/T 1982.2-2005Applicable standard for polyurethane foam for furniture, defining indentation hardness, resilience and aging resistance requirements for seating foam
Standard Tender Description
This product must meet the following technical requirements:
1. GB 20286-2006: Applicable standard for flame retardant performance of upholstered furniture in public places, required for commercial installation in Chinese public spaces;
2. GB/T 3324-2017: Applicable general technical standard for wooden furniture frames, covering structural strength and dimensional stability requirements;
3. GB/T 1982.1-2005: Applicable standard for furniture foam performance, specifying indentation hardness and durability requirements for seating foam;
4. GB/T 24240-2009: Applicable standard for upholstered furniture seating durability, specifying static load and fatigue test requirements for commercial use;
5. GB/T 1982.2-2005: Applicable standard for polyurethane foam for furniture, defining indentation hardness, resilience and aging resistance requirements for seating foam;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
