Name: Ergonomic Mid-Back Mesh Swivel Office Task Chair
Brand: YUXIANG
SKU: 0E42DR

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

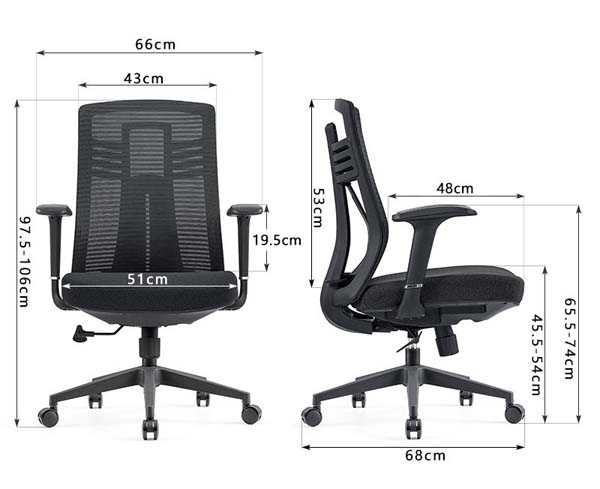

Overall dimensions (W × D × H)	660 × 680 × 1060 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Net weight (chair fully assembled)	15 kg
Gas lift height adjustment stroke	85 mm
Seat foam density	45 kg/m³
Back mesh tensile strength	1200 N
Caster rolling durability cycles	50000 cycles
Warranty period (frame and mechanism)	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support surface	Tensioned breathable woven mesh
Backrest frame	Reinforced molded black polypropylene
Seat cushion padding	High-resilience molded polyurethane foam
Seat cushion upholstery	Wear-resistant black polyester fabric
Armrest supports and pads	Fixed-height molded polypropylene with soft TPU pad top
Five-star base	Injection-molded reinforced black nylon
Gas lift cylinder	Powder-coated steel Class 3 gas lift
Tilt mechanism chassis	Stamped 2.5mm thick steel plate
Casters	Dual-wheel hard-floor nylon casters, 50mm diameter
Adjustment levers	Reinforced polypropylene paddle levers
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic 85mm stroke adjustment via left-side lever, locks at any set height
Swivel function	360-degree unrestricted rotation around central gas lift axis
Backrest tilt function	Synchronized tilt with 12-degree maximum recline, tension adjustable via rear knob
Fixed armrests	195mm fixed height above seat, non-adjustable position for forearm support
Mobility function	Five dual-wheel casters allow smooth rolling on hard and low-pile carpet floors
Lumbar support	Integrated molded lumbar contour with vertical structural slots for targeted back support
Tilt lock function	Lockable upright position via mechanism lever for fixed-seat task work
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office workstation use	Suitable for daily 8-hour task work for office employees, compact footprint fits standard workstations
Home office workspace use	Fits small home study or bedroom work areas, neutral black color matches most decor
Conference room seating	Suitable for meeting room use, swivel and tilt function supports dynamic meeting interaction
Cubicle workstation seating	660mm narrow width fits standard partitioned cubicle spaces without restricted arm movement
Reception area task seating	Durable mesh and fabric construction withstands high-traffic front-desk use
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety and performance standard	EN 1335:2020
Office chair castor durability standard	EN 12529:2010
Office chair stability standard	EN 1022:2018

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair general purpose standard	ANSI/BIFMA X2017
Caster performance standard	ANSI/BIFMA X2017Clause 13

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair structural strength standard	GB/T 10357.3
Office chair safety standard	GB 28007
Upholstered furniture formaldehyde emission limit	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair structural strength standard: GB/T 10357.3;
2. Office chair safety standard: GB 28007;
3. Upholstered furniture formaldehyde emission limit: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-MESH-MB-660

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-MESH-MB-660

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-MESH-MB-660Open Export Tool

Quick Actions

Post an RFQ

Product Description

The YUXIANG Ergonomic Mid-Back Mesh Swivel Office Task Chair (model OFC-MESH-MB-660) is a purpose-built task seating solution with a streamlined, professional neutral black finish that integrates seamlessly across a range of work environments. Its form features a contoured mid-height backrest paired with a structured seat, supported by a five-star rolling base, with fixed armrests positioned to leave open space for unrestricted arm movement in compact work areas. Built for regular daily use, the chair balances durable construction with user-centric comfort: the backrest uses a tensioned breathable woven mesh support surface set in a reinforced molded black polypropylene frame, with an integrated molded lumbar contour with vertical structural slots to deliver targeted lower back support across the full lumbar support zone. The seat is padded with high-resilience molded polyurethane foam upholstered in wear-resistant black polyester fabric, topped with fixed-height molded polypropylene armrests fitted with soft TPU pad tops for comfortable forearm support. The base is constructed from injection-molded reinforced black nylon, paired with dual-wheel hard-floor nylon casters that roll smoothly across hard flooring and low-pile carpet. Core functional hardware includes a powder-coated steel Class 3 gas lift, a stamped 2.5mm thick steel plate tilt mechanism chassis, and 360-degree unrestricted swivel around the central axis. Users can adjust seat height via a left-side lever with full pneumatic stroke that locks at any preferred height, while the synchronized backrest tilt offers a maximum recline that can be tension-adjusted via a rear knob, with a lockable upright position for focused task work. This chair suits a wide array of commercial and residential spaces: its compact footprint fits standard open-plan workstations, partitioned cubicles, and high-traffic reception areas, supporting 8 hours of daily task work for office employees, while its understated aesthetic works equally well in small home studies or bedroom work areas. Its swivel and tilt functionality also supports dynamic interaction in conference room settings, and it pairs effectively with executive desks. Procurement teams should note the chair ships in two cartons per set, with a per-unit assembly time suitable for standard office furnishing rollouts, and a 3-year warranty covering the frame and mechanism. Loading s for full container orders are available to support bulk purchase planning, and the chair’s durable material construction is suited to consistent high-use settings.

Ergonomic Mid-Back Mesh Swivel Office Task Chair Specifications
