Automatic mm / inch conversion · Core engineering specifications

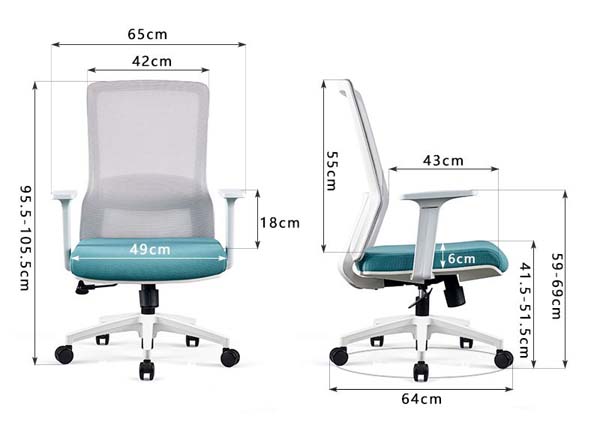

| Overall dimensions | 650 x 640 x 1055 mm | |
|---|---|---|
| Seat width | 490 mm | |
| Seat depth | 430 mm | |
| Seat height (adjusted maximum) | 515 mm | |
| Backrest height | 550 mm | |
| Armrest height above seat | 180 mm | |
| Five-star base diameter | 640 mm | |
| Seat cushion thickness | 60 mm | |
| Frame outer width between armrests | 420 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Recommended static load capacity | 200 kg | |
|---|---|---|
| Seat foam density | 45 kg/m³ | |
| Seat foam rebound rate | 45 % | |
| Fabric abrasion resistance (Martindale) | 50000 double rubs | |
| Chair net weight | 16 kg | |
| Caster rolling durability | 100000 cycles | |
| Gas lift stroke length | 100 mm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Primary frame and armrests | White fiber-reinforced PP engineering plastic | |
|---|---|---|
| Backrest upholstery | Light gray breathable woven mesh | |
| Seat upholstery | Teal woven polyester fabric over foam pad | |
| Seat core substrate | 12mm thick molded plywood pan | |
| Five-star base | White nylon reinforced plastic | |
| Casters | 60mm black dual-wheel nylon casters | |
| Gas lift cylinder | Black powder-coated steel, Class 3 rated | |
| Tilt mechanism | 2.5mm thick steel butterfly chassis with black finish | |
| Seam stitch pitch | 8 stitches per inch | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Five-star Base Material Thickness | Metal base wall 3.5 mm; diameter 700 mm |
Adjustment / rotation / tilt / mobility / storage features
| Seat height adjustment | Pneumatic gas lift with 100mm travel, activated by under-seat lever | |
|---|---|---|
| Swivel function | 360-degree full rotation around central gas lift axis | |
| Tilt function | Lockable upright position, 20-degree rearward recline with tension control | |
| Mobility | Smooth rolling on five dual-wheel casters for hard and soft floor surfaces | |
| Lumbar support | Integrated curved lumbar zone in mesh back for lower back contact | |
| Waterfall seat edge | Rounded front seat cushion edge to reduce leg pressure | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Open-plan office workstations | Slim profile and swivel function suit daily desk-based work tasks | |
|---|---|---|
| Home office study spaces | Compact footprint fits small home desk setups without excess bulk | |
| Meeting and conference rooms | Neutral colorway and fixed arms support short-to-medium meeting use | |
| Hot-desking shared workspaces | Durable casters and easy adjustment suit multi-user shared environments | |
| Small business reception work areas | Modern light frame aesthetic complements professional reception spaces | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 | Applies to office task chair dimensional safety and functional requirements | |
|---|---|---|
| EN 1335-2:2018 | Applies to office chair structural strength and stability performance | |
| EN 1335-3:2009 | Applies to office chair test methods for safety verification |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applies to general-purpose office chair safety and performance requirements |
|---|
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to office chair dimensional stability and measurement methods | |
|---|---|---|
| GB/T 10357.3-2013 | Applies to office chair mechanical strength and durability testing |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to office chair dimensional stability and measurement methods; 2. GB/T 10357.3-2013: Applies to office chair mechanical strength and durability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
