Automatic mm / inch conversion · Core engineering specifications

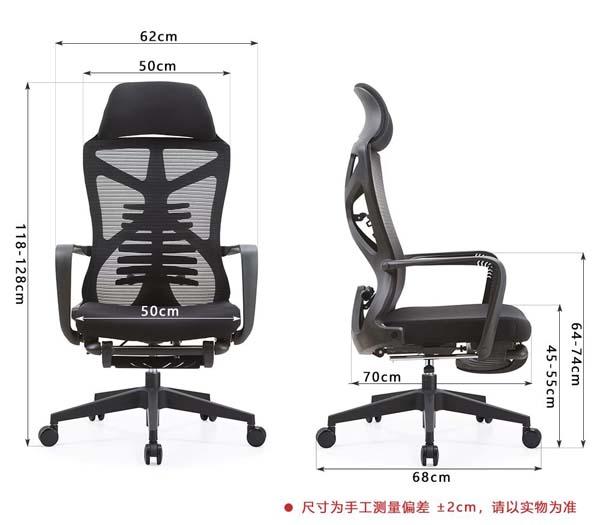

| Overall dimensions (W x D x H) | 620 x 700 x 1280 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net weight | 18 kg | |
|---|---|---|
| Maximum user weight capacity | 150 kg | |
| Seat foam density | 45 kg/m³ | |
| Seat foam thickness | 60 mm | |
| Back mesh tensile strength | 300 N/5cm | |
| Gas lift height adjustment stroke | 100 mm | |
| Caster rolling durability | 40000 cycles | |
| Recommended continuous seated duration | 8 hours | |
| Static load rating for five-star base | 1136 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Backrest support frame | Reinforced black nylon with skeleton-style lumbar support structure | |
|---|---|---|
| Backrest upholstery | Tensioned breathable polyester mesh | |
| Seat cushion core | High-resilience molded polyurethane foam | |
| Seat cushion upholstery | Black woven breathable fabric | |
| Armrests | Fixed curved black PP plastic armrests with padded top edge | |
| Chair base | Black reinforced nylon five-star base | |
| Gas lift cylinder | Carbon steel Class 3 pneumatic lift | |
| Casters | Black 50mm diameter PU swivel casters | |
| Footrest | Black PP retractable pull-out footrest | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features
| Seat height adjustment | Pneumatic 100mm vertical adjustment via side lever, locks at desired height | |
|---|---|---|
| 360-degree swivel | Full 360 degree rotational movement around central gas lift axis | |
| Backrest recline | 125 degree synchronous tilt with tension adjustment knob under seat | |
| Retractable footrest | Pull-out extendable footrest under seat, stows flush when not in use | |
| Skeleton lumbar support | Integrated contoured lumbar zones matching spine curvature for static support | |
| Fixed armrest support | Curved fixed armrests positioned to support forearms during typing | |
| Smooth mobility | Five dual-wheel casters for rolling movement on hard floors and low-pile carpet | |
| Integrated headrest | Fixed contoured headrest for upper neck and head support during recline | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Private office workspace | Suited for executive or individual workstations requiring full-shift back support | |
|---|---|---|
| Home office setup | Fits residential work areas for remote work and long study sessions | |
| Open plan office seating | Appropriate for shared workstations in corporate open office environments | |
| Gaming or leisure use | Suitable for seated leisure activities with recline and footrest for relaxation | |
| Conference room seating | Usable in meeting rooms for extended discussion sessions with support | |
| Hot-desking environments | Mobile swivel design supports flexible shared desk use across teams | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 | Applies to office chair dimensional and safety performance requirements | |
|---|---|---|
| EN 1335-2:2018 | Applies to structural stability and load testing requirements | |
| EN 1335-3:2009 | Applies to surface finish and component durability testing |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applies to general purpose office chair safety and performance testing |
|---|
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to office chair dimensional tolerance verification for stability | |
|---|---|---|
| GB 28007-2011 | Applies to static load, durability and safety performance requirements | |
| GB/T 35607-2017 | Applies to limit of harmful substances in furniture upholstery materials |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to office chair dimensional tolerance verification for stability; 2. GB 28007-2011: Applies to static load, durability and safety performance requirements; 3. GB/T 35607-2017: Applies to limit of harmful substances in furniture upholstery materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
