Automatic mm / inch conversion · Core engineering specifications

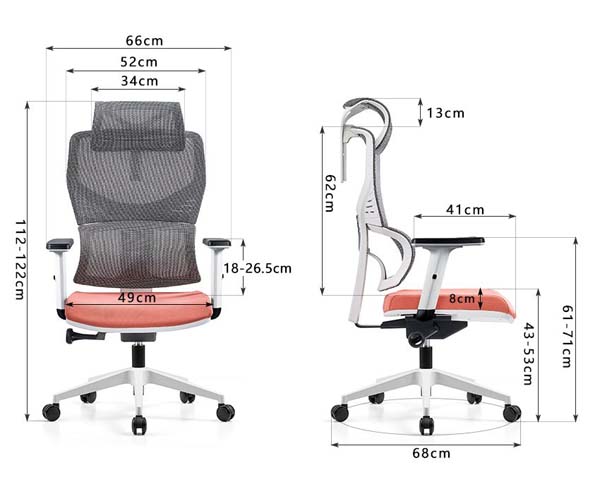

| Overall dimensions | 660 x 680 x 1220 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Recommended user weight capacity | 150 kg | |
|---|---|---|
| Net weight | 22 kg | |
| Gas lift class rating | 3 | |
| Caster rolling durability cycles | 100000 | |
| Backrest recline angle | 120 degrees | |
| Seat static load test capacity | 160 kg | |
| Frame static load capacity | 136 kg | |
| Adjustable seat height travel | 100 mm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Backrest upholstery | Tensioned polyester mesh | |
|---|---|---|
| Seat cushion core | 45kg/m³ density molded polyurethane foam | |
| Seat upholstery | Wear-resistant polyester fabric | |
| Support frame and base | White powder-coated die-cast aluminum | |
| Armrest pads | Soft-touch polyurethane over hard plastic cap | |
| Gas lift cylinder | 100mm diameter chrome-plated steel | |
| Tilt mechanism chassis | 2.5mm thick cold-rolled steel | |
| Casters | 60mm diameter black polyurethane dual-wheel casters | |
| Headrest frame | Injection-molded white polypropylene | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Five-star Base Material Thickness | Metal base wall 3.5 mm; diameter 700 mm |
Adjustment / rotation / tilt / mobility / storage features
| Seat height adjustment | Pneumatic gas lift, 100mm vertical travel | |
|---|---|---|
| Height-adjustable armrests | 85mm vertical travel, lockable at top position | |
| Synchronized tilt function | 120 degree backrest recline with seat tilt | |
| Tilt tension adjustment | Knob-controlled spring tension under seat | |
| 360-degree swivel rotation | Full rotation around central gas lift axis | |
| Adjustable headrest | 130mm vertical travel height | |
| Integrated coat hanger | Curved hook at top of backrest frame | |
| Smooth rolling movement | Dual-wheel casters on five-star base | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Open plan office workstations | Supports 8-hour daily seated work for office staff, ergonomic adjustability | |
|---|---|---|
| Executive private offices | High-back support and premium appearance for managerial workspaces | |
| Home office studies | Adjustable dimensions suit multi-user home work environments | |
| Meeting and conference rooms | Swivel and mobility support quick collaboration around tables | |
| Co-working space desks | Durable construction fits rotating daily use by multiple users | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 | Applies to dimensional safety requirements for office work chairs | |
|---|---|---|
| EN 1335-2:2018 | Applies to strength, durability and stability requirements | |
| EN 1022:2018 | Applies to stability testing for domestic and contract seating |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applies to general purpose office chair performance and safety tests | |
|---|---|---|
| ANSI/BIFMA X5.11-2015 | Applies to load rating requirements for bariatric office seating |
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to dimensional measurement requirements for office seating | |
|---|---|---|
| GB/T 3324-2017 | Applies to general technical requirements for metal-framed office furniture | |
| GB 18584-2001 | Applies to formaldehyde emission limits for interior furniture materials |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to dimensional measurement requirements for office seating; 2. GB/T 3324-2017: Applies to general technical requirements for metal-framed office furniture; 3. GB 18584-2001: Applies to formaldehyde emission limits for interior furniture materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
