Name: Ergonomic High-Back Mesh Office Chair with Adjustable Headrest
Brand: YUXIANG
SKU: 9VJYPJ

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

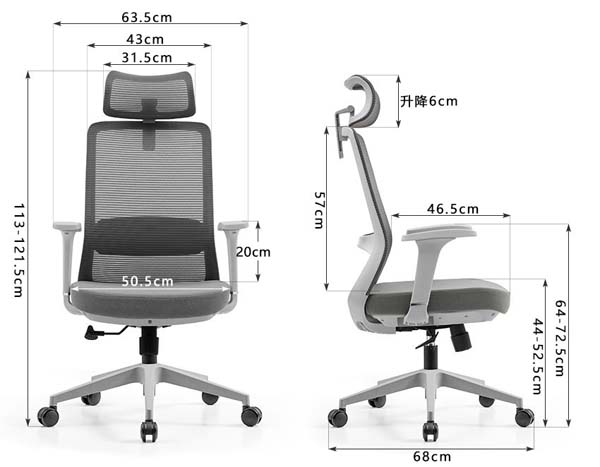

Overall dimensions (W × D × H)	635 × 680 × 1215 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	20 kg
Maximum user weight capacity	150 kg
Gas lift class rating	Class 3
Caster rolling durability	100000 cycles
Backrest recline angle	125 degrees
Seat foam density	45 kg/m³
Mesh back abrasion resistance	50000 double rubs
Recommended daily usage duration	8 hours
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable polyester elastic mesh
Seat cushion	Molded high-resilience polyurethane foam with fabric cover
Lumbar support pad	Molded foam integrated into lower mesh back
Structural frame	Glass-fiber reinforced nylon
Five-star base	Reinforced nylon with matte gray finish
Armrest pads	Soft polyurethane padded surface
Height adjustment gas lift	Powder-coated steel with black finish
Tilt mechanism	Stamped steel synchro-tilt chassis
Casters	Black polyurethane swivel casters
Headrest cushion	Mesh-covered padded foam
Control levers	Nylon height and tilt adjustment levers
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat height adjustment via right-side lever, 85 mm travel
Headrest adjustment	Vertical sliding headrest with 60 mm travel, curved contour
Recline function	Synchro-tilt mechanism locks at 3 positions, 125 degree maximum tilt
360-degree swivel	Full rotational swivel around central gas lift axis
Rolling mobility	Five dual-wheel casters enable smooth movement on hard floors and low-pile carpet
Lumbar support	Integrated contoured lumbar zone built into lower mesh back
Fixed armrests	Rigid height-matched armrests support forearm weight during typing
Tilt tension control	Rotary knob under seat adjusts recline resistance to match user weight
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Shipping carton dimensions	660 x 340 x 650 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Ergonomic support for 8-hour daily shift use for general office staff
Home office setups	Compact footprint fits standard home desk spaces for remote workers
Executive private offices	Professional gray mesh aesthetic matches premium desk configurations
Conference meeting rooms	Swivel and rolling function supports easy movement around meeting tables
Co-working spaces	Durable construction withstands frequent multi-user daily use
Height-adjustable desk setups	Seat height range pairs with sit-stand desks for ergonomic posture alignment
Task work zones	Breathable mesh back reduces heat buildup during focused task work
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applies to dimensional safety and performance requirements for office work chairs
EN 1335-2:2018	Applies to structural strength and durability test methods for office chairs
EN 1021-1:2014	Applies to flammability resistance requirements for upholstered seating components

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applies to general-purpose office chair structural performance and safety testing
ANSI/BIFMA X5.11-2015	Applies to heavy-user weight capacity testing for office seating products
Seat static load capacity	1136 kg

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applies to size measurement and dimensional tolerances for office seating products
GB 28007-2011	Applies to general safety requirements for child and adult office seating furniture
GB/T 39600-2021	Applies to formaldehyde emission limits for furniture components used in office spaces

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to size measurement and dimensional tolerances for office seating products;
2. GB 28007-2011: Applies to general safety requirements for child and adult office seating furniture;
3. GB/T 39600-2021: Applies to formaldehyde emission limits for furniture components used in office spaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OF-ERG-MESH-0635

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OF-ERG-MESH-0635

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OF-ERG-MESH-0635Open Export Tool

Quick Actions

Post an RFQ

Product Description

The YUXIANG Ergonomic High-Back Mesh Office Chair, model OF-ERG-MESH-0635, delivers balanced ergonomic support and streamlined professional styling for a range of work environments. Its visual design features a structured high-back profile with matte gray reinforced nylon five-star base, complemented by breathable black mesh backrest and neutral fabric seat upholstery that fits seamlessly with both modern commercial and residential workspaces. The layout integrates a curved, vertically adjustable headrest, fixed height-matched armrests with soft polyurethane padding, and a contoured integrated lumbar zone positioned in the lower backrest, creating a cohesive silhouette that balances comfort and understated professional appeal.
Construction prioritizes durability and long-term use: the structural frame uses glass-fiber reinforced nylon, paired with a stamped steel synchro-tilt chassis and powder-coated black steel Class 3 gas lift for core stability. The backrest is upholstered in breathable polyester elastic mesh, with a molded foam lumbar pad integrated directly into the lower mesh section, while the seat uses molded high-resilience polyurethane foam with fabric cover. Black polyurethane swivel casters mount to the five-star base, supporting smooth movement across hard floors and low-pile carpet.
Functional features are tailored for extended work sessions: pneumatic seat height adjustment operates via a right-side lever, with enough travel to align with sit-stand desk configurations. The curved headrest slides vertically to support neck positioning, while the synchro-tilt mechanism locks at three positions with a maximum 125-degree backrest recline. Full 360-degree swivel and smooth rolling casters support easy repositioning, while the fixed armrests cradle forearms during typing tasks to reduce upper body strain. The integrated lumbar zone delivers consistent lower back support suited for 8-hour daily use.
This chair fits a broad range of spaces: open-plan office workstations for general staff, home office setups with standard desk dimensions, executive private offices paired with premium desk configurations, conference rooms where flexible movement around meeting tables is needed, high-traffic co-working spaces, and setups paired with height-adjustable desks. For procurement teams, key considerations include noting that each unit ships across two cartons, with a packaged weight of 23 kg per set and reference assembly time of 40 minutes per unit. The chair supports a maximum user weight of 150 kg, with durable materials rated to withstand frequent multi-user daily use.

Ergonomic High-Back Mesh Office Chair with Adjustable Headrest Specifications
